System Configuration (Example)

The following figure illustrates the interface connections of the LogicSP control box in a typical
application. Once more, the LiftBox™ system has been used as an example.
Components:
1. LogicSP-2-2 control box
2. Built-In Handset (Custom LOGICDATA Handset for LiftBox™ in this example)
3. Motor drive for up/down movement (integrated in the lifting column)
4. Motor drive for right/left rotation
5. Squeeze-Line for pinch-protection during downwards movement
6. TV Power Cable

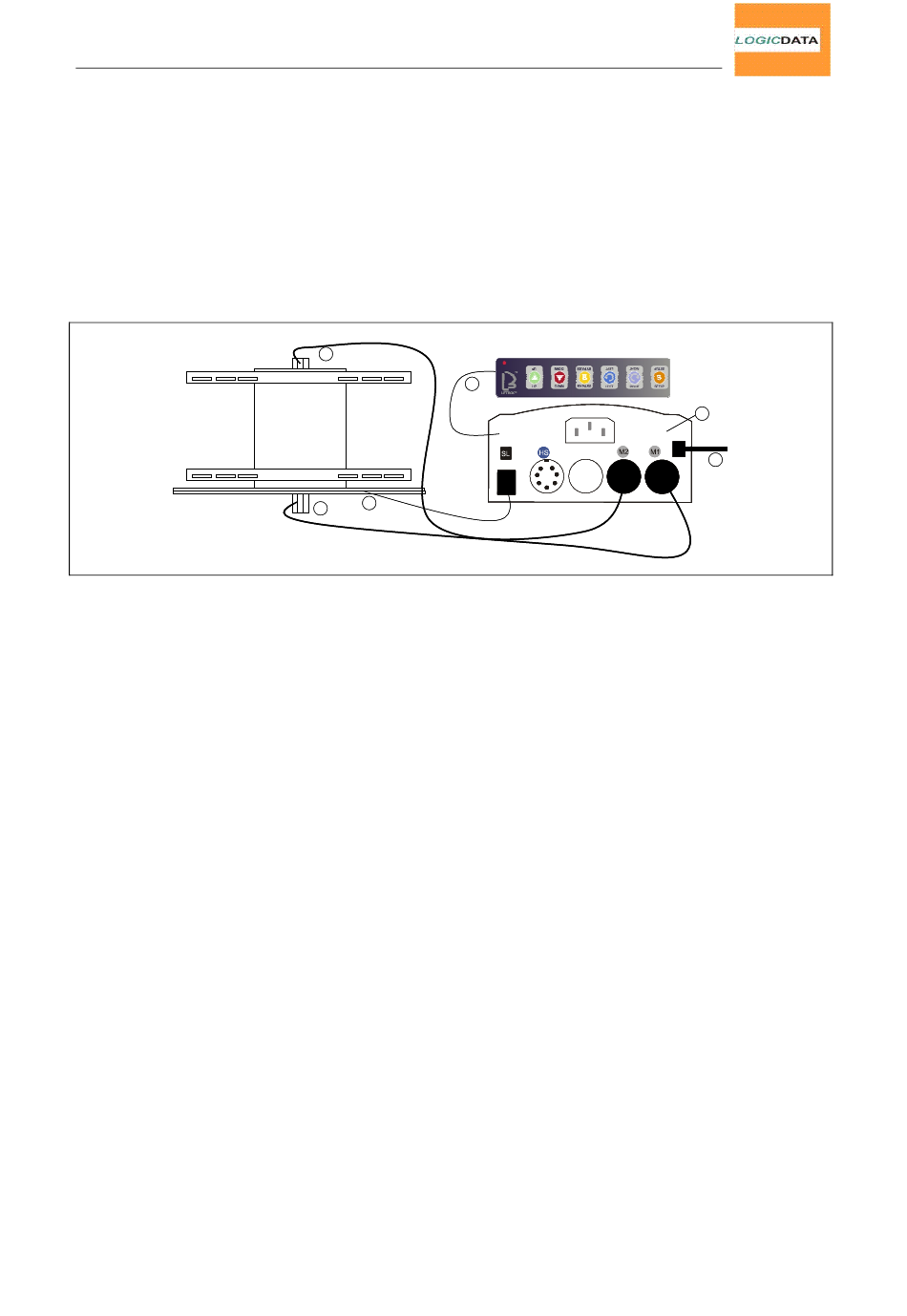

Fig. 10 – Example Configuration
Note that the TV (and hence the connection between the TV and (6)) is not shown in this example
because it would obscure the carrier.
Since the LogicSP control box can be remote-controlled and there is a custom foil-handset shown in
this example, the HS port is unused.
