User Manual
LogicS-2 / LogicS-3

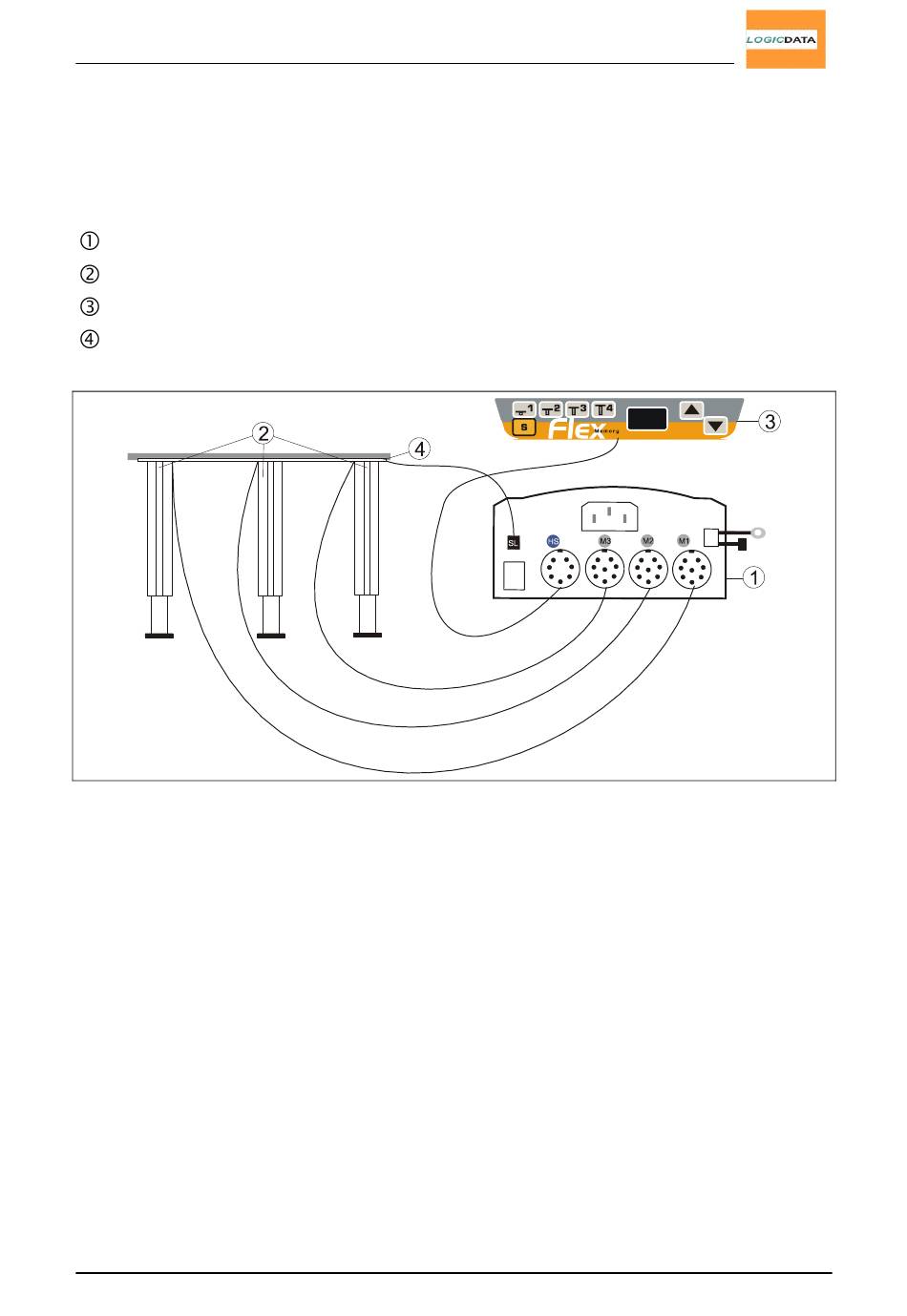

3.2.5. System Configuration (Example)
The following figure illustrates the interface connections of an example
configuration. This example configuration consists of:
1 LogicS-3 control box
3 Motor drives (hidden in the table-legs)
Handset HSU-MDF-4F2-LD
1 Squeeze line
Fig.9 – Example Configuration
Page 15/33
