NCR-86 with Bindisc

STEP 1

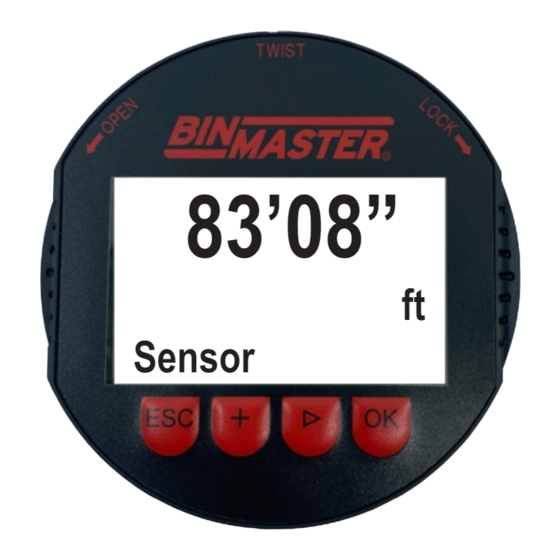

> Place Bindisc on NCR-86, line up tabs. Attaches with a
quarter-twist. Wait for Bindisc to power on displaying distance value.
> Press OK button to enter the menu
> If this is the first time Bindisc is attached, you will need to pick
English as a language.
> Use the arrow button to move down in the menu and press OK.

STEP 2

> This brings up the main menu press OK again to enter the Setup menu (a) Select measurement loop name (b). Select
Type of medium (c). Select Liquids or Bulk Solids (d).
a.
Setup
Access protection
Reset
Extended settings
Diagnostics
STEP 3 - Press ESC (a) to go back to the Setup menu. Select vessel height (b) change to overall height of the vessel in-
cluding the height of any cone or standoff pipe on the vessel, use the + button to increment the number under the cursor
up one digit at a time and the > button to select the character that needs to be changed (c).
a.
Setup
Type of medium
Application
Vessel height
Distance A (max value)
Distance B (min value)
STEP 4 - Press ESC to go back to the Setup menu and go to Distance A. Set this to the distance from the lens of the sensor
down to the level of product that is considered full. In solids applications, this is usually at least 2 ft. At this distance the
sensor will output 20mA.
STEP 5 - Press ESC and go to Distance B. Set this to the distance from the sensor lens to where the silo is considered
empty, this is commonly the same value as the Vessel height setting. When the distance measured equals this distance the
sensor will output 4mA.
STEP 6 - Press ESC until the distance measurement appear on the screen
Basic Setup Complete!
QUICK SETUP GUIDE
b.
Setup
Measurement loop name
Distance unit
Type of medium
Application
Vessel height
b.
Vessel height
98.42 ft
83'08"
ft
Sensor
c.
Setup
Measurement loop name
Distance unit
Type of medium
Application
Vessel height
c.
Vessel height
0
98.42
0.00
393.70
927-0344 NCR-86 QUICK SETUP - BINDISC
d.
Type of medium
Liquids
Bulk solid
