Summary of Contents for BINMASTER BMRX-100

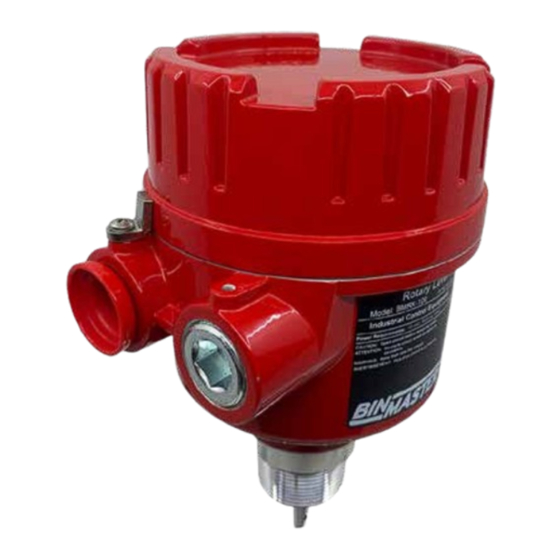

- Page 1 BMRX-100 Rotary Level Indicator OPERATING INSTRUCTIONS PLEASE READ CAREFULLY BinMaster: Division of Garner Industries 7201 N. 98th St. Lincoln, NE 68507 402-434-9102 info@binmaster.com | www.binmaster.com 925-0415...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL SPECIFICATIONS .................... 3 SAFETY SUMMARY ......................4 1.0 INTRODUCTION ......................5 2.0 INSTALLATION ......................5 2.1 Location and Mounting ................5 2.2 Input Power and Field Wiring ..............7 2.3 Grounding ....................7 3.0 SPDT INDICATOR SWITCH ..................7 4.0 WARRANTY AND CUSTOMER SERVICE .............. -
Page 3: General Specifications
SPECIFICATIONS BMRX-100 GENERAL SPECIFICATIONS Power Supply: 115 VAC 50/60 Hz 230 VAC 50/60Hz 24 VAC 50/60Hz Supply Tolerance: -15% to +10% Load: AC Models 4 VA Ambient Temperature: (Electronics) -40° F to +185° F (-40° C to +85° C) Enclosure Type:... -
Page 4: Safety Summary
SAFETY SAFETY SUMMARY Review the safety precautions to avoid injury and prevent damage to equipment. The product should be installed, commissioned, and maintained by qualified, authorized personnel only. Install according to instructions and comply with all National and Local codes. Use electrical wire that is sized and rated for the maximum voltage and current of the appli- cation. -
Page 5: Introduction
The BMRX-100 motor rotates the drive shaft and paddle at 1 RPM (0.833 RPM at 50Hz). When the material fills to the level of the indicator paddle, it causes the paddle to stop rotat- ing indicating a covered condition. - Page 6 2.0 INSTALLATION 2.1 Location and Mounting TOP MOUNT 1. Determine mounting location and cut a hole in top of bin to fit outside diameter of 1-1/4” pipe coupling (1.950”). 2. Position coupling halfway into bin and weld to bin. 3. Turn rotary so conduit openings are in desired location. 4.
- Page 7 MOUNTING ORIENTATION (Side Mount) To prevent moisture or humidity from entering the unit, the rotary MUST be mounted with the conduit entries facing down. Conduit Seal When installing the rotary in environments where moisture or moist air may enter the unit through the electrical conduit, the conduit openings should be sealed with an appropriate duct seal compound or putty.
-
Page 8: Input Power And Field Wiring
2.2 Input Power and Field Wiring The BMRX-100 is available in 115 VAC, 230 VAC, and 24 VAC supply voltages. See the volt- age rating on the nameplate for the supply voltage. Field wiring should conform to all national and local electrical codes and codes of any other agency or authority with jurisdiction over the installation. -
Page 9: Warranty And Customer Service
Buyer, are expressly excluded from Seller’s Limited Product Warranty. 4.2 Customer Service BinMaster's toll-free Customer Service phone number is 1-800-278-4241. Call the Techni- cal Service Department for support Monday through Friday from 8:00 AM to 5:00 PM Cen- tral Time. International customers call 1-402-434-9102 or techsupport@binmaster.com. - Page 10 BinMaster: Division of Garner Industries 7201 N. 98th St. Lincoln, NE 68507 402-434-9102 info@binmaster.com | www.binmaster.com 925-0415 0823...
