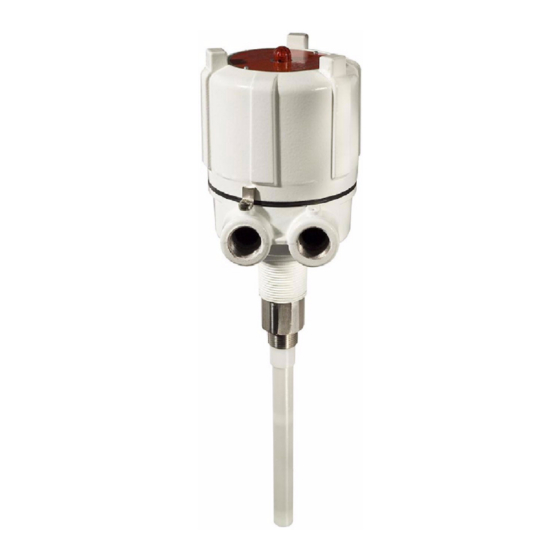

PROCAP I BinMaster
Advertisement
Table of Contents
Related Manuals for BINMASTER PROCAP I Series
Summary of Contents for BINMASTER PROCAP I Series
- Page 1 Тюмень (3452)66‐21‐18 Казань (843)206‐01‐48 Орел (4862)44‐53‐42 Ульяновск (8422)24‐23‐59 Калининград (4012)72‐03‐81 Оренбург (3532)37‐68‐04 Уфа (347)229‐48‐12 Калуга (4842)92‐23‐67 Пенза (8412)22‐31‐16 Челябинск (351)202‐03‐61 Кемерово (3842)65‐04‐62 Пермь (342)205‐81‐47 Череповец (8202)49‐02‐64 Киров (8332)68‐02‐04 Ростов‐на‐Дону (863)308‐18‐15 Ярославль (4852)69‐52‐93 Единый адрес: bta@nt-rt.ru Веб‐сайт: www.binmaster.nt-rt.ru PROCAP I BinMaster...
- Page 2 Price $5.00 PROCAP I Series CAPACITANCE PROBE OPERATING INSTRUCTIONS PLEASE READ CAREFULLY 9250290 Rev A...
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL SPECIFICATIONS ....................3 SAFETY SUMMARY........................4 1.0 INTRODUCTION........................5 2.0 APPLICATIONS ........................5 3.0 INSTALLATION ........................5 3.1 Location and Mounting .................... 5 3.2 Input Power and Field Wiring .................. 5 3.3 Grounding........................ 6 4.0 FAIL-SAFE SELECTION ...................... 7 4.1 Description ...................... -
Page 4: General Specifications
PROCAP I X Type 4X, 5, 7, 9, & 12 (HAZ LOC CL I C&D; CL II E,F, & G) Fuse F1: 0.4A 250V Time Delay 5 X 20MM BinMaster P/N 328-0064 Relay Contact Rating: DPDT contacts; 10 Amps 250 VAC maximum Fail-Safe: Switch selectable "High"... -
Page 5: Safety Summary
SAFETY SUMMARY Review the following safety precautions to avoid injury and prevent damage to the equipment. The product should be installed, commissioned, and maintained by qualified and authorized personnel only. Install according to installation instructions and comply with all National and Local codes. Use electrical wire that is sized and rated for the maximum voltage and current of the application. -
Page 6: Introduction
For electrically conductive material, in some applications, a coated (insulated) probe may need be used for the unit to effectively sense the material. Contact BinMaster if there are any questions about which probe to use for a specific application. -
Page 7: Grounding
INTERNAL DELAY COVERED COARSE FINE UNCOVERED COVERED EXTERNAL COVERED LED FUSE Ground wire Grounding An equipment grounding connection (earth ground) must be supplied to the unit for safety and to insure proper operation of the unit. A green ground screw is provided in the enclosure for connection of an equip- ment grounding conductor as shown in the figure above. -
Page 8: Fail-Safe Selection
FAIL-SAFE SELECTION Description A Fail-Safe condition means that the relay contact positions are set up so that in the event of a power fail- ure the relay will be de-energized and the contacts will indicate a condition that is deemed safe for the application. -
Page 9: Calibration
CALIBRATION The PROCAP I Quick Set calibration uses two single turn potentiometers making calibration very simple. One potentiometer labeled COARSE is used to compensate for the capacitance of the empty vessel. The other potentiometer labeled FINE is used to set in the desired sensitivity. Refer to FIGURE 2.1 for the location of these potentiometers on the printed circuit board. -
Page 10: External View Led
EXTERNAL VIEW LED PROCAP I models include an external view LED. PROCAP I X models do not have an external view LED. This LED provides an externally visible status indication for the PROCAP I. When this LED is flashing, it indicates a normal Uncovered condition. -
Page 11: Warranty And Customer Service
WARRANTY AND CUSTOMER SERVICE Limited Warranty The manufacturer warrants this equipment for two (2) years according to the following terms: This warranty extends to the original purchaser only and commences on the date of original purchase. The original purchaser must mail to the manufacturer the "Warranty Registration"... - Page 12 When the PROCAP I is used for liquid applications the stainless steel threads must be used to insure a proper seal. 925-0290 Rev A...
- Page 13 925-0290 Rev A...
- Page 14 TIME DELAY COARSE POT. POT. FINE POT. FAIL SAFE SWITCH FIGURE 2.1 9250290 Rev A...
-
Page 15: Declaration Of Conformity
Declaration of Conformity BinMaster declares that the PROCAP I and PROCAP IX level control devices as listed below comply with the following directives and harmonized standards. This product if installed, operated and maintained as described in this manual will provide a safe and reliable point level control device for bulk solid materials. - Page 16 Mounting Instructions Always Mount Unit With Conduit opening down Conduit Seal When installing this level indicator in environments where it is possible for moisture or moist air to enter the enclosure through the electrical conduit, the conduit opening should be sealed with a duct seal compound or putty appropriate for the purpose.
- Page 17 Ижевск (3412)26‐03‐58 Новосибирск (383)227‐86‐73 Тюмень (3452)66‐21‐18 Казань (843)206‐01‐48 Орел (4862)44‐53‐42 Ульяновск (8422)24‐23‐59 Калининград (4012)72‐03‐81 Оренбург (3532)37‐68‐04 Уфа (347)229‐48‐12 Калуга (4842)92‐23‐67 Пенза (8412)22‐31‐16 Челябинск (351)202‐03‐61 Кемерово (3842)65‐04‐62 Пермь (342)205‐81‐47 Череповец (8202)49‐02‐64 Киров (8332)68‐02‐04 Ростов‐на‐Дону (863)308‐18‐15 Ярославль (4852)69‐52‐93 Единый адрес: bta@nt-rt.ru Веб‐сайт: www.binmaster.nt-rt.ru...
