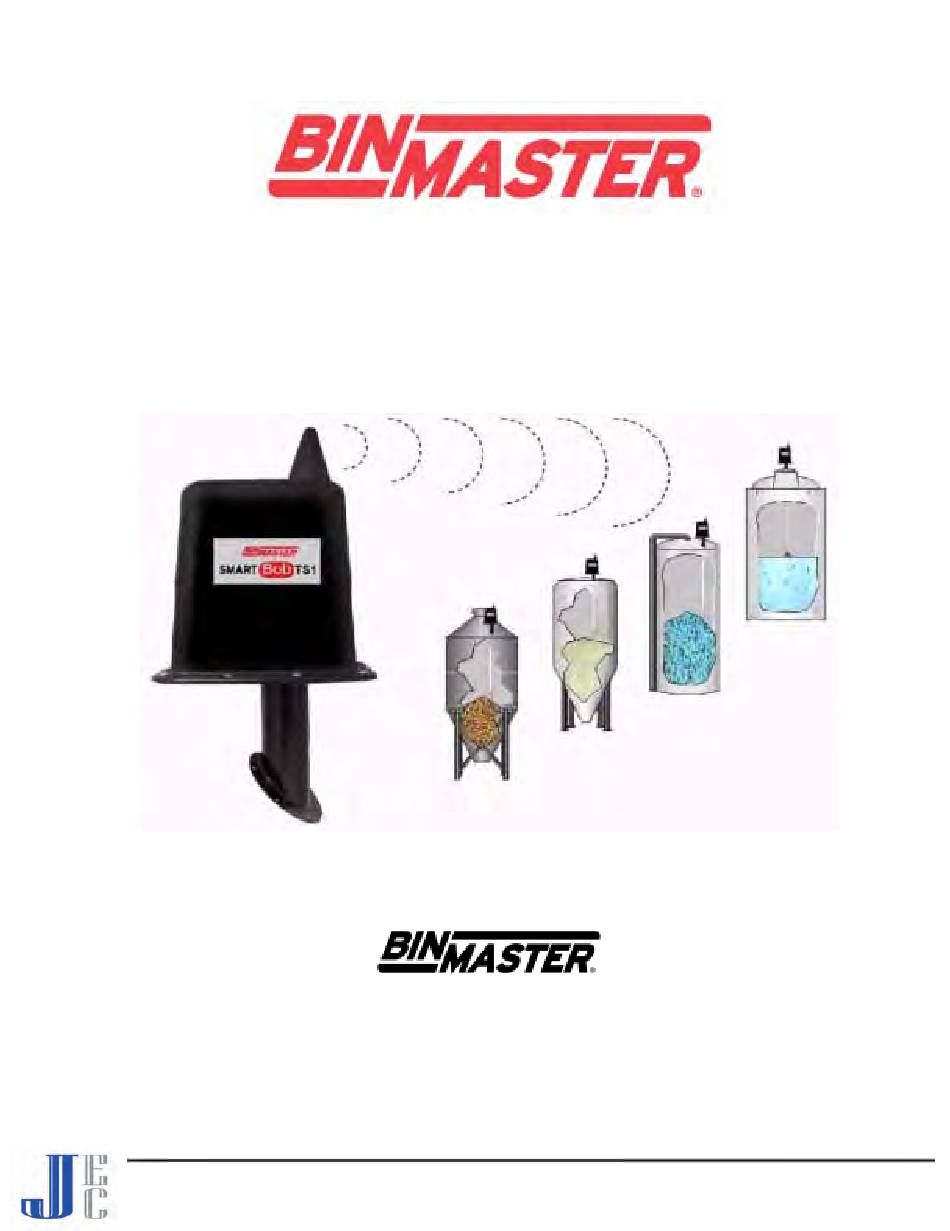

- Page 1 SMARTBOB REMOTE UNIT SMARTBOB REMOTE UNIT SMARTBOB REMOTE UNIT SMARTBOB REMOTE UNIT INSTALLATION and OPERATING INSTRUCTIONS PLEASE READ CAREFULLY Jamieson Equipment Company www.jamiesonequipment.com toll free 800.875.0280...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 1.0 INTRODUCTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 2.0 INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 2.1 LOCATION AND MOUNTING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4... -
Page 3: Specifications
SMARTBOB TS1 SPECIFICATIONS Power Requirements: - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 115 VAC 60 Hz... -
Page 4: Introduction
1.0 INTRODUCTION The BinMaster SmartBob TS1 ia a remote on demand level measurement sensing unit. It is designed to communicate with a personal computer running BinMaster e-Bob or IMS software, or a Bin Master SBC, SBC-A, or RSU control unit. Communication can be either over a hard wired RS-485 network or wireless using an optional built-in wireless modem. -
Page 5: Power Wiring
“LINE” conductor connected to the terminal on the left. The terminal on the left wires through the fuse to the transformer. A green ground screw is provided in the SmartBob TS1 for electrically grounding the unit. A good Electrical ground must be connected to the TS1 for safety and to bleed off any static electrical charges that might built up in the TS1. -
Page 6: Rs-485 Network Biasing And Termination
Therefore, a cable from the computer interface will be terminated at the interface unit and at the last TS1 on the network. The BinMaster RS 232 to 485 inter- face unit will have its internal NTR jumper ON and the last TS1 on the network will have its TERM switch ON. -
Page 7: Wireless Modem
FIGURE 4a -- WIRED RS 485 FROM COMPUTER TO TS1 UNITS RS 485 CONVERTER FIGURE 4b -- WIRELESS FROM COMPUTER TO ONE TS1 WITH A RADIO MODULE, WIRED RS 485 TO OTHER TS1’s WITHOUT RADIO MODULES TS1 with RADIO MODULE TS1 without RADIO MODULE TS1 without RADIO MODULE NOTE: There can be only one TS1 unit having a wireless modem connected to each wired RS-485 net-... -
Page 8: Setting The Address Switch
2.6 SETTING THE ADDRESS SWITCH Each TS1 has an ADDRESS switch located on its circuit board. An address which corresponds to that in the computer controlling software or other controlling device must be set on this switch. The address set by this switch is in binary and the value of each switch lever is printed on the TS1 circuit board above the switch. - Page 9 BIN ADDRESS DIP SWITCHES DIP SWITCH SETTING DIP SWITCH SETTING ADDRESS ADDRESS Jamieson Equipment Company www.jamiesonequipment.com toll free 800.875.0280...
-
Page 10: External Override
2.7 EXTERNAL OVERRIDE This feature can be used to prohibit measurements during a vessel filling cycle. The IMS software will notify the user that a measurement cannot be taken while a filling operation is in progress. Located on the SmartBob circuit board (just below the RS-485 terminals), is the terminal block labeled OVERRIDE. -
Page 11: Testing The Remote Operation
3.0 TESTING THE REMOTE OPERATION 3.1 TS1 MANUAL CYCLE AND RETRACT SWITCHES The TS1 circuit board contains several push switches which allow certain manual opera- tions of the unit. The function of each push button switch is described below. CYCLE Momentarily pushing this button starts a measurement cycle. -
Page 12: Troubleshooting
This warranty is in lieu of all other warranties, expressed or implied. 4.2 CUSTOMER SERVICE BinMaster offers a toll-free Customer Service phone number, 800 278-4241. You may call the Customer Service Department for technical and application assistance Monday through Friday from 8:00 AM to 5:00 PM Central Time. International customers call us at (402) 434-9102 or reach us via Fax at (402) 434-9133. -
Page 13: Cable Replacement Instructions
Cable Replacement Instructions Nylon Cable Supply Pulley Idler Pulley Timing Pulley Idler Pulley Remove the Bob and discard the old nylon cable. Tie a knot 18” from the end of the cable. This will keep from paying out all of the cable in the event the unit is lowered into a empty vessel. -
Page 14: Limiting The Nylon Cable Length
Limiting the Nylon Cable Length It is important to limit the length of the cable on the TS1 remote, so that the bob is not lowered into an airlock, screw conveyor or any other area that the Bob might become trapped in. -
Page 15: Bob Assembly Instructions
Bob Assembly Instructions (With Nylon Cable) Teflon Ball Sleeve Pipe Fitting Rubber Ball O’ring Washer Knot Washer Knot Digestible Bottle Spherical Float This Bob is designed for granular material This Bob is a hollow 5” sphere made of with a density from 20 lbs. per cubic foot stainless steel and is designed for bulk and greater. -
Page 16: Smartbob Remote Mounting Template
SmartBob Remote Mounting Template 5/16 Diameter Through Hole 6 Holes Equally Spaced 4 1/4 Diameter Cutout 5 1/8 Diameter Bolt Hole Circle Jamieson Equipment Company www.jamiesonequipment.com toll free 800.875.0280... - Page 17 SmartBob Remote Mounting Template 7.00 inch Bolt Circle 5/16 Diameter Through Hole 6 holes equally spaced on a 7.00 Bolt Circle 4 1/2 Diameter Cutout 7.00 Diameter Bolt Hole Circle Jamieson Equipment Company www.jamiesonequipment.com toll free 800.875.0280...
