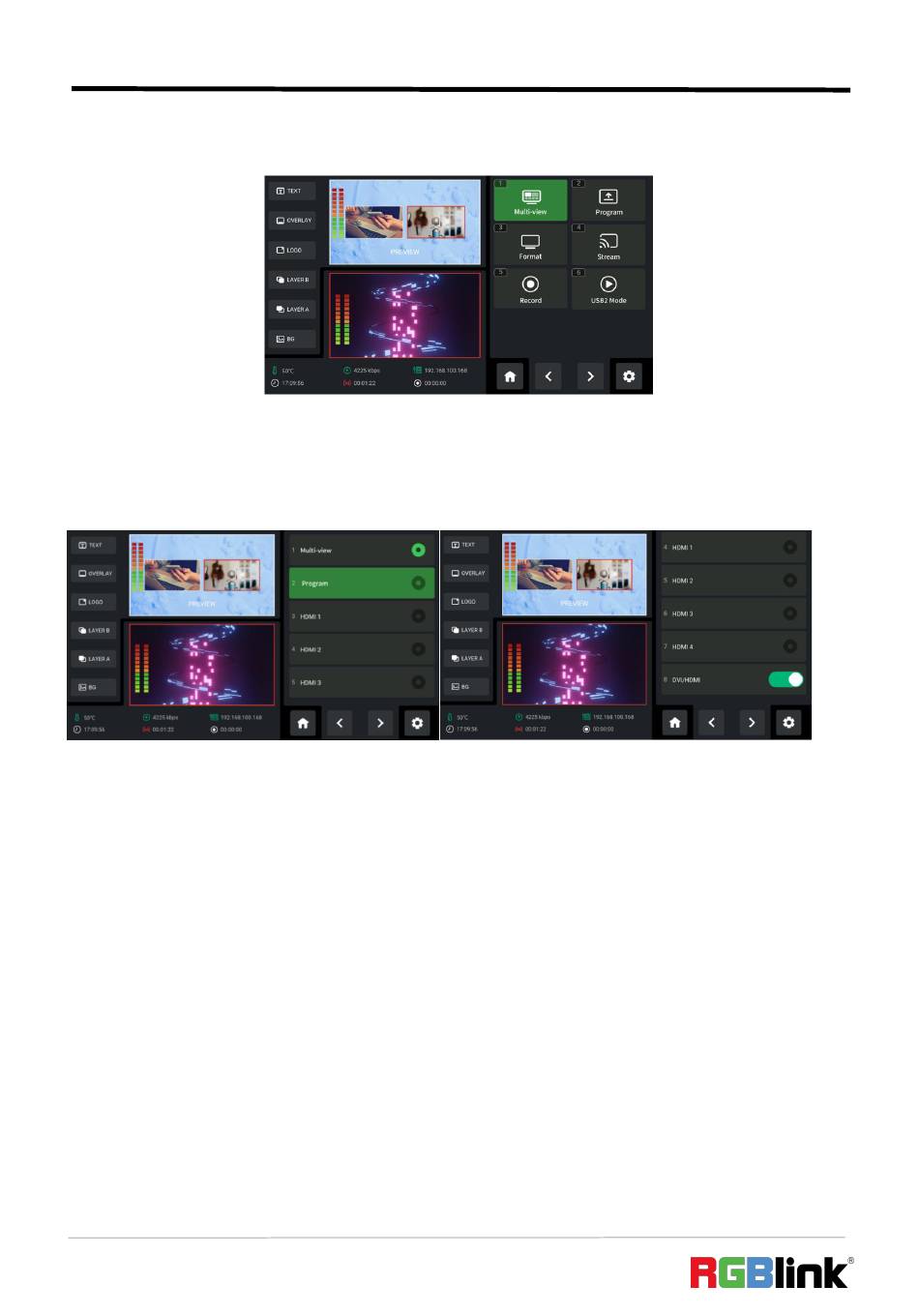

Choose【OUTPUT】in MENU to set parameters for video output.

3.9.1 Multi-view

Choose Multi-view to set parameters.
Default to be Multi-view preview, which can be switched to Program，Test Pattern or 1~4 HDMI
inputs for various applications.
DVI/HDMI is turned on by default for connecting multiple display devices simultaneously. For
example, DVI is generally used to adapt LED control cards (sending cards) and displays with DVI
input interfaces, while HDMI is generally used to adapt displays with HDMI input interfaces.
Turn on DVI/HDMI, mini-edge can adapt to different types of display devices.
Users can return to Editing Interface to check input source preview on the touch screen.

3.9.2 Program

Choose Program to set parameters.
