3.5.3 Adding Layer A

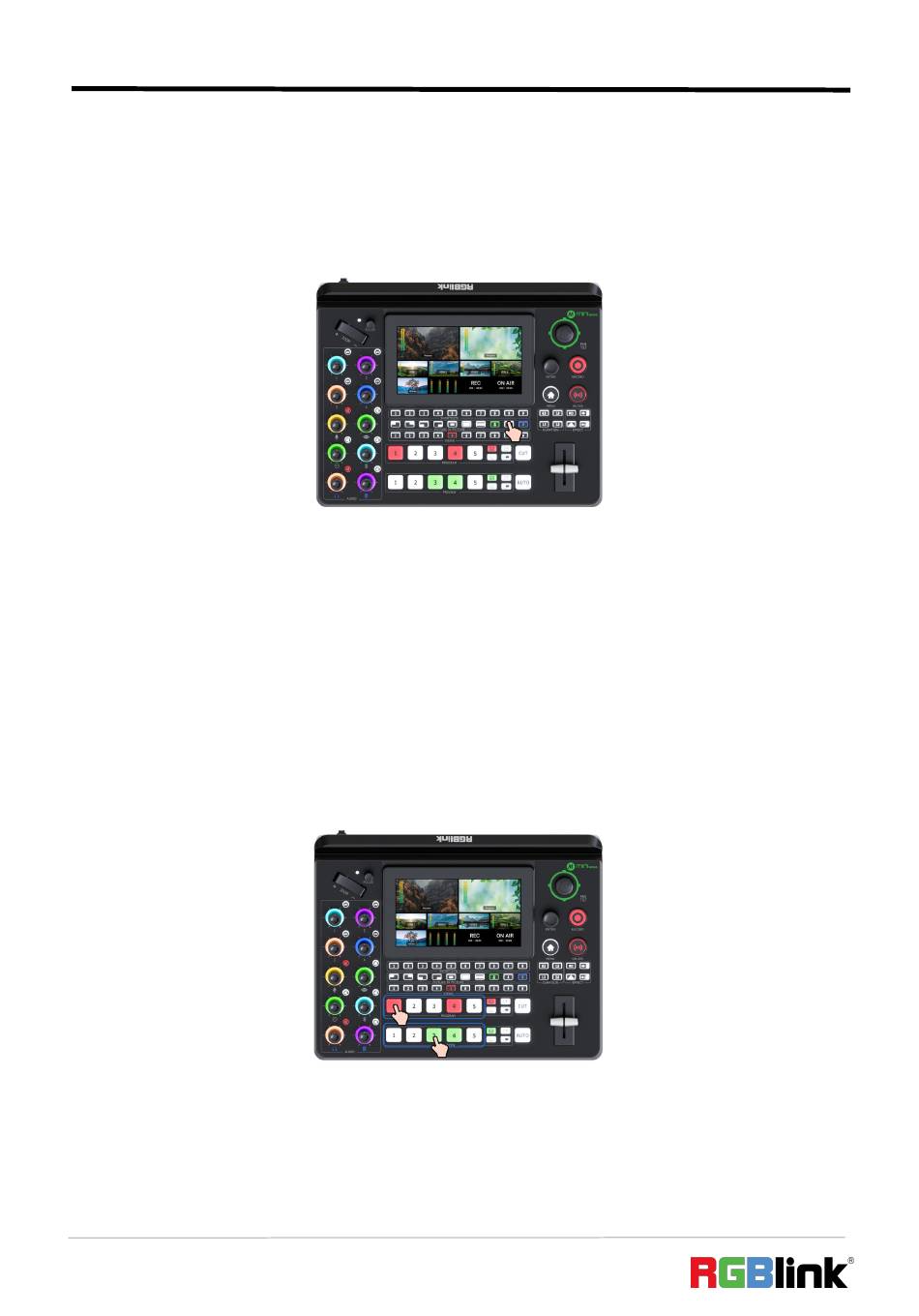

1. Push Layer A Button on the front panel to edit Layer A. This operation simultaneously enables
Layer A.
2. Preview Source row is for selecting the signal source for preview. Program Source row is for
selecting the signal source for program.
Press 1~5 number buttons along the Preview Source row to select an input source for previewing
and the selected PVW button will be illuminated Green.
Press 1~5 number buttons along the Program Source row to add it to the PGM view and the
selected PGM button will be illuminated Red.
3. Use the toggle on the control panel for layer
zoom-in and zoom-out and the joystick to set
the position for more detailed adjustment.
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
35
