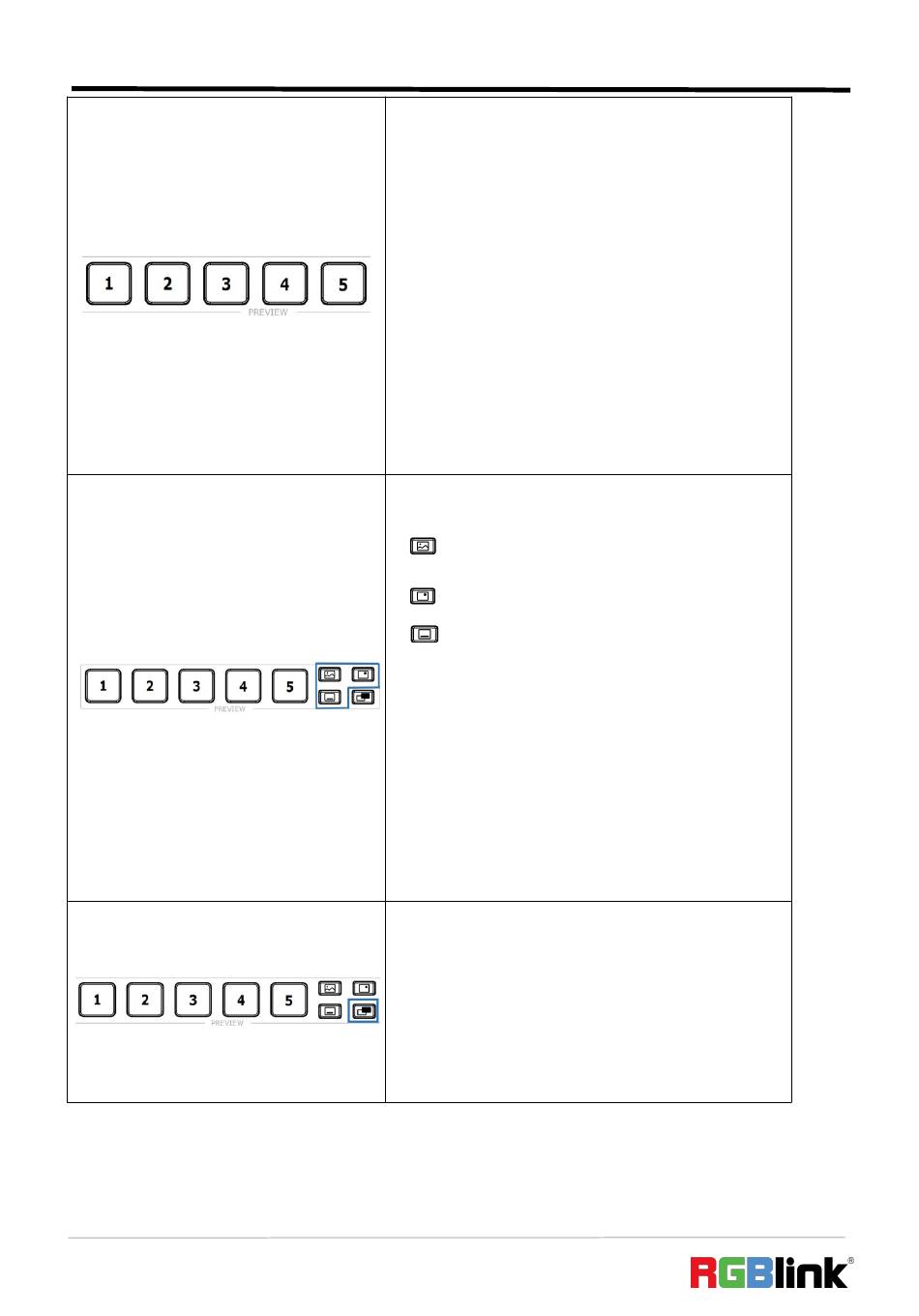

█ PREVIEW Source Row
● Button Definition
○ Button 1~4: 1~4 HDMI inputs. If you use PTZ as input,
TALLY light will be illuminated green.
○ Button 5: Media Source. Long press to enter Media.
● Button Color Description
○ Button Unlit: no signal
○ Button Lit Green: signal output as the Preview.
○ Button Lit White: unselected signal.
● Button Operation
○ For Layer A or Layer B on Preview: press to perform
signal switch on Layer A or Layer B.
○ For Layer A and Layer B on Preview: select Layer A or
Layer B, then press Button 1~5 to perform signal switch
on one certain layer.
█ PREVIEW Layer Button
● Icon Definition
○ indicates BACKGROUND.
○ indicates LOGO.
○ indicates OVERLAY.
● Button Color Description
○ Button Unlit: no layer.
○ Button Lit White: layer contained.
○ Button Lit Blue: Layer enabled on PVW and selected.
○ Button Lit Green: Layer on PVW but not selected.
● Button Operation
○ Long Press: to ener Media Interface.
○ Short Press: 1) to enter Media Interface or not if
no layer contained; 2) to remove layer from PVW,
the button turns white.
█ PREVIEW Clear Button
● Button Color Description
○ Button Lit Green: no layer on PVW. Button goes
dark afer layer added.
● Button Operation
○ Short Press Button Unlit: to clear layer on PVW
and save it to view. Button turns green.
○ Short Press Button with View: to load view to PVW.
