RGBlink M3 Upgrade Manual

Hide thumbs Also See for M3:
1
2
3
4

Advertisement

Table of Contents

There are two ways to upgrade M3 with network cable or serial cable.

1. Package Upgrade

File name: M3_package_xx.bin

1.1. Connect device with PC

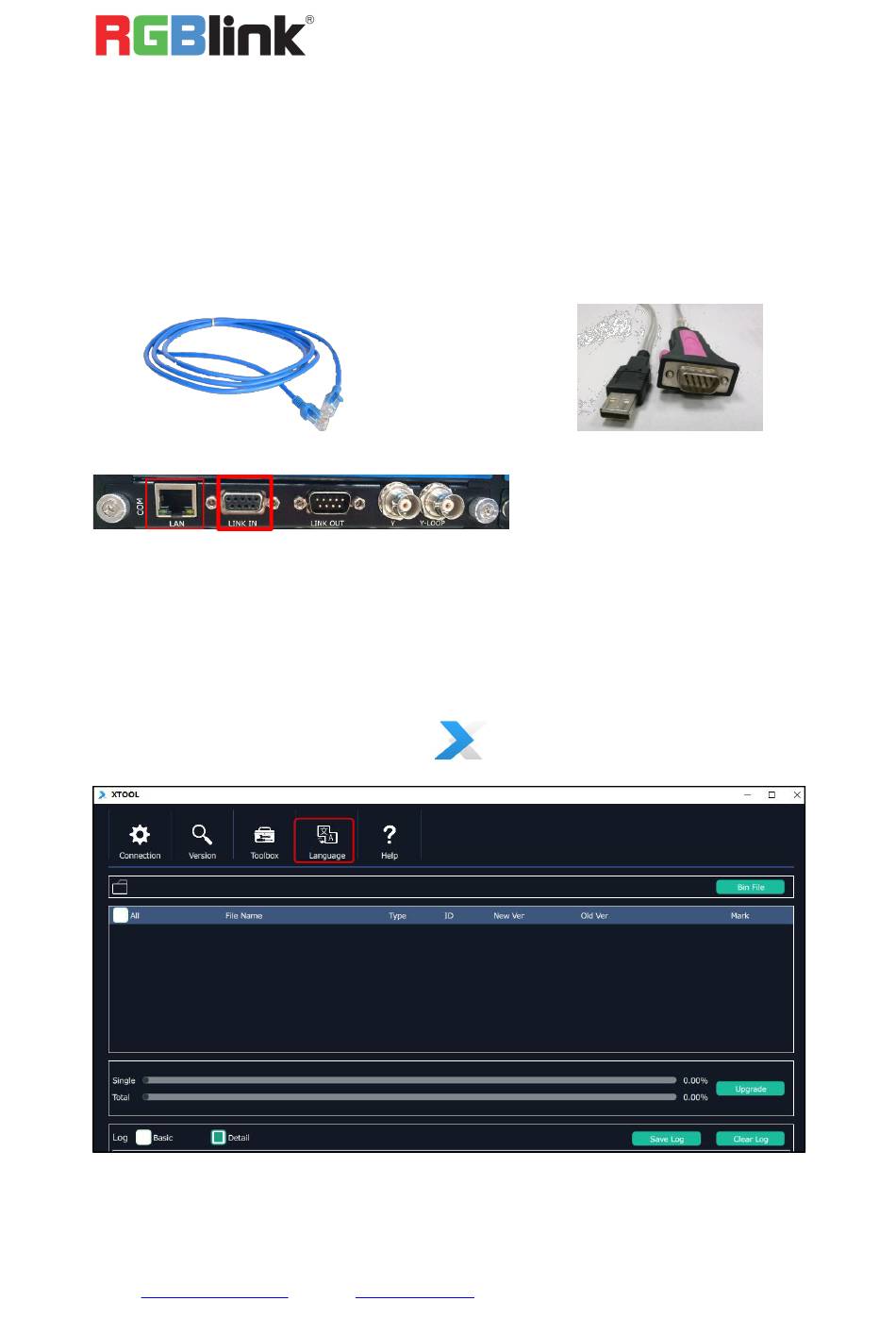

1: Connect M3 and PC by LAN cable (Figure 1).
2:Connect M3 and PC by RS232 convert USB cable (Figure 2 and 3).
Figure 1: LAN cable
Figure 3: M3 communication Board

1.2. Power on the M3

Please disconnect input and output signals before upgrade.

1.3. XTOOL Connection Setting

1.3.1. After installation, open the XTOOL
left corner to switch the language as the figure shown:
1.3.2. Connection setting:
Connected by LAN cable：Click [Connection], Select [Net comm] and set the same IP
Address：S603.604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian P.R.C
Tel：4008 592 315
Email:
support@rgblink.com
M3 Upgrade Guide
Fax：+86 592 5788216
http://www.rgblink.com
Figure 2: RS232 convert USB cable
.Click"Language/语言（L)"on the top
1 / 4
