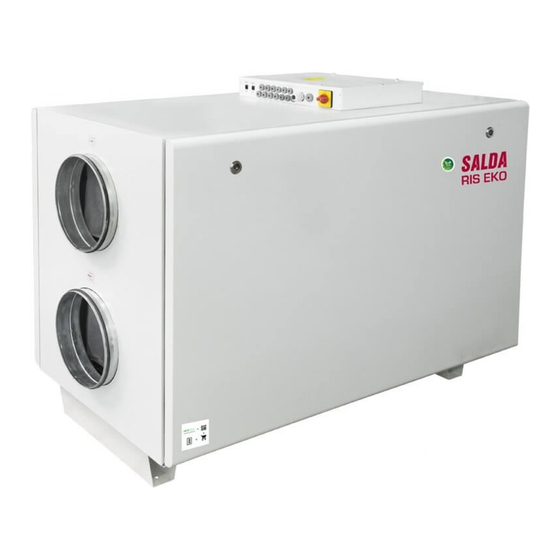

- Page 1 RIS 700 H EKO 3.0 MOUNTING AND INSTALLATION INSTRUCTION...
-
Page 2: Table Of Contents
WATER HEATER CIRCULATION PUMP AND VALVE ACTUATOR 8.8. RECOMMENDED SCHEME FOR CONNECTION OF INTERNAL AND EXTERNAL COMPONENTS 9. POSSIBLE FAULTS AND TROUBLESHOOTING 10. ECODESIGN DATA TABLE 11. DECLARATION OF CONFORMITY 12. WARRANTY 12.1. LIMITED WARRANTY COUPON | EN RIS 700 H EKO 3.0 v2023.1... -
Page 3: Symbols And Marking
ODA - outdoor air; SUP - supply air; ETA - extract air; EHA - exhaust air. Figure 2.3 Technical label place and air duct indication (right Figure 2.4 Technical label place and air duct indication (left version) version) NOTE. Ducts are not parts of the unit. RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 4: Safety Instructions And Precautions
• If rotary heat exchanger is installed in the device, make sure that it is not stuck or blocked; • Check the earthling; • Make sure that all components and accessories are connected in accordance with the wiring diagram or provided instructions. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 5: Information About The Product
MB-Gateway by PC. Remote control panel and MB-Gateway are optional and not included in standard package. Not suitable for operation in pools, saunas and other similar premises. 4.2. DIMENSIONS AND WEIGHT RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 6: Technical Data
FMK 600x315x250/6 [mm] Supply air filter (class, dimensions LxWxH) ePM10 65% ePM10 65% Acoustic data: check the product page on www.salda.lt Not suitable for installation in living rooms: additional noise insulation required. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 7: Operating Conditions
1 - Plate heat exchanger; 2 - Supply fan; 3 - Exhaust fan; 4 - By-pass damper; 5 - Electrical heater; 6 - Control board; 7 - Extract air filters (pocket); 8 - Supply air filter (pocket). RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 8: Installation
• Before commencing the installation of the unit, please check if all ordered equipment been delivered. Any deviation from the ordered equip- ment list must be reported to the product supplier. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 9: Piping And Instrumentation Diagram
Stouch, Flex or ST-SA-Control remote control panel Water heater valve motor* * Component/possibility to connect it depends on model. POSSIBLE PCB INPUTS/OUTPUTS Fire alarm Alarm indication output Working indication output Fans speed switch (BOOST) System mode switch (START/STOP) RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 10: Mounting
• They must be adjusted without a gradient. • Leave space in front (2xL) so that it would be sufficient to open the doors and to remove or install a required component. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 11: Drainage
• Using extension wires (cables) and power network plug socket distribution devices is not allowed. • Prior to carrying out any ventilation unit installation and connection works (before the unit is commissioned), the unit must be disconnected from the power network. RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 12: Start-Up Recommendations
• Cables and wires correspond to all applicable safety and functional requirements, diameters, etc., • Earthling and protection systems are properly installed, • Condition of all seals and sealing surfaces is proper. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 13: Maintenance
Clean sembly properly. 6.3. COVER OPENING Before opening the covers, first, unplug the unit from the mains, then wait for 2 minutes (until the fans completely stop). RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 14: Filters Maintenance
• Firstly take out heat exchanger cassette carefully. Submerge it into a bath and wash with warm soapy water (do not use soda). Then rinse it with weak hot water stream (too strong stream can fold the plates). Place back the heat exchanger only when it is completely dry. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 15: Heater Maintenance
• To reassemble, follow all maintenance steps in reverse order. When re-connecting cables, wires, hoses and connectors, make sure to match each wire, hose and connector to corresponding connection terminal and connector. RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 16: Control
1. Selected control interface (remote control panel, MB-GATEWAY, etc.). The selected interface affects access to the information and settings, however, it does not affect the logic of control. Full access to the information and settings is available on FLEX, ST-SA-Control, MB-GATEWAY WEB application and SALDA AIR mobile application. 2. Unit configuration (internal/external components, sensors and control board settings). -
Page 17: Connection Of Accessories
. min. 60 cm max. 400m If the duct CO transmitter is used, it must be installed in the extract air duct. To install duct transmitters, hole drilling tools are required. RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 18: Connection Of Supply And Extract Air Dampers
M2 – Spring-return damper actuator. M3 – Open/Close damper actuator. Upon activation of outputs X16:17, X16:20, the dampers open. Upon activation of output X16:19, the extract air damper close. The supply air damper is controlled by spring-return actuator so that when output X16:16 is deactivated, the supply air damper closes. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 19: Connection Of Remote Control Panel Or Modbus
Water heater circulation pump and valve actuator can only be connected to the units that are designed to operate with water heater (RIS HW EKO 3.0 units). Wiring diagram Valve actuator is controlled by 0-10 VDC signal. Circulation pump is controlled by On/Off signal. RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 20: Recommended Scheme For Connection Of Internal And External Components
DX Cooling supply cable Boost Start/Stop AHU stop AHU work input Supply air pressure valve actuator damper actuator damper actuator temp.sensor CO2; Extract air pressure Figure 8.8.1 RIS 700 HE EKO 3.0 | EN RIS 700 H EKO 3.0 v2023.1... - Page 21 AHU stop AHU work input temp.sensor CO2; Supply air pressure valve actuator valve actuator damper actuator damper actuator Extract air pressure circulation pump antifrost protect. Figure 8.8.2 RIS 700 HW EKO 3.0 RIS 700 H EKO 3.0 v2023.1 EN |...
-
Page 22: Possible Faults And Troubleshooting
Wrong time in filter timers or their switch is clogged filters appears or replace the pressure shown on the remote control broken, or its pressure is set improperly. switch of the filters, or set their proper pressure. | EN RIS 700 H EKO 3.0 v2023.1... -
Page 23: Ecodesign Data Table
Declared maximum internal leakage rates [ % ] Declared maximum external leakage rates [ % ] Position and description of visual filter warning for RVU’s Timer ErP Compliance 2018 Internet address for disassembly instructions www.salda.lt RIS 700 H EKO 3.0 v2023.1 EN |... -
Page 24: Declaration Of Conformity
LST EN 61000-6-4:2007/A11:2011 - Electromagnetic compatibility (EMC). Part 6-4: Generic standards - Emission standard for industrial environments. Should any alterations be made in the products, this declaration will no longer apply. Quality: SALDA UAB activities are in line with the international quality management system standard ISO 9001:2015. Date 2022-05-17... -
Page 25: Warranty
3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where the Air Handling unit is manufactured 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where the Air Handling unit is manufactured without the control system and the control system is installed by the client or the third parties. - Page 26 RIS 700 H EKO 3.0 v2023.1...
- Page 27 RIS 700 H EKO 3.0 v2023.1...
- Page 28 Once per year** Every 3-4 Filter replacement months** Look at the product label. ** - At least. NOTE. The customer shall be required to complete the Product Maintenance Table. MANUALS IN OTHER LANGUAGES https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ ris700hekode ris700hekodk ris700hekofr ris700hekoit ris700hekolt https://select.salda.lt/file/...
