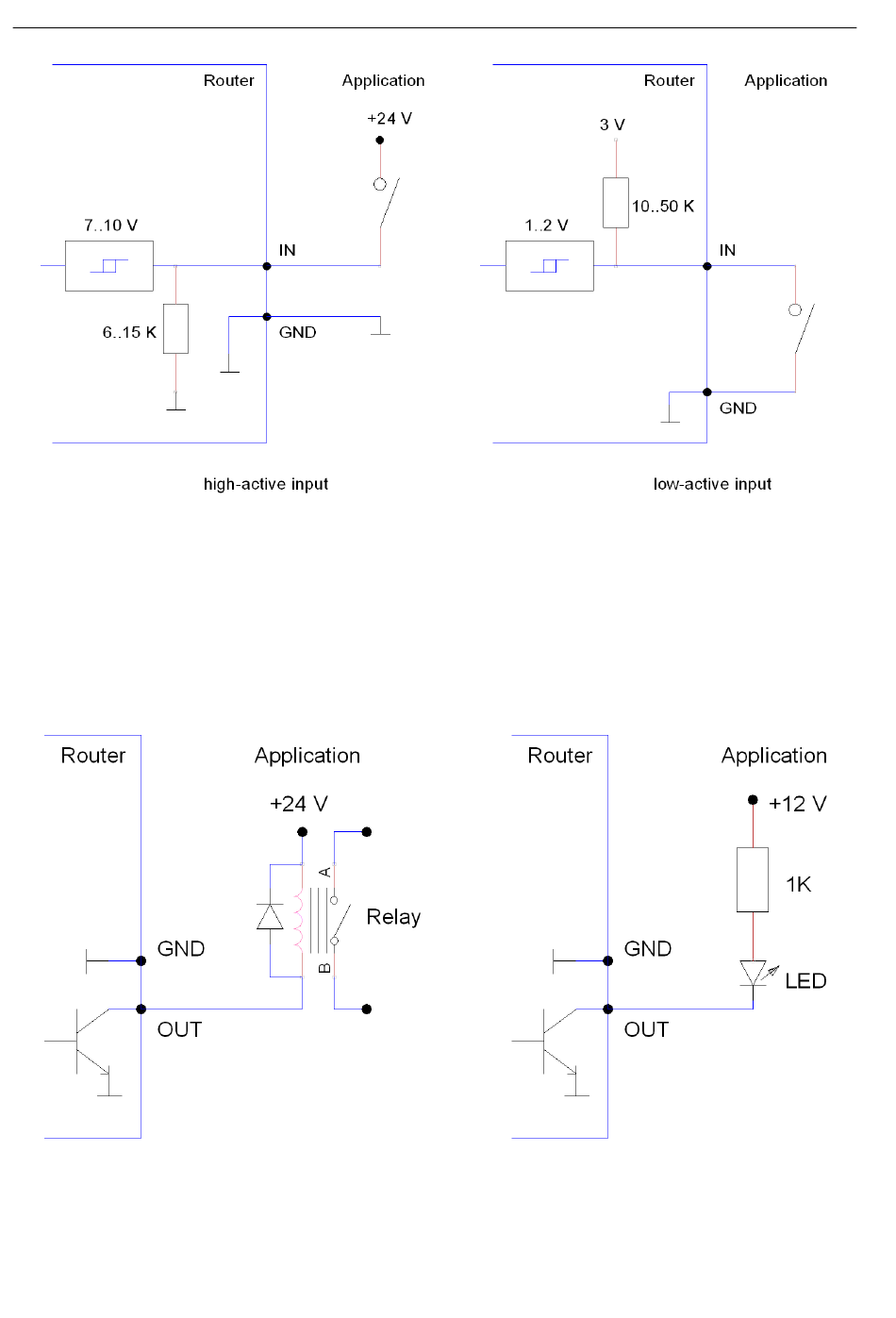

Figure 33: MRcard PLS – Digital inputs – connection examples
8.7.2.4 Digital output
The router provides a digital output that is designed as open collector output. You'll
find more information in Table . The figure below shows two examples for the con-
nection of the output, the connection of a relay on the left and the connection of an
LED on the right.
Figure 34: MRcard PLS – Digital open collector output – connection examples
Technical Information
57
