insys icom MRX Series Installation And User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
www.westercom.eu
MRX
Installation and User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MRX Series and is the answer not in the manual?

Questions and answers

Related Manuals for insys icom MRX Series

Summary of Contents for insys icom MRX Series

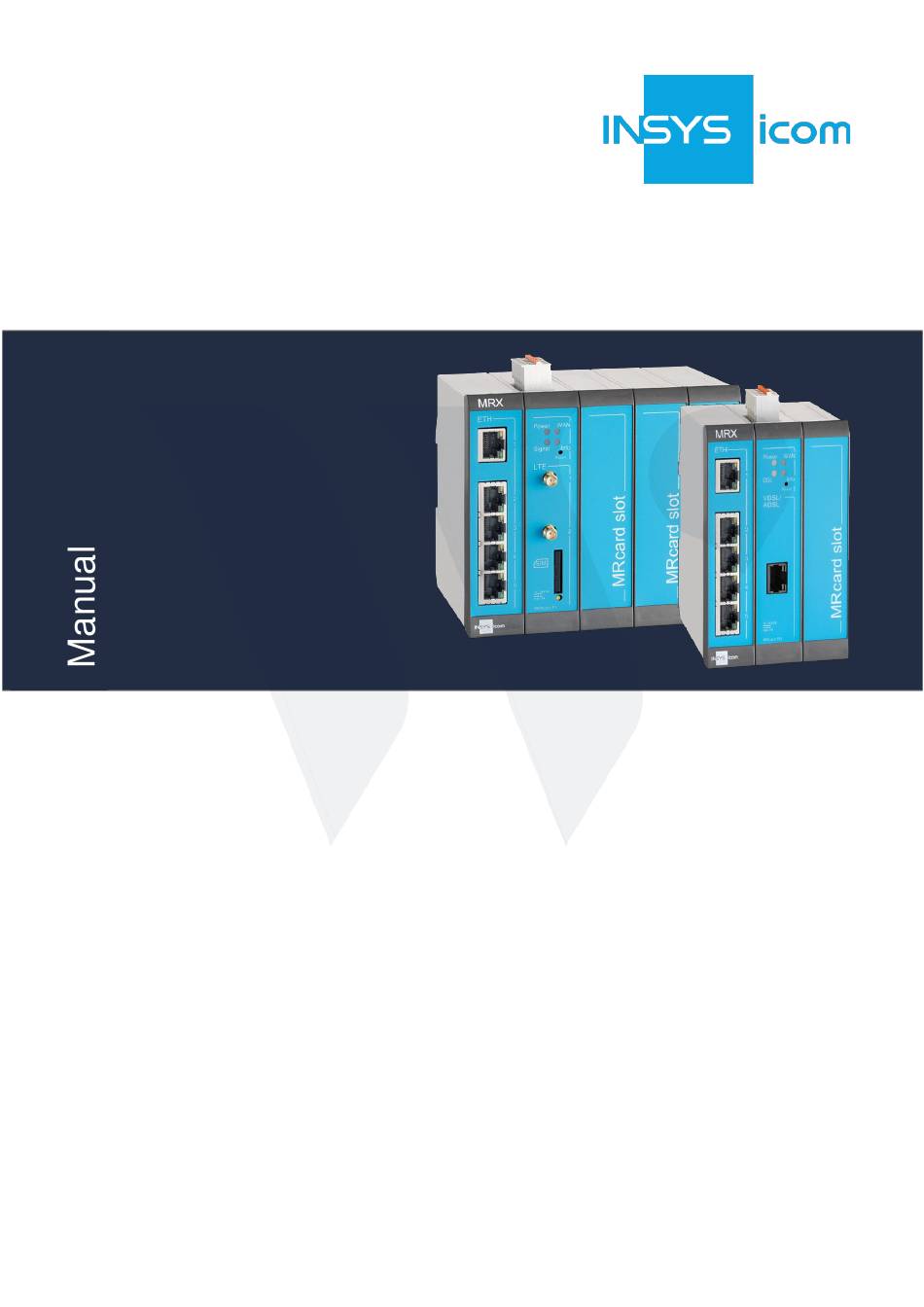

  • Page 1 www.westercom.eu Installation and User Manual...
  • Page 2 www.westercom.eu...
  • Page 3 Copyright © February 2024 INSYS icom GmbH Any duplication of this manual is prohibited. All rights on this documentation and the devices are with INSYS icom GmbH Regensburg. Trademarks The use of a trademark not shown below is not an indication that it is freely availa- ble for use.
  • Page 4 www.westercom.eu Content Preface ....................7 Defects Liability Terms ..................7 Applicability ......................7 Feedback ......................7 Marking of Warnings and Notes ................8 Symbols and the Formatting in this Manual ............9 Safety Instructions ................10 Intended Use ..................... 10 Permissible Technical Limits................

  • Page 5: Table Of Contents

    www.westercom.eu Contents MRcard PL ......................34 8.3.1 Technical Data ..................34 8.3.2 Connections as well as display and control elements ......36 8.3.3 Antennas ....................39 MRcard PD......................40 8.4.1 Technical Data ..................40 8.4.2 Connections as well as display and control elements ......41 MRcard SI ......................
  • Page 6 www.westercom.eu Content 12.3 Profiles and Profile Handling ................93 12.3.1 Term definitions ..................93 12.3.2 Working with one profile ................ 93 12.3.3 Using several profiles ................94 12.3.4 ASCII Configuration ................96 12.3.5 Profile Mode ................... 97 Maintenance, Troubleshooting and Repair ........... 98 13.1 Maintenance .....................

  • Page 7: Defects Liability Terms

    We are looking forward to any of your feed- back. Please send an e-mail to support@insys-icom.de. We’d like to know your applications. Please send us a few headwords that we know the applications you solve using products of INSYS icom.

  • Page 8: Marking Of Warnings And Notes

    www.westercom.eu Preface Marking of Warnings and Notes Symbols and Key Words Danger! Risk of severe or fatal injury One of these symbols in conjunction with the key word Danger indicates an imminent danger. It will cause death or severe injuries if not avoided. Warning! Personal injury This symbol in conjunction with the key word Warning...

  • Page 9: Symbols And The Formatting In This Manual

    www.westercom.eu Preface Symbols and the Formatting in this Manual This section describes the definition, formatting and symbols used in this manual. The various symbols are meant to help you read and find the information relevant to you. The following text is structured like a typical operating instruction of this manual.

  • Page 10: Safety Instructions

    www.westercom.eu Safety Instructions Safety Instructions The Safety Instructions section provides an overview about the safety instructions, which must be observed for the operation of the product. The product is constructed according to the currently valid state-of-the-art technol- ogy and reliable in operation. It has been checked and left the factory in flawless condition concerning safety.

  • Page 11: Permissible Technical Limits

    www.westercom.eu Safety Instructions Permissible Technical Limits The product is only intended for the use within the permissible technical limits specified in the data sheets. The following permissible limits must be observed: • The ambient temperature limits must not be fallen below or exceeded. •...

  • Page 12: Markings On The Product

    www.westercom.eu Safety Instructions Markings on the Product The identification plate of the product is either a print or a label on a face of the product. Amongst other things, it can contain the following markings, which are explained in detail here. Observe manual This symbol indicates that the manual of the product contains essential safety instructions that must be followed implicitly.

  • Page 13: Safety Instructions For Electrical Installation

    www.westercom.eu Safety Instructions Safety Instructions for Electrical Installation The electrical connection must only be made by authorized expert personnel ac- cording to the wiring diagrams. The notes to the electrical connection in the manual must be observed. Otherwise, the protection category might be affected. The safe disconnection of circuits, which are hazardous when touched, is only en- sured if the connected devices meet the requirements of VDE T.101 (Basic require- ments for safe disconnection).

  • Page 14: General Safety Instructions

    www.westercom.eu Safety Instructions General Safety Instructions Caution! Electrostatic discharges may damage the product! Damage of the product. Observe the general safety precautions when handling electrostatic-discharge-sensitive parts. Caution! Incomplete voltage isolation! Damage of the product. To isolate the voltage from the device, disconnect any supply circuit with its respective isolation device if a redundant power supply is used.
  • Page 15 www.westercom.eu Safety Instructions Caution! Short circuits and damage due to improper repairs and modifications as well as opening of maintenance areas! Fire hazard and damage of the product. It is not permitted to open the product for repair or modification exceeding the removal or installation of the designated plug-in cards.
  • Page 16 www.westercom.eu IT Security IT Security Note Insecure configured router may compromise applications relevant to security! Follow the information under IT Security – Overview for protecting your router: https://docs.insys-icom.de/itsec/en_itsec_guide.html You will find there a Secure Configuration Guide (https://docs.insys- icom.de/itsec/en_itsec_secure_config_guide.html) for a configuration that complies with the accelerated security certification of the German Federal Office for Information Security (BSI).

  • Page 17: Using Open Source Software

    3 years after delivery of our product to the customer. Requests must be directed to the following address, if possible under specification of the serial number: INSYS icom GmbH Hermann-Köhl-Str. 22 93049 Regensburg, Germany Phone +49 941 58692 0 Fax +49 941 58692 45 E-mail : support@insys-icom.de...

  • Page 18: Special Liability Regulations

    www.westercom.eu Using Open Source Software Special Liability Regulations We do not assume any warranty or liability, if the open-source software programs contained in our product are used by the customer in a manner that does not com- ply any more with the purpose of the contract, which is the basis of the acquisition of our product.

  • Page 19: Version History

    www.westercom.eu Version History Version History Version Modification Release Update for firmware 1.1; changes in profile handling Update for firmware 1.2; changes in profile handling Adaptation of the product names DSL variants added New behaviour of the Power LED with icom OS 3.2 Addition of MRcard PLS and MRcard IO Addition of MRcard Fiber and notes regarding cellular variants Update for firmware 4.4...

  • Page 20: Device Variants

    www.westercom.eu Device Variants Device Variants This manual describes different variants of the industrial router series MRX of IN- SYS icom. The flexible industrial routers of the series MRX are available in three housing widths with two, three or five slots and several basic variants each. Vari- ous plug-in cards (MRcards) are also available to extend the functional scope of the router flexible.
  • Page 21 www.westercom.eu Device Variants Plug-in Cards (MRcards) The MRcards allow a flexible extension of your router to a tailor-made device for your application. The left slot is always reserved for the base card with integrated 4+1 port switch that is already present in all basic variants. Depending on the basic variant, the second slot from the left is taken by a power supply card or a commu- nications card with integrated power supply.
  • Page 22 www.westercom.eu Device Variants Figure 10: MRcard Fiber Figure 11: MRcard PL450 ▪ 2 SFP ports ▪ LTE incl. LTE450 ▪ 2 digital inputs ▪ Dual SIM ▪ 2 digital inputs...

  • Page 23: Scope Of Delivery

    • Industrial Router • Quick Installation Guide • Safety Instructions The scope of delivery does not include optional accessories. The following parts are available from your distributor or INSYS icom: • Cellular antennas • Antenna extensions • Din rail power supply units •...

  • Page 24: Technical Information

    www.westercom.eu Technical Information Technical Information Basic Variants The following specifications apply to the basic variants MRX2/3/5 LAN, DSL and LTE. If these variants differ, the different values will be indicated separately. The specifications of the MRcards can be found subsequently. 8.1.1 Technical Data 8.1.1.1 Physical Features All specified data was measured with nominal input voltage, at full load, and an...
  • Page 25 www.westercom.eu Technical Information Physical Feature Value Weight 255 g (MRX2 LAN) 270 g (MRX2 LTE/LTE450) 280 g (MRX2 DSL) 270 g (MRX2 Fiber) 280 g (MRX2 LTES) 305 g (MRX3 LAN) 320 g (MRX3 LTE/LTE450) 330 g (MRX3 DSL) 320 g (MRX3 Fiber) 395 g (MRX5 LAN) 410 g (MRX5 LTE/LTE450) 420 g (MRX5 DSL)
  • Page 26 www.westercom.eu Technical Information Device variant Standard Extended MRX LAN/LTE/LTE450/LTES -30 … 70 °C -30 … 75 °C MRX DSL 0 … 60 °C -25 … 60 °C MRX Fiber -30 … 65 °C MRX DSL + MRcard PD/PL/PLS/Fiber/PL450 0 … 55 °C -25 …...

  • Page 27: Connections And Display Elements

    www.westercom.eu Technical Information 8.1.2 Connections and display elements ETH 1 Ethernet port 1 (RJ45, 10/100 BT) ETH 2 Ethernet port 2 (RJ45, 10/100 BT) ETH 3 Ethernet port 3 (RJ45, 10/100 BT) ETH 4 Ethernet port 4 (RJ45, 10/100 BT) ETH 5 Ethernet port 5 (RJ45, 10/100 BT) Figure 12: Basic variants –...

  • Page 28: Redundant Power Supply

    www.westercom.eu Technical Information 8.1.3 Power consumption estimation The power consumption of the MRX depends on the inserted MRcards and your special application. The following information serves for estimating the expected power consumption of your solution. All information is based on averaged values and do not consider inrush currents or brief load peaks.

  • Page 29: Connecting The Connectors

    www.westercom.eu Technical Information 8.1.5 Connecting the connectors 8.1.5.1 Connectors at the top The connectors are delivered encoded and cannot be interchanged between differ- ent MRcards. The wires are contacted maintenance-free in the connector via a spring clip. Rigid wires (stripped) or stranded wires with end sleeves are only in- serted into the connectors to clamp them.
  • Page 30 www.westercom.eu Technical Information 8.1.6 Approvals The router provides the following approvals: • EMC, Emission: EN 61000-6-3, EN 55032 Class B • EMC, Immunity: EN 61000-6-2, EN 55035 • Product safety: EN 60950-1, IEC/EN 62368-1 The conformity of the whole device depends on the used plug-in cards and corre- sponds to the “least common denominator”...
  • Page 31 www.westercom.eu Technical Information MRcard PM 8.2.1 Technical Data The MRcard PM is integral part of the MRX2/3/5 LAN and contains the power sup- ply of the MRX. Physical Feature Value Weight 70 g Dimensions (Width x Height x Depth) 27 x 117 x 81 mm Table 9: MRcard PM –...
  • Page 32 www.westercom.eu Technical Information Colour Function blinking 1x during soft reset green via V+ Power Supply 3x during reset to orange via V+ default settings green WAN chain inactive establishing established orange Profile active saved ≠ Info Boot process not Failure Reset completed Table 10: MRcard PM –...
  • Page 33 www.westercom.eu Technical Information 8.2.2.2 Digital inputs The card provides two different digital inputs. Input IN1 is low-active, i.e. active, if connected to GND. Input IN2 is high-active and based on the electrical requirements of the PLC standard DIN EN 61131-2 for digital inputs type 1. You'll find more infor- mation under Technical Data in Table 1.

  • Page 34: Mrcard Pl

    www.westercom.eu Technical Information MRcard PL The MRcard PL is a plug-in card for extending the basic variants by an LTE cellular modem with two digital inputs and integrated power supply. The MRcard PL is al- ready contained in the basic variant MRX LTE. The technical data of the basic vari- ant MRX LAN are extended by the following data with inserted MRcard PL.
  • Page 35 www.westercom.eu Technical Information 8.3.1.2 Technological Features Technological Feature Description LTE frequency bands (4G) 1 (2100), 2 (1900), 3 (1800), 4 (2100/1700 Band (MHz) AWS), 5 (850), 7 (2600), 8 (900), 12 (700), MRcard PL 1.1 13 (700), 18 (850), 19 (850), 20 (800), 26 (850), 28 (700), 38 (2600), 40 (2300), 41 (2500), 66 (2100) LTE Cat 4 (DL: 150 Mbit/s, UL: 50 Mbit/s)

  • Page 36: Connections As Well As Display And Control Elements

    www.westercom.eu Technical Information  The maximum data rates of the wireless interface with LTE Cat 3/4 are usually not achieved in practice. Among other things, they are limited by the performance of the Ethernet interface (100 Mbit/s), the current reception conditions (network signal strength), the antenna (use of MIMO/Rx Diversity (refer to Antennas), performance and positioning) and support of the respective provider (contract extent and network utilisation).
  • Page 37 www.westercom.eu Technical Information Colour Function blinking 1x during soft reset green via V+ Power Supply 3x during reset to orange via V+ default settings green inactive establishing established chain logged in (field green no signal strength see Table ) Signal Signal or logged PDP context estab-...
  • Page 38 www.westercom.eu Technical Information Digital input 2 (can also be marked with IN Digital input 1 (can also be marked with IN Ground Power supply, redundant positive terminal 2 Power supply, redundant positive terminal 1 Figure 17: MRcard PL – connections at the connector 8.3.2.1 Redundant supply connections The description of the power supply can be found in the basic variant section.

  • Page 39: Antennas

    www.westercom.eu Technical Information 8.3.3 Antennas  As per EN 2014/53/EU, the operator of a radio equipment must comply with the harmonisation legislation. This includes in particular the selection and utilisation of suitable antenna systems. It must be ensured in particular that devices with radio technology are not operated without a suitable antenna system for an extended period.

  • Page 40: Mrcard Pd

    www.westercom.eu Technical Information 8.3.3.5 Magnetic base antenna The magnetic base antennas offered by INSYS are especially intended for the use on metallic surfaces, e.g. outside a switch cabinet. The metallic, reflecting under- ground is mandatory for a good antenna effect. Both antennas are to be mounted at an upper corner of the switch cabinet such that the main antenna is on the top of the switch cabinet and the auxiliary antenna on its side wall.

  • Page 41: Connections As Well As Display And Control Elements

    www.westercom.eu Technical Information 8.4.1.2 Technological Features Technological Feature Description Supported standards VDSL2 G.993.2 Profile 8a, 8b, 8c, 8d, 12a, 12b, MRcard PD-A 17a. 30a VDSL2 Vectoring G.993.5 ADSL G.992.1 Annex A, G.992.3. Annex A/L/M, G.992.5 Annex A and M, T1.413 Supported standards VDSL2 G.993.2 Profile 8a, 8b, 8c, 8d, 12a, 12b, MRcard PD-B...
  • Page 42 www.westercom.eu Technical Information Colour Function blinking 1x during soft re- green via V+ Power Supply 3x during reset to orange via V+ default settings green WAN chain inactive establishing established establishing established green (handshake / (showtime) DSL connec- no con- training) tion nection...
  • Page 43 www.westercom.eu Technical Information Digital input 2 (can also be marked with IN Digital input 1 (can also be marked with IN Ground Power supply, redundant positive terminal 2 Power supply, redundant positive terminal 1 Figure 20: MRcard PL – connections at the connector not connected not connected not connected...
  • Page 44 www.westercom.eu Technical Information 8.4.2.2 Digital inputs The card provides two different digital inputs. Input IN1 is low-active, i.e. active, if connected to GND. Input IN2 is high-active and based on the electrical requirements of the PLC standard DIN EN 61131-2 for digital inputs type 1. You'll find more infor- mation under Technical Data in Table 1.

  • Page 45: Mrcard Si

    www.westercom.eu Technical Information MRcard SI The MRcard SI is a plug-in card for extending the basic variants and contains two digital inputs, two digital outputs (changeover relays), a USB connection, a serial RS232 interface as well as a serial RS485 interface. The technical data of the basic variants are extended by the following data with inserted MRcard SI.

  • Page 46: Connections And Display Elements

    www.westercom.eu Technical Information 8.5.2 Connections and display elements USB 2.0 interface (socket type A) RS232 Serial RS232 interface (D-Sub connector, V.28) RS485 Serial RS485 interface (EIA-485) Figure 23: MRcard SI – connections and display elements at the front Colour Function green Input 1 not active (LOW)
  • Page 47 www.westercom.eu Technical Information Digital output 2 normally closed (opening contact, NC) – Digital output 2 common contact (COM) – Digital output 2 normally open (closing contact, NO) – Ground Digital input 2 Digital output 1 normally closed (opening contact, NC) –...
  • Page 48 www.westercom.eu Technical Information 8.5.2.2 Digital outputs Both outputs are implemented as change-over relays. The figure below shows an ex- emplary connection. Figure 26: MRcard SI – Digital outputs – connection example 8.5.2.3 USB interface The USB interface is not yet supported by the firmware. The USB interface is designed as USB 2.0 host.
  • Page 49 www.westercom.eu Technical Information 8.5.2.5 RS485 interface Description Common (frame GND) Data line positive Data line negative Table 23: Description of the pin allocation of the RS485 interface The properties of the RS485 interface are configured using a 4-pole DIP switch on the circuit board.

  • Page 50: Mrcard Es

    www.westercom.eu Technical Information MRcard ES The MRcard ES is a plug-in card for extending the basic variants by a 4-port switch. The technical data of the basic variants are extended by the following data with in- serted MRcard ES. 8.6.1 Technical Data 8.6.1.1 Physical Features Physical Feature Value...

  • Page 51: Connections And Display Elements

    www.westercom.eu Technical Information 8.6.2 Connections and display elements ETH 1 Ethernet port 1 (RJ45, 10/100 BT) ETH 2 Ethernet port 3 (RJ45, 10/100 BT) ETH 3 Ethernet port 4 (RJ45, 10/100 BT) ETH 4 Ethernet port 5 (RJ45, 10/100 BT) Figure 29: MRcard ES –...

  • Page 52: Technical Data

    www.westercom.eu Technical Information 8.7.1 Technical Data 8.7.1.1 Physical Features All specified data was measured with nominal input voltage, at full load, and an ambient temperature of 25 °C. The limit value tolerances are subject to the usual variations. Physical Feature Value Power consumption Typ.
  • Page 53 www.westercom.eu Technical Information  The maximum temperature range of the router may be limited by narrower temperature ranges of the inserted MRcards (see Table 2). 8.7.1.2 Technological Features Technological Feature Description LTE frequency bands (4G) 1 (2100), 2 (1900), 3 (1800), 4 (2100/1700 Band (MHz) –...

  • Page 54: Connections As Well As Display And Control Elements

    www.westercom.eu Technical Information  Two different versions of the MRcard PLS are currently available. They differ in the supported frequency bands. If the Hardware version displayed in the Status menu on the device info page is ≤ 2, the card version is 1.0.
  • Page 55 www.westercom.eu Technical Information Colour Function blinking 1x for soft reset not pre- 3x for resetting Power green Supply present sent to default set- tings green WAN chain inactive establishing established logged in (field no sig- green strength see Ta- nal or ble ) Signal Signal...
  • Page 56 www.westercom.eu Technical Information Digital input 2 Digital input 1 Ground Digital output (open collector) Power supply, positive terminal Figure 31: MRcard PLS – connections at the connector  The SIM card slot is under the front cover on the top of the device (see also page 78 for this).
  • Page 57 www.westercom.eu Technical Information Figure 33: MRcard PLS – Digital inputs – connection examples 8.7.2.4 Digital output The router provides a digital output that is designed as open collector output. You'll find more information in Table . The figure below shows two examples for the con- nection of the output, the connection of a relay on the left and the connection of an LED on the right.

  • Page 58: Antennas For Mimo / Rx Diversity

    www.westercom.eu Technical Information 8.7.3 Antennas for MIMO / Rx Diversity For information regarding antennas for MIMO / Rx Diversity, refer to the MRcard PL section on page 38. MRcard IO The MRcard IO is a plug-in card to extend the basic variants and include four digital inputs, four digital outputs (normally open relay), three analogue inputs as well as an analogue output.
  • Page 59 www.westercom.eu Technical Information 8.8.1.2 Technological Features Technological Feature Description Analogue inputs 0 … 20 mA or 0 … 10 V changeable via SW isolated against each other Accuracy ±0,3 % plus ±100 ppm/K temperature drift Resolution 16 Bit Input resistance Voltage range >...

  • Page 60: Connections And Display Elements

    www.westercom.eu Technical Information 8.8.2 Connections and display elements AI 1 Analogue input 1 AI 2 Analogue input 2 AI 3 Analogue input 3 AO 1 Analogue output 1 Figure 35: MRcard IO – connections and display elements at the front Colour Function green...
  • Page 61 www.westercom.eu Technical Information Digital output 4 – normally open Digital output 3 – normally open (closing contact) Digital output – common contact Digital output 2 – normally open (closing contact) Digital output 1 – normally open (closing contact) Digital input – common contact Digital input 4 Digital input 3 Digital input 2...

  • Page 62: Mrcard Fiber

    www.westercom.eu Technical Information 8.8.2.2 Digital outputs The digital outputs are implemented as normally open relays. The figure below shows an exemplary connection. Figure 38: MRcard IO – Digital outputs – connection example 8.8.2.3 Analogue inputs Description Voltage input (0 … 10 V) Common –...

  • Page 63: Technical Data

    www.westercom.eu Technical Information 8.9.1 Technical Data 8.9.1.1 Physical Features All specified data was measured with nominal input voltage, at full load, and an ambient temperature of 25 °C. The limit value tolerances are subject to the usual variations. Physical Feature Value Power consumption Typ.

  • Page 64: Connections As Well As Display And Control Elements

    www.westercom.eu Technical Information 8.9.2 Connections as well as display and control elements SFP1 SFP cage 1 SFP2 SFP cage 2 Figure 39: MRcard Fiber – connections, display and control elements at the front Colour Function blinking 1x for soft reset green via V+ Power...
  • Page 65 www.westercom.eu Technical Information  The WAN LED is only active for cards in slot #2 and indicates there the status for the whole device. Designation Operation Meaning Reset Press once for a short time. Resets the software and restarts it. (Soft reset) Press at least 3 seconds.

  • Page 66: Mrcard Pl450

    www.westercom.eu Technical Information 8.9.2.2 Digital inputs The card provides two different digital inputs. Input IN1 is low-active, i.e. active, if connected to GND. Input IN2 is high-active and based on the electrical requirements of the PLC standard DIN EN 61131-2 for digital inputs type 1. You'll find more infor- mation under Technical Data in Table 1.
  • Page 67 www.westercom.eu Technical Information Physical Feature Value Max. transmission power cellular engine EGSM 900 +33 dBm GSM 1800 +30 dBm LTE 450/700/800/850//900/1800/2100/2600 +23 dBm Weight 85 g Dimensions (Width x Height x Depth (w/o 27 x 117 x 81 mm protruding connectors)) Max.

  • Page 68: Connections As Well As Display And Control Elements

    www.westercom.eu Technical Information  In order to ensure a long function, it is necessary to use so-called M2M SIM cards. Compared to standard SIM cards, M2M SIM cards provide significantly increased write cycles and support frequent transitions with this, which may occur in M2M or IoT applications. ...
  • Page 69 www.westercom.eu Technical Information Colour Function blinking 1x during soft reset green via V+ Power Supply 3x during reset to orange via V+ default settings green inactive establishing established chain logged in (field green no signal strength see Table ) Signal Signal or logged PDP context estab-...
  • Page 70 www.westercom.eu Technical Information Digital input 2 (can also be marked with IN Digital input 1 (can also be marked with IN Ground Power supply, redundant positive terminal 2 Power supply, redundant positive terminal 1 Figure 43: MRcard PL450 – connections at the connector ...

  • Page 71: Antenna

    www.westercom.eu Technical Information 8.10.3 Antenna  As per EN 2014/53/EU, the operator of a radio equipment must comply with the harmonisation legislation. This includes in particular the selection and utilisation of suitable antenna systems. It must be ensured in particular that devices with radio technology are not operated without a suitable antenna system for an extended period.

  • Page 72: Mrcard Installation

    www.westercom.eu MRcard Installation MRcard Installation The industrial router MRX is available in different basic variants and allows a flexi- ble extension of these basic variants with the additionally available MRcards. Pro- ceed as follows to remove or install an MRcard. Caution! The MRX and the MRcards contain electrostatic-discharge- sensitive parts.

  • Page 73: Positions And Combinations Of Mrcards

    www.westercom.eu MRcard Installation Positions and Combinations of MRcards The slots in the MRX are enumerated from the left with #1 … #2 (MRX2) or #1 … #3 (MRX3) or #1 … #5 (MRX5). This enumeration is also visible at the base PCB if individual MRcards or front covers are removed.

  • Page 74: Slot For Power Supply

    www.westercom.eu MRcard Installation 9.1.2 Slot for power supply Each MRX must be equipped with at least one MRcard with power supply (identi- fied by a Power LED) in the second slot from the left (#2). If a basic variant that is equipped with an MRcard PM (power supply only) will be upgraded with a MRcard with pwer supply and communication function, the MRcard PM can be replaced by the new MRcard.

  • Page 75: Slots For Extensions

    www.westercom.eu MRcard Installation 9.1.3 Slots for extensions Only the replacement of the MRcard in the second slot (#2) by another MRcard with power supply is possible for the MRX2. Any other MRcard can be inserted in the third slot (#3) of the MRX3. Any combination of MRcards can be inserted in the other slots (#3 …...

  • Page 76: Removal Of An Mrcard

    www.westercom.eu MRcard Installation Removal of an MRcard How to remove an MRcard or a front cover:  You will need an ordinary ball-pen.  The connectors are disconnected.  The MRX is not connected to the power supply. Insert the ball-pen as shown in the following figure vertically from above in the snap-in recess (red arrow) and press it down slightly to release the MRcard or front cover.

  • Page 77: Installation Of An Mrcard

    www.westercom.eu MRcard Installation Installation of an MRcard How to install an MRcard or a front cover:  The connectors are disconnected.  The MRX is not connected to the power supply. Place the MRX with its back onto the desktop. Insert the card with the board in the guides or the front cover from above into the slot from above.

  • Page 78: Removal Of A Terminal /Sim Slot Cover

    www.westercom.eu MRcard Installation Removal of a terminal /SIM slot cover Depending on the MRcard to be installed, it might be necessary to remove one or two terminal covers at the top of the MRX to provide an opening for the terminal connectors to the MRcard or insert a SIM card.

  • Page 79: Installation Of A Terminal / Sim Slot Cover

    www.westercom.eu MRcard Installation Installation of a terminal / SIM slot cover When you have removed an MRcard with terminal connector, replaced it by one without terminal connector or inserted/removed a SIM card, you need to insert the terminal /SIM slot cover(s) at the top of the MRX again to re-establish the integrity of the housing.

  • Page 80: Device Label

    www.westercom.eu MRcard Installation Device Label The devices of the industrial router series MRX in their basic variants have a device label attached to one side face that contains various information, which specify the device at hand exactly and also meet legal requirements. If a basic variant will be extended by one or more MRcards, this device label must also be modified accord- ingly.

  • Page 81: Mounting

    www.westercom.eu Mounting Mounting This section describes how to mount the MRX to a DIN rail, connect the power supply and uninstall it again. Observe the instructions in the "Safety" section of this manual, in particular the "Safety Instructions for Electrical Installation"...
  • Page 82 www.westercom.eu Mounting Figure 54: MRX – dimensions Mounting the device to the DIN rail How to mount the router to a DIN rail: Position the device at the DIN rail as seen in the following diagram. There are two snap-in hooks at the upper DIN rail groove. Hook them into place behind the upper edge of the DIN rail when connecting the device.
  • Page 83 www.westercom.eu Mounting Fold down the device perpendicular to the DIN rail until the lower, flexible snap-in hook engages in the DIN rail. (similar representation)  The router is now readily mounted. Connecting the power supply  The device has already been mounted to the DIN rail. ...
  • Page 84 www.westercom.eu Mounting Removing the device from the DIN rail How to uninstall the router from a DIN rail in a switch cabinet:  You will need a flat-blade screwdriver (max. 3.5 mm width).  The power supply of the switch cabinet is switched off and secured against being switched on accidentally.
  • Page 85 www.westercom.eu Mounting  The plastic spring of the snap-in hook is stretched. While you hold the plastic spring apart with the lower snap-in hook, pull the device away from the DIN rail. Un-hook the device and take it off perpendicularly to the DIN rail. ...

  • Page 86: Commissioning

    www.westercom.eu Commissioning Commissioning This chapter describes how to activate the MRX, i.e. how to connect it to a PC, and how to prepare it for the configuration. Inserting the SIM card (only MRX LTE or MRX LAN with MRcard PL or PL450 with SIM card slot at the front, for MRcard PLS and second SIM card slot of the MRcard PL450, refer to next section).
  • Page 87 How to connect the MRX to a cellular antenna.  The power supply is disabled.  You will need a suitable cellular antenna (available from INSYS icom).  When selecting and mounting the antenna, make sure to comply with CE conformity.
  • Page 88 www.westercom.eu Commissioning Configuring the MRX  The device is connected to the PC.  The power supply of the device is enabled and the device is ready for operation (Info LED doesn't light red any more).  You have the required access rights to change the IP address of the network card to which the MRX is connected.

  • Page 89: Operating Principle

    www.westercom.eu Operating Principle Operating Principle This chapter describes how to operate and configure the router. There are different options for configuration and operation: • Via a web-based user interface (UI). This is displayed and operated using a web browser. Operation via UI and access via HTTPS protocol are described in the following.
  • Page 90 www.westercom.eu Operating Principle Access to the user interface How to access the user interface basically.  The device is ready for operation and you have access to it (refer to Commissioning section).  The device is in delivery condition and default settings. Start the web browser and enter the host name “https://insys.icom”...

  • Page 91: Access Via Https Protocol

    www.westercom.eu Operating Principle 12.2 Access via HTTPS Protocol The user interface only allows secure configuration using the HTTPS protocol in default settings. The HTTPS protocol allows an authentication of the server (i.e. the router) as well as an encryption of the data transmission. It is not recommended to enable access via the HTTP protocol.

  • Page 92: Authentication Via An Own Certificate Structure

    www.westercom.eu Operating Principle 12.2.2 Authentication via an own certificate structure A more secure alternative is to use your own certificate structure and load a self-generated certificate/key combination onto the router and then use this for access via an HTTPS connection. Proceed as follows in coordination with the IT security department of your company to ensure a secure availability of the router: 1.

  • Page 93: Profiles And Profile Handling

    www.westercom.eu Operating Principle 12.3 Profiles and Profile Handling The configuration of the router is called profile. Several profiles can be stored on one device so that the configuration of a device can be changed quickly. 12.3.1 Term definitions The following terms or conditions are to be distinguished for profiles: •...

  • Page 94: Using Several Profiles

    www.westercom.eu Operating Principle 12.3.3 Using several profiles The versatile possible applications of the router suggest the use of several profiles. The following sections describe the profile handling. 12.3.3.1 Storing a profile When settings made in the opened profile are stored, they will not become effec- tive in the running profile with this.
  • Page 95 www.westercom.eu Operating Principle 12.3.3.4 Creating a profile A new profile can be created from: • the running profile • stored profiles • the default settings A new profile can be created: • In the new UI in the "Administration" menu on the "Profiles" page by clicking (Add) button and selecting "Create new profile"...

  • Page 96: Ascii Configuration

    www.westercom.eu Operating Principle 12.3.3.7 Deleting a profile A stored profile can also be deleted again. A stored profile can be deleted: • In the new UI in the "Administration" menu on the "Profiles" page by clicking (Edit) button of the respective profile and a click on the (Delete) button •...

  • Page 97: Profile Mode

    www.westercom.eu Operating Principle 12.3.5 Profile Mode The router provides two profile modes from firmware version 5.7, the permanent and the volatile profile mode. The configuration of this function is currently only available in the classic web interface. The router is in permanent profile mode in normal operation. All modifications are permanently saved and survive a restart.

  • Page 98: Maintenance, Troubleshooting And Repair

    If a failure occurs during the operation of the product, you will find troubleshooting tips on our support page (https://www.insys-icom.com/en/help/). If you need fur- ther support, please contact your reseller or INSYS icom. You can contact our sup- port team via e-mail under support@insys-icom.de.

  • Page 99: Waste Disposal

    www.westercom.eu Waste Disposal Waste Disposal 14.1 Repurchasing of Legacy Systems According to the new WEEE guidelines, the repurchasing and recycling of legacy systems for our clients is regulated as follows: Please send those legacy systems to the following address, carriage prepaid: Frankenberg-Metalle Gaertnersleite 8 D-96450 Coburg...

  • Page 100: Declaration Of Conformity

    Declaration of Conformity 15.1 Devices with Radio Technology Hereby, INSYS icom GmbH declares that the device type MRX is in compliance with Directives 2014/53/EU and 2011/65/EU. The full text of the EC Declaration of Conformity is available under the following Internet address: www.insys-icom.com/manual...

  • Page 101: Fcc Statement

    www.westercom.eu FCC Statement FCC Statement Note: Certain variants of this device comply with part 15 of the FCC Rules (this is indicated by the FCC symbol on the label). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation.

  • Page 102: Export Restriction

    www.westercom.eu Export Restriction Export Restriction The chip sets for analogue modems and cellular radio adapters used by INSYS icom GmbH are subject to export restrictions as per US ECCN classification (5A991). Therefore, it is not allowed to export these communication devices into the follow- ing countries (at the time when this publication has been issued): Cuba, Iran, North Korea, Sudan, Syria The currently effective country list can be found in section „Country Group E“...

  • Page 103: Glossary

    www.westercom.eu Glossary Glossary This describes the most important terms and abbreviations of this manual. APN: Access Point Name, computer name that provides cellular subscribers of the GPRS network with Internet access. AT command: Commands to devices such as modems to set up this device. Broadcast: Data packet that is sent to all participants of a network.
  • Page 104 www.westercom.eu Glossary IP net: An Ethernet-based interface that can become a LAN or a WAN inter- face. LAN: Local Area Network; a network of computers which are located rela- tively close to each other. LAN interface: An interface that is assigned to a local network (plant network, machine network, local network);...
