insys icom MRX LTE Quick Installation Manual

ENGLISH

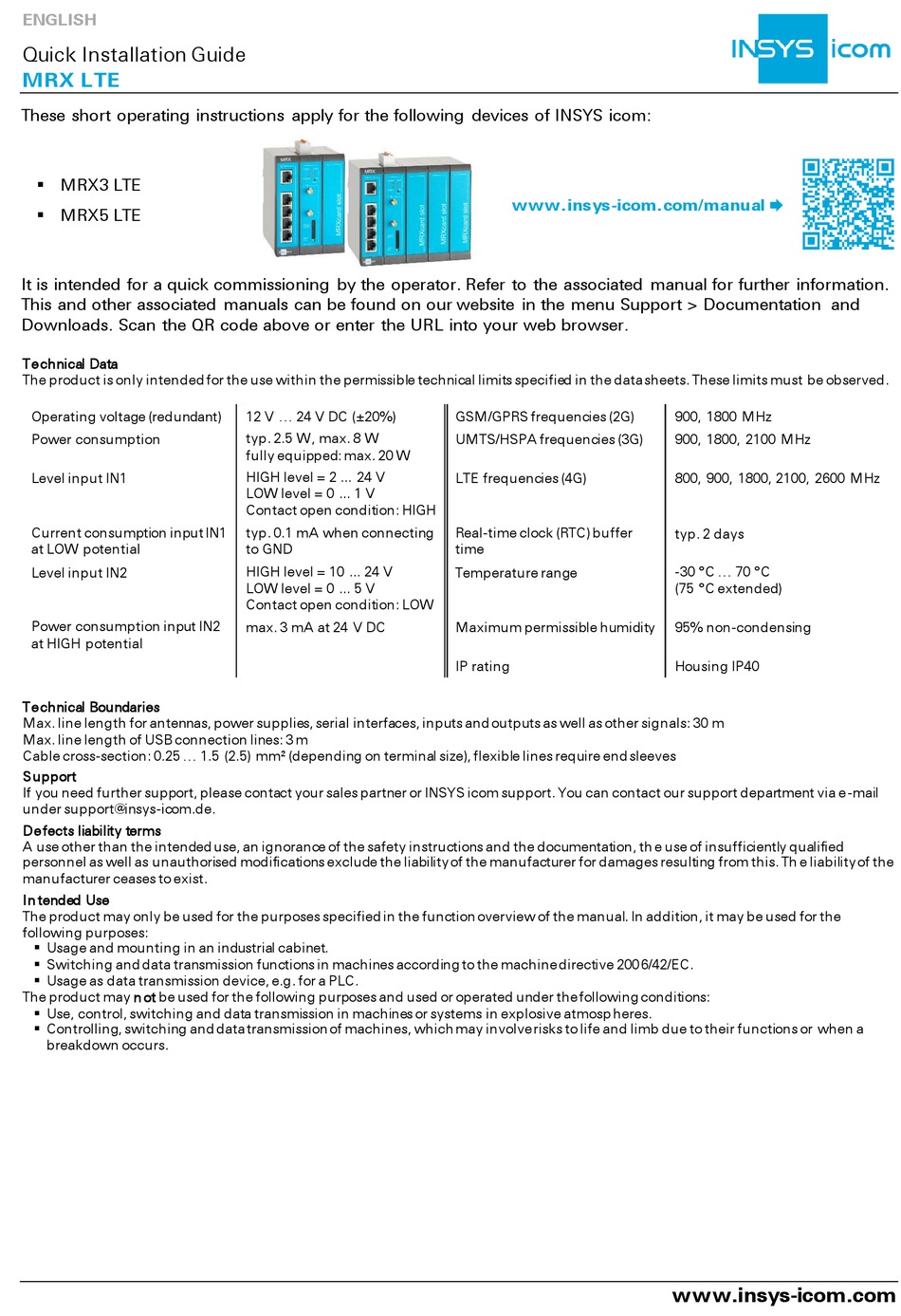

Quick Installation Guide

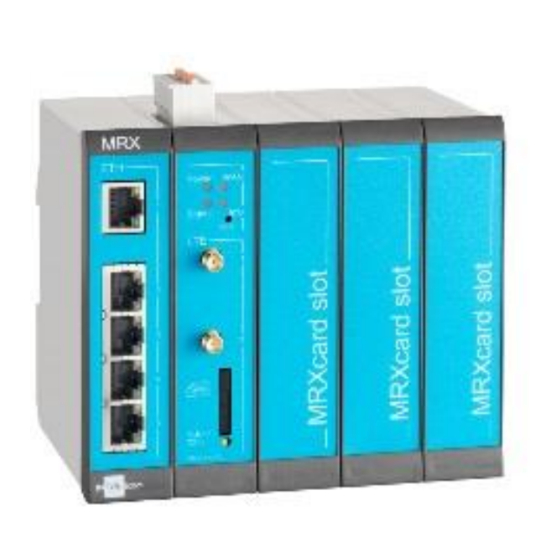

MRX LTE
These short operating instructions apply for the following devices of INSYS icom:
▪ MRX3 LTE
▪ MRX5 LTE
It is intended for a quick commissioning by the operator. Refer to the associated manual for further information.
This and other associated manuals can be found on our website in the menu Support > Documentation and
Downloads. Scan the QR code above or enter the URL into your web browser.
Technical Data
The product is only intended for the use within the permissible technical limits specified in the data sheets. These limits must be observed.
Operating voltage (redundant)
Power consumption
Level input IN1
Current consumption input IN1
at LOW potential
Level input IN2
Power consumption input IN2
at HIGH potential
Technical Boundaries
Max. line length for antennas, power supplies, serial interfaces, inputs and outputs as well as other signals: 30 m
Max. line length of USB connection lines: 3 m
Cable cross-section: 0.25 ... 1.5 (2.5) mm² (depending on terminal size), flexible lines require end sleeves
Support
If you need further support, please contact your sales partner or INSYS icom support. You can contact our support department via e -mail
under support@insys-icom.de.
Defects liability terms
A use other than the intended use, an ignorance of the safety instructions and the documentation, th e use of insufficiently qualified
personnel as well as unauthorised modifications exclude the liability of the manufacturer for damages resulting from this. Th e liability of the
manufacturer ceases to exist.
In tended Use
The product may only be used for the purposes specified in the function overview of the manual. In addition, it may be used for the
following purposes:
▪ Usage and mounting in an industrial cabinet.
▪ Switching and data transmission functions in machines according to the machine directive 2006/42/EC.
▪ Usage as data transmission device, e.g. for a PLC.
The product may n ot be used for the following purposes and used or operated under the following conditions:
▪ Use, control, switching and data transmission in machines or systems in explosive atmosp heres.
▪ Controlling, switching and data transmission of machines, which may involve risks to life and limb due to their functions or when a
breakdown occurs.
12 V ... 24 V DC (±20%)
typ. 2.5 W, max. 8 W
fully equipped: max. 20 W
HIGH level = 2 ... 24 V
LOW level = 0 ... 1 V
Contact open condition: HIGH
typ. 0.1 mA when connecting
to GND
HIGH level = 10 ... 24 V
LOW level = 0 ... 5 V
Contact open condition: LOW
max. 3 mA at 24 V DC
www.insys-icom.com/manual 
GSM/GPRS frequencies (2G)
UMTS/HSPA frequencies (3G)
LTE frequencies (4G)
Real-time clock (RTC) buffer
time
Temperature range
Maximum permissible humidity
IP rating
900, 1800 MHz
900, 1800, 2100 MHz
800, 900, 1800, 2100, 2600 MHz
typ. 2 days
-30 °C ... 70 °C
(75 °C extended)
95% non-condensing
Housing IP40
www.insys-icom.com
