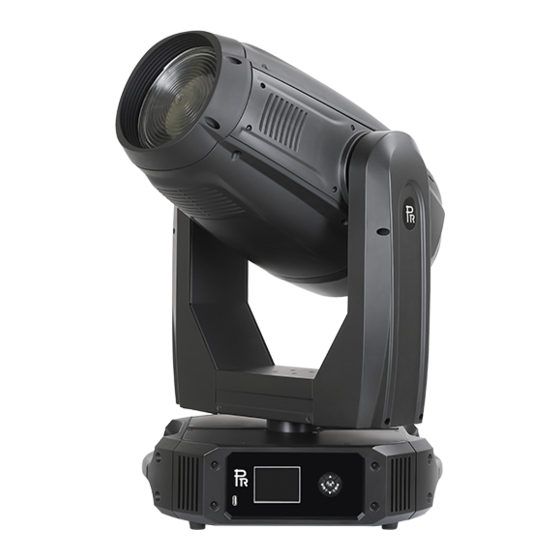

- Page 1 PR-6000 WASH(1400W) PR-2935 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
-
Page 2: Table Of Contents
Any future technical change in the user manual won’t be with any notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty... -
Page 3: Safetyand Warnings
1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles Warning User Electrical Protective Flames High Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector. -
Page 4: Instructions
There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord ● supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from power ●... -
Page 5: Appearance
●LUBRICATION To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised.. ●TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. - Page 6 Note: 1. the distance between the foot of the base and the front lens cover(the head facing downward) distance between mounting truss and the front lens cover( the head facing downward) 3. The maximum diameter of the rotating head ( minimum spacing between fixtures) Clamp Warning!
- Page 7 Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off. The earth wire(yellow/green) must be connected to the ground. And electrical connection ●...
-
Page 8: Setupand Configuration
DMX TERMINATOR CONNECTION Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket on the last unit in the chain. PIN 2 PIN 3 ● ALIGNMENT/INSTALLATION/REPLACEMENT OFALAMP Before installation/replacement/alignment of a lamp, disconnect the unit from the power and let it cool first. Lock Tilt in the figure below and open the lamp cover after its 4 screws are loosened. - Page 9 The configuration and start address can be set conveniently via push button and color touch screen. To view or change its setup, touch any white area of the screen or push the key OK for more than 3 seconds to unlock the display(While ►...
-
Page 10: Operationmenu
MASTER/SLAVE MODE ● Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. - Page 11 Wireless Only Wireless First Wireless In/XLR Out ARTNET Only ARTNET/XLR Out sACN Only sACN In/XLR Out Normal time out Loss of DMX Hold Last Value OffAfter Delay Display Mode OnAlways Invert OFF Display Config Display Invert Invert ON InvertAuto English Language Setting Chinese Input Password123...
-
Page 12: Dmx Protocol
Boot =XXX System= XXX Driver Board 2 Boot =XXX System= XXX Driver Board 3 Boot =XXX System= XXX Fan Board Boot =XXX Electronic SN= Electronic SN ************ RDM Device Label RDM Device Label PR-6000 W/F1400W ANSI E1.20 RDM Fan Status XYEncoder Lamp Fan Error Strobe... - Page 13 Dimmer in 16 bit adjustment CYM macros The following functions will disable CMY, CTO, color wheel1 and color wheel2 No function Color macro1 Color macro2 Color macro3 Color macro4 Color macro5 Color macro6 Color macro7 Color macro8 Color macro9 Color macro10 Color macro11 Color macro12 Color macro13...
- Page 14 Color macro40 Color macro41 Color macro42 Color macro43 Color macro44 Color macro45 Color macro46 Color macro47 Color macro48 Color macro49 Color macro50 Color macro51 Color macro52 Color macro53 Color macro54 Color macro55 Color macro56 Color macro57 Color macro58 Color macro59 Color macro60 Color macro61 Color macro62...
- Page 15 Color macro84 Color macro85 Color macro86 Color macro87 Color macro88 Color macro89 Color macro90 Color macro91 Color macro92 Color macro93 Color macro94 Color macro95 Color macro96 CMY color mixing fade from slow toast Cyan Cyan (Linear 0-100%) Cyan in 16 bit Cyan 16 bit adjustment Yellow Yellow (Linear 0-100%)
- Page 16 Color5(Pink)/Color6(Orange) Color6(Orange) Color6(Orange)/ Color7(UV) Color7(UV) Color7(UV)/Open Open Clockwise rainbow effect from slow to fast Anti-clockwise rainbow effect from slow to fast Color wheel1 in 16bit Color wheel 1continuous positioning ,16bit adjustment Color wheel2 Continuous positioning Indexing 0-360° Positioning Open /Color1(Deep Red) Color 1(Deep Red) Color1(Deep Red )/Color2(Deep Magenta ) Color2(Deep Magenta )
- Page 17 Iris macro5(Macro2 at random) （from slow to fast） Iris macro 6(Macro3 at random) （from slow to fast） Open Focus Linear Focus Focus in 16 bit Focus 16 bit adjustment Zoom Linear Zoom Zoom in 16 bit Zoom 16 bit adjustment Pan movement Pan in 16 bit Pan movement in 16 bit...
-
Page 18: Signs On The Touch Screen
Dimmer/ strobe reset Zoom/Focus /Frost reset Other(Iris)Reset Total reset Reserved Lamp off Reserved Remark: 1. The projector can’t be turned on within 5 minutes after the lamp-off. 2. Fan error can cause lamp-off. 3. “Speed Mode” means Pan and Tilt will move from Point A to Point B at their respective maximum speeds.”Time Mode” means both Pan and Tilt will arrive at designated point at the same time. -
Page 19: Technical Data
Color Wheel 1 Timeout/magnet Sensor Check if wiring, positioning parts and motors are normal Timeout/magnet Sensor Check if wiring, positioning parts and motors are normal Color Wheel 2 Timeout Check if wiring and power supply are normal Dimmer Timeout/magnet Sensor Check if wiring, positioning parts and motors are normal Focus Timeout/magnet Sensor... - Page 20 Deep Red Light cyan Yellow Orange Deep magenta Deep cyan Light Green Light Magenta Pink Blue Green Light Yellow Color wheel2 Color wheel1 0-100% linear CTO ZOOM DMX linear zoom DIMMER 0-100% linear dimmer STROBE Double shutter blades, 0.3~25 F.P.S...
- Page 21 HEAD MOVEMENT Pan 540º, Tilt 270º with auto position correction BEAMANGLE linear zoom 15°～ 60°with 16 bit function NOISE Less than 45 dBA CONTROL DMX512, 5 pin interfaces RDM andArt-Net controls with options for RJ45 interfaces, wireless DMX control and sACN protocol 19channels in short mode, 24channels in standard mode and 29channels in extended mode Self-test mode OTHER FUNCTION...
-
Page 22: Circuitdiagram
LIGHT OUTPUT: CIRCUITDIAGRAM... -
Page 24: Component Order Codes
12. COMPONENT ORDER CODES NAME CODE NUMBER REMARKS SWITCHING POWER SWITCH 230020689 POWER FILTER 193020014 THERMAL SWITCH 190010206 ELECTRONIC BALLAST (1400W) 040070144A LAMP(OSRAM 1400W) 100070047 Lok-it！1400W/PS OSRAM IGNITER 040090066 LAMP FAN1 030060117 LAMP FAN2 030060119 HEAD FAN 030060120 STROBE FAN 030060117 CMY FAN 030060119... -
Page 25: Ppendix
Appendix: SOME ITEMS REQUIRING ATTENTION AS FOR THE USE OF DISCHARGE LAMP For the effective extension of the lifespan of discharge lamp, some factors impacting its lifespan are specially listed below, based on manufacturing technology and working mechanism of discharge lamps., physical attributions of the lamps including lamp striking theory( ignited by focused high voltage---highly pressurized air broken down and burning---lamp on at high temperature with thermal protection--- stable running) and lamp off theory( lamp off power ---lamp off at high temperature and thermal protection-highly pressurized air vaporizing evenly----completion of lamp... - Page 26 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. CounterfeitingWill be Prosecuted! P/N: 320021303...
