- Page 1 XRLED 700-W BWS PR-8173 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
-
Page 2: Table Of Contents
INDEX 1. PRODUCT SUMMARY …………………………………………………………………………………………… 2. SAFETYAND WARNINGS ………………………………………………………………………………………… 3. INSTRUCTIONS …………………………………………………………………………………………………… 4. APPEARANCE ………………………………………………………………………………………………… …… 5. INSTALLATION …………………………………………………………………………………………………… 6. SETUPAND CONFIGURATION …………………………………………………………………………………… 7. OPERATION MENU ……………………………………………………………………………………………… 8. DMX PROTOCOL ………………………………………………………………………………………………… 9. ERROR MESSAGES…………………………………………………………………………………………… 10. TECHNICAL DATA ………………………………………………………………………………………………… 11. CIRCUIT DIAGRAM ………………………………………………………………………………………………... -
Page 3: Product Summary

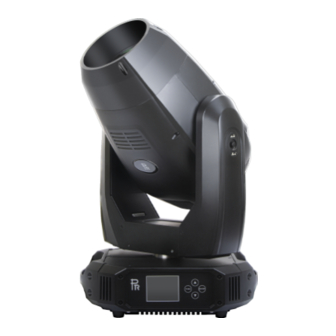

Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty. 1. PRODUCT SUMMARY XRLED 700-W BWS is a Three in One(Beam, Spot and Wash modes) fixture using 350W LED engine. Super wide front lens 148mm, wide and linear beam angle 4°～40°, up to 30000lux at distance of 10m. -
Page 4: Instructions
Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a ● projector while covers(housing)are off . Keep the lamp clean and do not touch it with bare hands. ● While operating it, wear protective items. ●... -
Page 5: Appearance
and do not touch optical parts with bare hands. Before any maintenance and cleaning, please ensure the project is off the power. ● Only qualified person is allowed to do maintenance. ● During maintenance and before maintenance, the projector must be off power. ●... - Page 6 Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked. Warning Please run the safety cord through its 2 holes for Note: safety 1.
- Page 7 Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off. The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in accordance with ●...
-
Page 8: Setupand Configuration
Open the head cover after locking the Tilt and loosening 6 fast-fit screws of the cover and the structures as illustrated by the above figures will be seen. For the rotating gobos: Take out the rotators by hand and remove the spring and gobo. Place a new gobo into the rotator and put back the spring. - Page 9 DMX STARTADDRESS ● Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller.
-
Page 10: Operation Menu
7. OPERATION MENU 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL LEVEL 1-488（short mode） Address 1-483（STD mode） DMX Address 1-478（Extended mode） Default IPAddress 2.X.X.X /10.X.X.X IP Address Custom IPAddress X.X.X.X SubNet Mask X.X.X.X ArtNet Universe 0-255 sACN Universe 1-63999 Really Reset? Total Reset Reset Confirm or Cancel... - Page 11 Wireless First Wireless In/XLR Out ARTNET Only ARTNET In/XLR Out sACN Only sACN In /XLR Out Normal time out Loss of DMX Hold Last Value OffAfter Delay Display Mode OnAlways Invert OFF Display Config Display Invert Invert ON InvertAuto English\Chinese Language Setting Celsius Degree Temperature Unit...
- Page 12 means both Pan and Tilt will arrive at designated point at the same time. It's advised Time Mode be used if the projector runs circles or in oblique lines. Invert Settings CMYInvert OFF/ ON Gamma Curves 2.0/2.2/2.4/2.6 1200/2400/4800/10000/12000/15000/2 Dimmer LED refresh rates 0000/25000Hz Dimmer speeds Fast/Medium/Slow...
- Page 13 DMX Value Base Fan Fan Error Lens Fan xxx Head Fan Light source Fan xxx Channel Value Strobe Dimmer CYM Macro Cyan Service Yellow Magenta Manual Effect Control Color Wheel Fixed Gobo Wheel XXX Rot. Gobo Wheel XXX Rot. Gobo Rotation XXX Prism Prism Rotation Frost...
-
Page 14: Dmx Protocol
Hold Time Delay Unit ms/s/min Link to Step Channel Value Strobe Dimmer CYM Macro Cyan Yellow Magenta Color Wheel Edit Static Scene Paste? Fixed Gobo Wheel XXX Confirm/Cancel Rot. Gobo Wheel XXX Rot. Gobo Rotation XXX Prism Prism Rotation Frost Effect wheel Focus Zoom... - Page 15 Open 064-087 Open / (Red) 088-091 092-095 Red /Light Green 096-099 Light Green 100-103 Light Green / Blue 104-107 Blue 108-111 Blue / Cyan 112-115 Cyan 116-119 Cyan / Yellow 120-123 Yellow 124-127 Yellow /Magenta 128-131 Magenta 132-135 Magenta /Orange 136-139 Orange 140-143...
- Page 16 Open 230-255 White 000-015 Gobo1 016-031 Gobo2 032-047 Gobo3 048-063 Gobo4 064-079 Gobo5 080-095 Gobo6 096-111 Gobo7 112-127 Fixed Gobo Clockwise rotation from slow to fast 128-156 Wheel Anti Clockwise rotation from slow to fast 157-185 Shake effect 1 from slow to fast 186-195 Shake effect 2 from slow to fast 196-205...
- Page 17 Stop Rotation(Clockwise from slow to fast) 129-191 Stop Rotation(Anti- Clockwise from slow to fast) 193-255 000-09 Frost 010-255 Frost In 000-010 Effect Wheel Effect wheel in 011-020 Effect wheel rotation from slow to fast 21-255 Focus Linear Focus 000-255 Focus Fine Focus in 16 bit precision 000-255 Zoom...
-
Page 18: Error Messages
Pan & Tilt Speed Mode 090-094 Pan & Tilt Time Mode 095-099 Reserved 100-139 Pan & Tilt Reset 140-149 Color System Reset 150-159 Gobo Wheel Reset 160-169 Reserved 170-179 Zoom/Frost/Focus/Prism Reset 180-189 Reserved 190-199 Total Reset 200-209 Reserved 210-255 Remarks: 1. -
Page 19: Technicaldata
10. TECHNICALDATA ELECTRIC PARAMETERS Input voltages : 100V~240VAC，50/60Hz Input Power : 550W @ 220V Power factor : PF〉0.95 Max. Current: ***A 待补 @ 220V （ ） LIGHT SOURCE SPECIFICATIONS Power consumption : 350W, White LED module Color Temperature : 8000K Manufacturers Rated Lamp Life : 20000hour CRI : Ra≥70 COLORS... - Page 20 FOCUS DMX linear focus ZOOM DMX linear focus DIMMER dimming 0-100% linear with IRIS 5-100% linear with macros STROBE Electronic strobe 0.2~25 F.P.S, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds HEAD MOVEMENT Pan 540º, Tilt 270º with auto position correction BEAMANGLE Beam/Spot Mode : 4°- 40°...
- Page 21 NET WEIGHT 22Kg AMBIENT TEMPERATURE Temperature at maximum 40°C SIZES LIGHT OUTPUT...
-
Page 22: Circuit Diagram
Wash mode 待补 11. CIRCUIT DIAGRAM... -
Page 23: Component Order
12.COMPONENT ORDER CODES... - Page 24 待补 （ ）...
- Page 26 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. CounterfeitingWill be Prosecuted! P/N:320021553...
