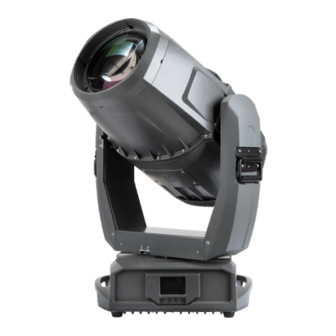

AQUA Laser 500 BWS
PR-8357
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA Laser 500 BWS and is the answer not in the manual?

Questions and answers

Summary of Contents for PR Lighting AQUA Laser 500 BWS

  • Page 1 AQUA Laser 500 BWS PR-8357 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
  • Page 2: Table Of Contents

    Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.
  • Page 3: Safetyand Warnings

    1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Goggles Warning Flames Manual shock Gloves Temperature ●...
  • Page 4: Instructions

    ●All power cords must conform to related safety and regulations. ●If a projector is not water and dust proof, while being operated it should not be under rains or in humidity to avoid short circuit. ●Do not switch on and off a projector constantly in very short intervals, otherwise the light source’s and other electrical parts’life will be shortened .
  • Page 5: Appearance

    ●To avoid sunlight or other light penetrating into the head via the front lens, resulting in high temperature internally causing damages to a projector. Before power-off, please use Tilt channel to move the head and make the head facing downward. ●...
  • Page 6 Note: 1. the distance between the foot of the base and the front lens cover(the head facing downward) 2. the distance between mounting truss and the front lens cover( the head facing downward) 3. The maximum diameter of the rotating head ( minimum spacing between fixtures) Warning! For safety, please run the safety cord...
  • Page 7 DMX CONTROLCONNECTION: ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.
  • Page 8: Gobo Replacement

    Adjust the light source as shown in figure3 Before the removal of the light source, unplug the light source wires.And plug light source wires after a new one is in. Don’t touch the surface of the lens of the lamp with bare hands so as not to impair the beam output. ●...
  • Page 9: Setupand Configuration

    Replacement of the Gobos: Open the chamber cover after loosening 4 screws. Select the rotator for replacement of gobo. Push the rotator at the opposite side of its gear till it is off the holder of the rotating gobo wheel. Remove the rotator gently .
  • Page 10: Operation Menu

    DMX WIRELESS CONTROL(Only for fixtures with wireless control) ● The projector has wireless control function with wireless receiver module and antenna for remote control. The setup of it is below: UP or DOWN key to enter into the operation menu 1.
  • Page 11 ArtNet 0-255 ArtNet Universe sACN universe 1-63999 Really Reset? Total Reset Confirm or Cancel Really Reset? Pan&Tilt Reset Confirm or Cancel Really Reset? Colour System Reset Reset Confirm or Cancel Really Reset? Gobo Reset Confirm or Cancel Really Reset? Zo. Fo.Fr. Pr. Reset Confirm or Cancel Short Mode 23CH Standard Mode 28CH...
  • Page 12 InvertAuto English\Chinese Language Setting Celsius Degree Temperature Unit Fahrenheit Degree Un-Link Wireless Really Un-Link? Confirm or Cancel Factory Defaults Restore Defaults? Confirm or Cancel Pan DMX Invert OFF/ ON Tilt DMX Invert OFF/ ON PanTilt Swap OFF/ ON XYFeedback OFF/ ON Note: "Speed Mode"...
  • Page 13 Lamp hours XXX h Total hours XXXh Display Board= ×××C Pan board ×××C Tilt board ×××C Temperature Motor driverboard 1 ×××C Motor driverboard2 ×××C Light source driver board ×××C Light source= ×××C Sys. bootloader Display Board xxx xxx xxx xxx Pan board Software Version xxx xxx...
  • Page 14: Dmx Protocol

    Change Operation Mode? Preset Memory Confirm or Cancel Change Operation Mode? Stand-Alone Mode User Memory 1 Confirm or Cancel Change Operation Mode? User Memory 2 Confirm or Cancel Change Operation Mode? Static Scene Confirm or Cancel Channel Value Strobe Dimmer CMY macro Cyan Yellow...
  • Page 15 Short Standard Extended FUNCTION DESCRIPTION mode Mode Mode Close Strobe Pulse strobe speed from slow to fast 001-127 128-255 Strobe speed from slow to fast Dimmer Linear dimming 000-255 (0-100%) 000-255 Dimmer Fine Dimmer in 16 bit Open 000-016 Yellow+ Magenta=Red 017-035 Yellow 036-054...
  • Page 16 192-255 Rotation,Anti-clockwise from fast to slow Color Wheel Fine Color Wheel in 16 Bit 0000-255 000-011 Open 012-015 Gobo1 016-019 Gobo2 Gobo3 020-023 024-027 Gobo4 028-031 Gobo5 032-035 Gobo6 Gobo7 036-039 040-043 Gobo8 044-047 Gobo9 048-051 Gobo10 Gobo11 052-055 056-059 Gobo12 060-063 Gobo13...
  • Page 17 202-204 Shake effect 11 from slow to fast Shake effect 12 from slow to fast 205-207 208-210 Shake effect 3 from slow to fast 211-213 Shake effect14 from slow to fast 214-216 Shake effect 15 from slow to fast Shake effect 16 from slow to fast 217-219 220-222 Shake effect 17 from slow to fast...
  • Page 18 Shake of Gobo 11 from slow to fast 240-247 Shake of Gobo 12 from slow to fast 248-255 Gobo Indexing(0~540degrees) 000-128 Rotation (Clockwise From slow to Fast) 129-188 Gobo Rotation Stop 189-195 Rotation (Anti-ClockwiseFromslowtoFast) 196-255 Gobo Rotation Gobo Rotation in 16 Bit 000-255 Fine 000-016...
  • Page 19: Error Message

    Reserved 059-089 Pan & Tilt Speed Mode 090-094 095-099 Pan & Tilt Time Mode 100-139 Reserved 140-149 Pan & Tilt Reset Color System Reset 150-159 160-169 Gobo Wheel Reset 170-179 Reserved Focus/Prism /Zoom/Frst Reset 180-189 Reserved 190-199 200-209 Total Reset 210-255 Reserved Remarks:...
  • Page 20: Signs On The Touch Screen

    Light source driver board Acceleration Sensor Error Check signal wire Lamp on Timeout Check if he lamp is damaged Lamp Life Timeout Warning Lamp Off[Fan Error] Error Check if all fans are normal Time IC Error 9. SIGNS OF THE TOUCH SCREEN Error Messages Option Settings Address...
  • Page 21 Fixed gobo wheel Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Gobo Rotating gobo wheel Gobo Gobo Gobo Gobo Gobo Gobo Gobo...
  • Page 22: Other Functions

    Movements Pan (0°-540°),Tilt( 0°-270°) with auto positioning correction function Beam angle Beam/Spot mode angle:0.8°-26° Wash mode : 1.8°-30° Unique super wide angle/under wash mode : 38°-60° Control International standard DMX 512 signal ,5-pin XLR connectors Short Mode 23 channels,standard Mode 28 channels, extended mode 31 channels Self test mode Other functions Pan and Tilt speeds adjustable...
  • Page 23: Light Output

    Base installation and its sizes: (unit: mm) Light output...
  • Page 24: Circuit Diagram

    11. CIRCUIT DIAGRAM...
  • Page 26: Component Order Codes

    12. COMPONENT ORDER CODES NAME CODE NUMBER SWITCHING POWER SUPPLY 192010240 LIGHT SOURCE 150020348 HEAD FAN 030060116 CHAMBER FAN 030060052A LENS FAN 030060075 LIGHT SOURCE FAN 030060121 BASE FAN 030060075 TILT BELT 030040246B PAN BELT 030040278B FOCUS MOTOR 030040243A FIXED GOBO WHEEL MOTOR 030040221C COLOR WHEEL MOTOR 030040221C...
  • Page 28 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. CounterfeitingWill be Prosecuted! P/N: 320021667...
