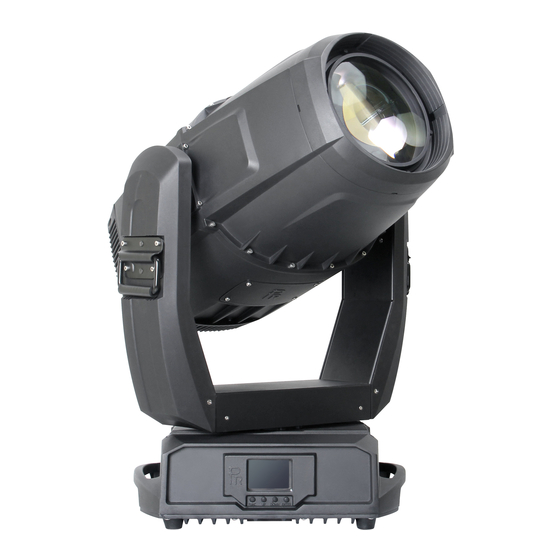

AQUA MARINE 580 BEAM
PR-2568
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA MARINE 580 BEAM and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting AQUA MARINE 580 BEAM

Summary of Contents for PR Lighting AQUA MARINE 580 BEAM

  • Page 1 AQUA MARINE 580 BEAM PR-2568 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.

  • Page 4: Instructions

    There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...

  • Page 5: Appearance

     Make sure the lamp is within its lifespan Beam appears dim, Low in brightness  Remove dust or grease from the lenses.  The project image appears to have a halo Carefully clean the lamp, optical lenses and other components. ...
  • Page 6 Clamp Safety Cord Handle Warming Please run the safety cord through the two safety cord holes. Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp.
  • Page 7 DMX CONTROL CONNECTION: ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.
  • Page 8 ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ● Please hold the projector well before adjustment/installation/replacement of lamp. As shown in figure1, remove fan cover of the head and heat sink. Removal/Installation of lamp as shown in figure2 Adjust the lamp as shown in figure3 Before the removal of the lamp, unplug the lamp wires.

  • Page 9: Setup And Configuration

    DANGER! Before replacement of gobos, the projector must be off the power. 5. SETUP AND CONFIGURATION FRONT PANEL OPERATION ● To browse through or change the projector ’s settings, press ENTER key for more than 3s(press ENTER key after power on) to key to enter the projector ’s function menus.

  • Page 10: Operation Menu

    STAND-ALONE MODE ● Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512. MASTER/SLAVE MODE ● Many projectors can run synchronously in the Master/Slave mode by linking them with each other.
  • Page 11 Short Mode Standard Mode DMX Channel Mode Extended Mode View Selected Mode Lamp Control OFF/ ON On By Power On OFF/ ON Lamp Control Control By DMX OFF/ ON Lamp ECO Power OFF/ ON XLR Only XLR First Config Settings Signal Select Wireless Only Wireless First...
  • Page 12 Settings Tilt DMX Invert OFF/ ON Pan Tilt Swap OFF/ ON XY Feedback OFF/ ON Note: "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode" means Pan/Tilt mode Speed/Time both Pan and Tilt will arrive at designated point at the same time.
  • Page 13 Speed Status Lamp Fan1 xxx on/off Lamp Fan2 xxx on/off Fan Status Head Fan xxx on/off Gobo Fan xxx on/off Lamp T Fan xxx on/off Lamp R Fan xxx on/off X Axis: XXX Y Axis: XXX Acceleration Sensor Z Axis: XXX Position: XXX Lamp off by fan Strobe XXX...
  • Page 14 Change Operation Mode? User Memory 1 Confirm or Cancel Change Operation Mode? User Memory 2 Confirm or Cancel Change Operation Mode? Static Scene Confirm or Cancel Strobe XXX Dimmer XXX Dimmer Fine XXX CYM Macro XXX Cyan XXX Cyan Fine XXX Yellow XXX Yellow Fine XXX Magenta XXX...

  • Page 15: Dmx Protocol

    Focus XXX Focus Fine XXX Pan XXX Pan Fine XXX Tile XXX Tilt Fine XXX Pan & Tilt Speed &Time Control Function Reset User Memory? Reset User Memory 1 Confirm or Cancel Reset User Memory? Reset User Memory 2 Init User Memory Confirm or Cancel Reset Static Scene? Reset Static Scene...
  • Page 16 006-024 Diffuser 025-255 Linear CTO CTO Fine 000-255 CTO in 16 bit 000-063 Indexing (0-360degrees) 064-068 Color1(Red) 069-073 Color2( Light Green) 074-078 Color3(Blue) 079-083 Color4(Cyan) 084-088 Color5(Yellow) 089-093 Color6(Magenta) 094-098 Color7(Orange) Color Wheel 099-103 Color8(Green) 104-108 Color9(Dark Blue) 109-113 Color10(UV) 114-118 Color11(Light Yellow) 119-123...
  • Page 17 200-203 Shake effect 4 from slow to fast 204-207 Shake effect 5 from slow to fast 208-211 Shake effect 6 from slow to fast 212-215 Shake effect 7 from slow to fast 216-219 Shake effect 8 from slow to fast 220-223 Shake effect 9 from slow to fast 224-227...
  • Page 18 193-255 Rotation(Anti- Clockwise from slow to fast) 000-016 White Prism 2 017-127 Prism3 128-255 Frost in 000-127 Prism2 Indexing Stop Prism2 Rotation 129-191 Rotation(Clockwise from slow to fast) Stop 193-255 Rotation(Anti- Clockwise from slow to fast) 000-255 Focus Linear focus 000-255 Focus Fine Focus in 16 bit precision...

  • Page 19: Signs On The Touch Screen

    hole is locked with the diffuser and CTO won’t move then. 8. SIGNS ON THE TOUCH SCREEN Lamp comtrol Option Settings Chinese-English Information Error messages Service Address Operation Mode User Memories Reset Config Settings 9.ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error.

  • Page 20: Technical Data

    Pan and Tilt Board Error Check signal wire Driver Board 1 Error Check signal wire Driver Board2 Error Check signal wire Acceleration Sensor Error Check signal wire Lamp on Timeout Check if he lamp is damaged Lamp Life Timeout Warning Lamp Off[Fan Error...
  • Page 21 Code No. Colors 092550001A 092550002 A Light Green 092550003 A Blue 092550004 A Cyan 092550005 A Yellow 092550006 A Magenta 092550007 A Orange 092550008 A Green 092550009 A Dark Blue 092550010 A 092550011 A Light Yellow 090071258 Dark Yellow FIXED GOBO WHEEL 1 fixed gobo wheel: 18 gobos +open bi-directionally rotatable, and shakable at variable speeds Gobo1...
  • Page 22 Gobo Replaceable, Gobo diameter: Φ22.5mm ,Gobo image diameter: Φ12mm PRISM/FROST 3 pcs of prisms which can be overlapped (8 facet circular prism+ 4facet linear prism) (16 facet circular prism+ frsot) And other optional prisms FOCUS DMX linear Focus DIMMER/STROBE 0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT Pan 540º...

  • Page 23: Circuit Diagram And Pcb Connections

    554x548x789(LXWXH) (Please see the figure below. Measurements with a margin of error, please refer to the actual product) SIZES Installation of Base Mounting Plate: LIGHT OUTPUT (lux) Flux 3440000 860000 215000 137600 95556 382222 DISTANCE 0.17 0.35 0.52 0.87 1.05 DIAMETER(m) 11.
  • Page 25 PCB CONNECTIONS ● 8-Channel SLAVE1 ：P/N230060735 8 Channel Driver Board 1 M1-1 Motor 24V Input M1-2 Motor Reserved M1-3 Motor Reserved M1-4 Motor HALL1-6Magnet Sensor M1-5 Motor HALL1-5 Magnet Sensor M1-6 Motor HALL1-4 Magnet Sensor M1-7 Motor HALL1-3 Magnet Sensor M1-8 Motor HALL1-2 Magnet Sensor HALL1-1 Magnet Sensor...

  • Page 26: Component Order Codes

    12. COMPONENT ORDER CODES NAME PART NO. QTY. REMARKS STEPPER MOTOR 030040073C STEPPER MOTOR 030040221C STEPPER MOTOR 030040224D STEPPER MOTOR 030040241A STEPPER MOTOR 030040242A screw mandrel Motor(with nut) 030040243A STEPPER MOTOR 030040244A STEPPER MOTOR 030040246A TURBO FAN 030060072 PWM SPEED ADJUSTING FAN 030060098 030060102 4 WIRE WATERPROOF FAN...
  • Page 28 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020954...
