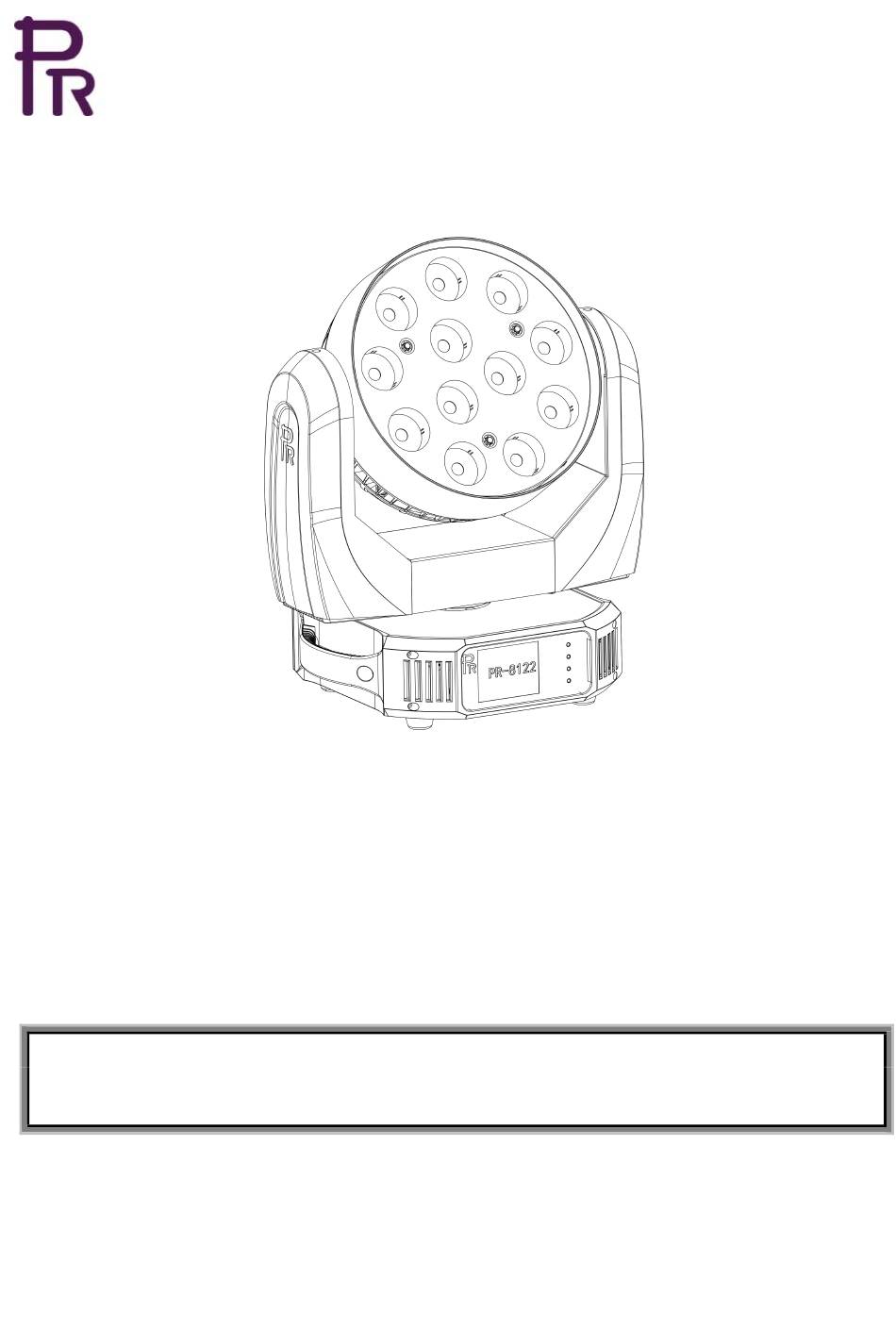

Page 1

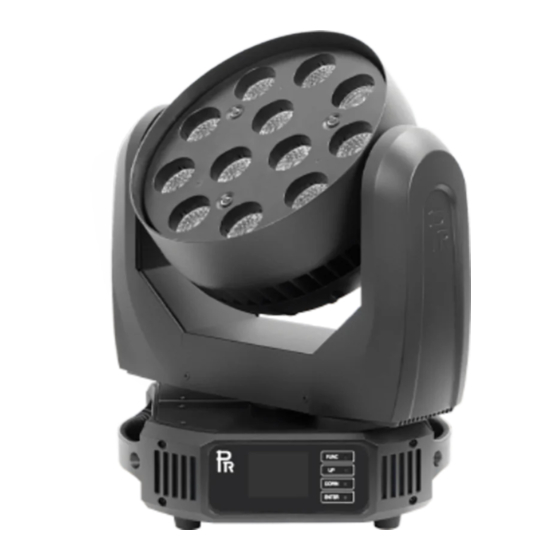

XLED 4012 PR-8122 This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference.
Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.
Page 3
NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles User Electrical Protective High Warning Flames Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector. Should there be any damage ●...
Page 4
There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord ● supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure a projector is disconnected from power ●...
TROUBLESHOOTING ● PROBLEM ACTION Check if the fuse is burned Check if the power cord is connected well Check if the switching power supply is bad or not connected well. A Aprojector can’t be switched on professional technician is required for the repair Check if the control board is connected well.
Page 6
Warning: For safety, please run the safety cord through the hole and lock it well. Clamp Safety cord Take 2 clamps and 1 the safety cord out from the package and mount 2 clamp on the BOTTOM of fixture with 4 retainers attached to the clamp.
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.
Press button UP or DOWN to change the parameters (increase or decrease the numbers) Press button FUNC, it will return to the upper menu one by one. If the button not pressed, the system will go back to display status automatically.
Reset User Memory 1 Reset User Memory? Input Password123 Reset User Memory 2 Reset User Memory? Input Password123 Init User Memory Reset Static Scene Reset Static Scene? Input Password123 7. DMX PROTOCOL Short Standard Extended Function DMX Value Description mode mode mode 000-005...
Page 12
058-059 Color Macro19 060-061 Color Macro20 062-063 Color Macro21 064-065 Color Macro22 066-067 Color Macro23 068-069 LEE 4 (Medium BastardAmber) 070-071 LEE 10 (Medium Yellow) 072-073 LEE 19 (Fire) 074-075 LEE 26 (Bright Red) 076-077 LEE 58 (Lavender) 078-079 LEE 68 (Sky Blue) 080-081 LEE 71 (Tokyo Blue) 082-083...
Page 13
146-147 LEE 157 (Pink) 148-149 LEE 158 (Deep Orange) 150-151 LEE 162 (BastardAmber) 152-153 LEE 164 (Flame Red) 154-155 LEE 165 (Daylight Blue) 156-157 LEE 169 (Lilac Tint) 158-159 LEE 170 (Deep Lavender) 160-161 LEE 172 (Lagoon Blue) 162-163 LEE 179 (Chrome Orange) 164-165 LEE 180 (Dark Lavender) 166-167...
XY Speed 000-255 Pan and Tilt speed from fast to slow 000-199 Reserved Reset(reset after staying with value for Control 200-209 210-255 Reserved Remarks: Priority sequences: CTO>HSV>Macro 8. SIGNS OF THE TOUCH SCREEN Config Settings Option Settings Error Messages Information Service Address Operation Mode...
Page 15
3 dimmer speeds 4 dimmer curves Dimmer frequency 1.2K~2.5K adjustable for high speed 4K video cameras COLOR TEMPERATURE Color Temperature 2000K-10000K , linear control STROBE Electronic strobe,0.3-25 F.P.S. , with built-in pulse strobe LENSANGLE BeamAngle(1/2 peak) θ : 7 °~42° 1/10 Peak) θ: 17°~60°...
10. COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 030040174A PANAND TILT MOTORS 030040235B ZOOM MOTOR 030060122 POWER SUPPLYFAN 030060074C HEAD FAN 6190000017 SWITCHING POWER SUPPLY...
Page 20
PR LIGHTING LTD. 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320021470 Old Version:20240202 New Version:20240328...
