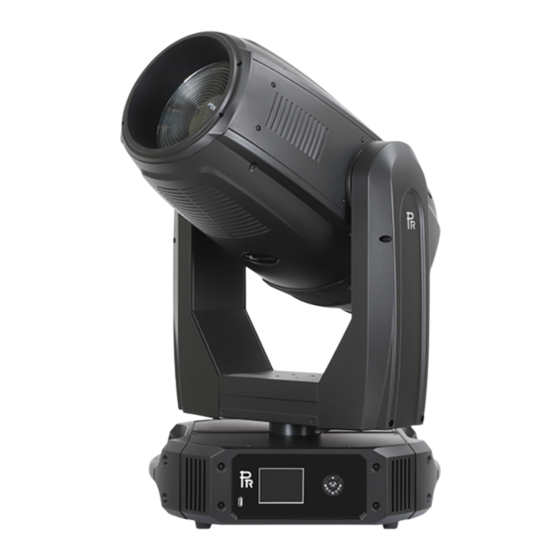

XR 1400 Wash
PR-2735
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1/26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-2735 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting PR-2735

Summary of Contents for PR Lighting PR-2735

  • Page 1 XR 1400 Wash PR-2735 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com 1/26...
  • Page 2 Any future technical changes in the user manual won’t be with any further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.
  • Page 4 There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...
  • Page 5 3. APPEARANCE Fresnel lens Front Cover of the head front and back covers of the head U arm cover Pan Lock handle in the base Front side cover of the head Tilt lock Back side cover of the head lamp cove During transportation, the head should be locked-Pan lock (5) and Tilt Lock(6) should be in LOCK position.

  • Page 6: Installation

    4. INSTALLATION RIGGING ● Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked. safety cord warning clamp please run the safety cord through safety cord hole for safety safety cord hole operation...
  • Page 7 DMX CONTROL CONNECTION: ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) or 3 pin XLR plugs and sockets.
  • Page 8 Insert a new lamp. Note: while placing a new lamp, do not touch the burner of the lamp with bare hands, otherwise the light output will be compromised. Fasten the 4 fast-fit screws after the lamp cover is on ). While using the lamp, please carefully read Important: The unit uses high voltage discharge lamp with external igniter( “INSTRUCTIONS”...

  • Page 9: Setup And Configuration

    5. SETUP AND CONFIGURATION FRONT PANEL OPERATION ● The projector configuration can be set conveniently via push buttons and color touch screen. To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than ►...
  • Page 10 Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press “Enter” for the menu of Un-link Wireless under the upper level menu of Config Settings , then the fixture is unlinked with the wireless transmitter.

  • Page 11: Operation Menu

    6. OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 1-512 DMX Address Default IP Address 2.X.X.X /10.X.X.X IP Address Address Custom IP Address X.X.X.X SubNet Mask X.X.X.X ArtNet Universe 0-255 Total Reset Really Reset? Pan&Tilt Reset Really Reset? Reset Colour System Reset...
  • Page 12 Dimmer Curve Linear/ inverse Square Law Defaults Restore Defaults? View DMX Values Lamp Hours Reset Lamp Hours Total Hours Temperature Information Software Version Electronic SN RDM Device Label Fan Status Encoder Strobe XXX Manual Effect Control Dimmer XXX … Service Pan XXX Tilt XXX Position Calibrations...

  • Page 13: Dmx Protocol

    7.DMX PROTOCOL Standard Extended Function DMX Value Basic mode Function Description mode mode 000-010 Close(Lamp Switches to 1200 watt mode after shutter is closed for 5seconds) Strobe 011-025 Open 026-225 Strobe speed from slow` to fast 226-246 Macro effect 247-255 Open 000-000 Dimmer...
  • Page 14 066-067 Colour Macro 30 LEE colour swatches 068-069 LEE 4 (Medium Bastard Amber) 070-071 LEE 10 (Medium Yellow) 072-073 LEE 19 (Fire) 074-075 LEE 26 (Bright Red) 076-077 LEE 58 (Lavender) 078-079 LEE 68 (Sky Blue) 080-081 LEE 71 (Tokyo Blue) 082-083 LEE 79 (Just Blue) 084-085...
  • Page 15 152-153 LEE 164 (Flame Red) 154-155 LEE 165 (Daylight Blue) 156-157 LEE 169 (Lilac Tint) 158-159 LEE 170 (Deep Lavender) 160-161 LEE 172 (Lagoon Blue) 162-163 LEE 179 (Chrome Orange) 164-165 LEE 180 (Dark Lavender) 166-167 LEE 181 (Congo Blue) 168-169 LEE 197 (Alice Blue) 170-171...
  • Page 16 104-107 Pink 108-111 Pink/ Orange 112-115 Orange 116-119 Orange / UV 120-123 124-127 UV/ White 128-191 Rainbow rotation speed from slow to fast 192-255 Rainbow reverse rotation speed from slow to fast Color wheel1 fine 000-25 Colour Continual positioning in 16 Bit precision 000-063 index 0-360°...
  • Page 17 Control/Config Setting s as ON via control panel. 020-024 Graphic display On 025-029 Graphic display Off 030-034 Reserved 035-039 Lamp power 1200W 040-044 Lamp power 1400W 045-089 Reserved 090-094 Pan/Tilt speed mode 095-099 Pan/Tilt time mode 100-129 Reserved 130-139 Lamp On 140-149 Pan/Tilt reset 150-159...

  • Page 18: Error Messages

    Option Settings Lamp Control Information Chinese/English Service Error Messages Operation Mode Address User Memories Reset Config Settings 9.ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type Correction...

  • Page 19: Technical Data

    Lapsed Time Timeout Time IC Error Lapsed time X days Use hours Setting successfully 10. TECHNICAL DATA INPUT VOLTAGES Input voltage 200V~240V AC，50/60Hz Input power 1700W @ 220V Current at maximum AC10.5A Power factor LAMP SPECIFICATIONS Lamp Lot-it 1400W/60/P28 Color Temperature 6000K Ceramic Stand Single-ended...
  • Page 20 λ=520±5nm 090070039A Light Yellow λ=485/525±5nm 090070035A Light Green λ=575±5nm 090070036A Deep Cyan λ=590±5nm 090070038A Light Cyan CTO: 0-100% Linear CTO system ZOOM DMX linear zoom DIMMER 0-100% Linearly adjustable STROBE Double blade strobe, 0.3-25 F.P.S . HEAD MOVEMENT Pan 540º , Tilt 270º with auto position correction BEAM ANGLE 12°...

  • Page 21: Operation Temperature

    HOUSING High temperature ABS, IP20 WEIGHT 46Kg OPERATION TEMPERATURE: Maximum ambient temperature: 40° C SIZES: LIGHT OUTPUT: 21/26...

  • Page 22: Circuit Diagram And Pcb Connections

    11. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ● 22/26...

  • Page 23: Pcb Connection

    PCB CONNECTION 8 channel motor driver board P/N 230060855 8 channel motor driver board M1-1motor 24V power input M1-2 motor Reserved M1-3 motor Reserved M1-4 motor Reserved M1-5 motor Reserved M1-6 motor HALL1-4 magnet sensor M1-7 motor HALL1-3 magnet sensor M1-8 motor HALL1-2 magnet sensor Thermal sensor...

  • Page 24: Component Order Codes

    12. COMPONENT ORDER CODES NAME PART NO. REMARK 030040262 PAN MOTOR TILT MOTOR 030040262 030040095A STORE MOTOR 030040186A DIMMER MOTOR COLOR WHEEL1 MOTOR 030040095A 030040215A COLOR WHEEL2 MOTOR 030040114A CMY MOTOR ZOOM MOTOR 030040221A 030040116A ANGLE LENS MOTOR 030060104 BASE FAN1 030060089A BASE FAN2 030060107...
  • Page 25 25/26...
  • Page 26 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020616...
