Summary of Contents for PR Lighting LS 150 Water

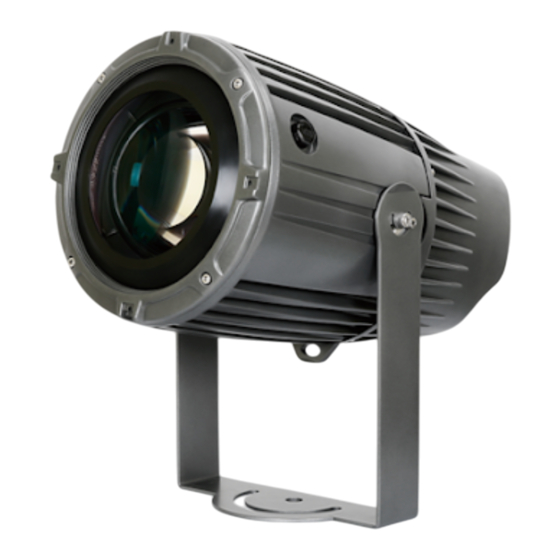

- Page 1 LS 150 Water PR-6810 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
- Page 2 Any future technical change in the user manual won’t be with any further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.
-
Page 3: Safety And Warnings
1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Goggles Flames Manual shock Gloves Temperature ●... - Page 4 electrical parts’ life will be shortened . ●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord supplied through the safety cord holes for safety support. ●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from power mains.
-
Page 5: Installation
Ambient temperature is too hot which makes the projector too hot, The brightness decreases obviously please take appropriate ventilation measures 3. APPEARANCE Body 4. INSTALLATION Safety Clamp Warning For safety, please run the safety cord through the safety cord hole and ensure it is tightened . - Page 6 ● TRANSPORTATION Before transportation, tighten both knobs after the arm and support are overlapped. WARNING: The projector MUST be lifted or carried by the HANDLES instead of clamps. ● .For safety the safety cord should afford 10 times the Projector’s weight. ●...
-
Page 7: Setup And Configuration
DMX Controller DMX OUT DMX IN DMX OUT DMX Teminator ● DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120... -
Page 8: Master/Slave Mode
● DMX START ADDRESS Each Projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. -
Page 9: Dmx Protocol
Backlight will be off Lcd Light Setup 3minutes after none button is pushed Display Invert Factory Setting PRM Transmit clean Progra Color -128-127 Moto offset Focus -128-127 Moto Reset Yes/No LED Temperature Information Fixture use Time XXXX Software Version X.X.X Auto Test Dimmer 000 - 255... -
Page 10: Technical Data
010-019 White - Magenta 020-029 Magenta Magenta – Orange 030-039 040-049 Orange 050-059 Orange - Yellow 060-069 Yellow 070-079 Yellow- Blue 080-089 Blue 090-099 Blue– Cyan 100-109 Cyan 110-119 Cyan - White 120-127 White 128-191 Clockwise rotation from slow to fast 192-255 Anti-clockwise rotation from slow to fast 000-001... - Page 11 LIGHT SOURCE SPECIFICATIONS TX-3636W90FC120-NUVENG-A01 1pc, Power Consumption 150W Manufacturers Rated Lamp Life 50000hours Color temperature: 7500K COLORS 1pc color wheel(5colors+Open), continual rotation, magnet sensor positioning Function 2 wave wheels , independently and bi-directionally continually rotating 1pc waterproof fan to help cooling DIMMER Linear Dimmer from 0-100% STROBE...
- Page 12 LIGHT OUTPUT: 5459 1365 DISTANCE (m) DIAMETER (m) 1.96 3.92 7.83 9.79 5.87 9. CIRCUIT DIAGRAM AND PCB CONNECTIONS ● CIRCUIT DIAGRAM...
-
Page 13: Pcb Connections
●PCB CONNECTIONS Name Thermal Sensor Reserved... - Page 14 PWM signal Master Board interface Reserved Power Reserved 485 signal interface DMX signal interface 10 Reserved Diver board Name Power LED Driver...
-
Page 15: Component Order Codes
10. COMPONENT ORDER CODES Name Code No. Remarks 6230000129 POWER SWITCH 230061442 LED ENGINE DRIVER BOARD DOUBLE CONVEX LENS OF 6070000002 PR-6810 6030040000 24BYJ48-51 STEPPING MOTOR 6030000002 DC24V 0.11A STEPPING MOTOR 6030040235A WATERPROOF FAN OF PR-6810 6150000004 TX-3636W150FC120-NUVENG LED LIGHT SOURCES OF PR-6810 -A01... - Page 16 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 6320000008A...
