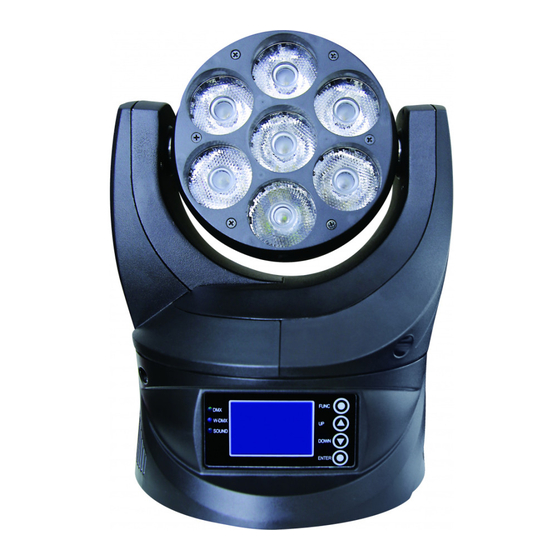

XLED 2007 BEAM
PR-8123
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LTD.
http://www.pr-light ing.com
Advertisement
Table of Contents
Related Manuals for PR Lighting XLED 2007 BEAM PR-8123
Summary of Contents for PR Lighting XLED 2007 BEAM PR-8123
- Page 1 This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-light ing.com...
-
Page 2: Table Of Contents
INDEX SAFETY INFORMATION AND WARNINGS ------------------------------------------------------------------------------------ PRODUCT INSTALLATION ----------------------------------------------------------------------------------------------------------- POWER SUPPLY CONNECTION -------------------------------------------------------------------------------------------------- DMX CONTROL CONNECTION ---------------------------------------------------------------------------------------------------- DMX TERMINATOR --------------------------------------------------------------------------------------------------------------------- PRODUCT FUNCTION SETUP ---------------------------------------------------------------------------------------------------- DMX START ADDRESS SETUP ---------------------------------------------------------------------------------------------------- STAND-ALONE MODE ----------------------------------------------------------------------------------------------------------------- MASTER/SLAVE MODE --------------------------------------------------------------------------------------------------------------- SOUND OPERATION---------------------------------------------------------------------------------------------------------------------- OPERATION MENU --------------------------------------------------------------------------------------------------------------------- DMX PROTOCOL ----------------------------------------------------------------------------------------------------------------------- DISPLAY INFORMATION --------------------------------------------------------------------------------------------------------------... -
Page 3: Safety Information And Warnings
SAFETY INFORMATION AND WARNINGS After receiving product, please unpack and check if there are any damages caused by transportation. Do not use the fixture if transportation damages occur and contact the manufacturer or the dealer as soon as possible. The product is only for indoor use, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. -
Page 4: Product Installation
PRODUCT INSTALLATION SAFETY CORD CLAMP WARNING： Please run the safety cord through safety hole and make sure that the cord is property secured. Take 1 clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to the clamp. -
Page 5: Power Supply Connection
POWER SUPPLY CONNECTIONS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Please be advised to notice power supply’s voltage and frequency meet what are described on the nameplate of the product. It is recommended that each unit be power connected separately so that they may be individually switched on and off. -
Page 6: Dmx Terminator
DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX512 control signals. The DMX terminator is simply a Canon connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last fixture in the chain. -
Page 7: Stand-Alone Mode
STAND-ALONE MODE Operate the fixture without connecting a controller, enable the master mode in the operation panel, the fixture will run in Stand-Alone mode automatically. MASTER/SLAVE MODE If many fixtures are connected under Master/Slave mode, use XLR-XLR control cable to connect the first fixture’s DMX output port with the second fixture’s DMX input port, then to connect the second fixture’s output port with the third fixture’s input port and so on until all the fixtures are connected, the last thing is to plug the terminator at the last fixture’s output port. -
Page 8: Operation Menu
OPTIONS MENU Level 1 Level 2 Level 3 Level 4 1~498 DMX Address Reset Are You Sure Standard 17 DMX Channel Mode （Default is：STd） Extended 30 Pan Tilt Swap （Default is OFF） Pan & Tilt Invert （Default is OFF） Pan angle Range （Default is 360）... - Page 9 Self Test Green Blue White Lamp Red + Green Green + Blue Red + Blue Test Mode Red +Green + Blue Manual Test Pan Location 0-255 0-255 Tilt Location 0-255 Tilt 0-255 Pan &Tilt Speed 0-255 DMX Operation 0: All Audio effect Sound Operation 1～6: Single Audio effect...
-
Page 10: Dmx Protocol
0-255 Tilt CH10 0-255 P&T Speed CH11 0.1s~25s Holding Time Note: 1. There is only one projector to be set as a Master in a signal cable if Master’s functions used, please disable DMX control signal. 2. When multiple projectors’ work together in synchronous control state, Parameters can be transmitted from the master projector to the slave projector such as DMX channel mode, Display setting status ( Contrast setting exclude ) and operation mode ( User memory data is include ) . -
Page 11: Display Information
Area 1 White 000-255 Linear adjustment in White from light to dark of Area 1 Area 2 White 000-255 Linear adjustment in White from light to dark of Area 2 Area 3 White 000-255 Linear adjustment in White from light to dark of Area 3 Area 4 White 000-255 Linear adjustment in White from light to dark of Area 4... -
Page 12: Product Cleaning
PRODUCT CLEANING To ensure the reliability of the fixture it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens should also be regularly cleaned to maintain an optimum light output. Do NOT use any type of solvent containing chemical elements. - Page 13 COLOR TEMPERATURE CORRECTION Linear color temperature correction from 2700K to10000K. STROBE: Electronic strobe, 0-25 F.P.S LENS ANGLE: Beam Angle(1/2 Maximum) : 6° Light Spot Angle( 1/10 Maximum): 12° CONTROL: DMX512, 5 pin interfaces 17channels in standard mode, and 28 channels in extended mode. Master/slave mode Stand-alone mode, Preset mode, Self test mode, mode...
-
Page 14: Component Order Codes
LIGHT OUTPUT : COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 192010180 HQ255-2W02 POWER SUPPLY 1 PCS 230060278 15W LED ASSAMBLY 1 PCS FIXED FOCUS LENS 071100053 7 PCS FUSE 270041037 1 PCS 5x20 3.15A TILT/ PAN BELT 290151337 2 PCS HTD-297-3M 7015 FAN 030060087... - Page 15 15/16...
- Page 16 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 Version: 20140409 (preliminary) 16/16...
