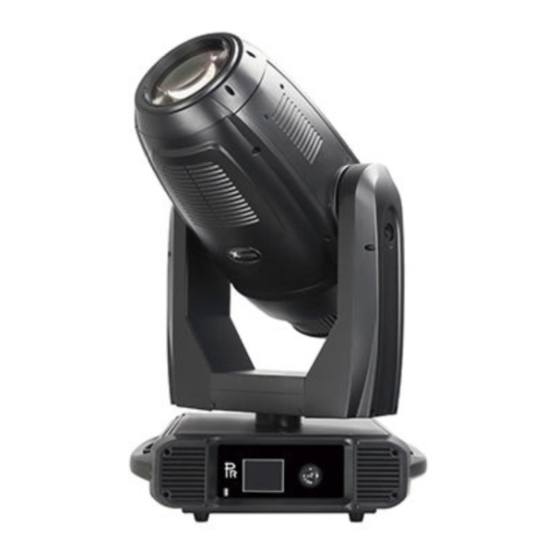

XR 1700 Wash
PR-2885
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1/1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR 1700 Wash and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XR 1700 Wash

Summary of Contents for PR Lighting XR 1700 Wash

  • Page 1 XR 1700 Wash PR-2885 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
  • Page 2 Any future technical changes in the user manual won’t be with any further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.
  • Page 4 There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...
  • Page 5 3. APPEARANCE Fresnel lens Front Cover of the head front and back covers of the head U arm cover Pan Lock handle in the base Front side cover of the head Tilt lock Back side cover of the head lamp cove During transportation, the head should be locked-Pan lock (5) and Tilt Lock(6) should be in LOCK position.

  • Page 6: Installation

    4. INSTALLATION RIGGING ● Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked. safety cord warning clamp please run the safety cord through safety cord hole for safety safety cord hole operation...
  • Page 7 DMX CONTROL CONNECTION: ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) or 3 pin XLR plugs and sockets.

  • Page 8: Setup And Configuration

    DMX TERMINATOR ● In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.
  • Page 9 FRONT PANEL OPERATION ● The projector configuration can be set conveniently via push buttons and color touch screen. To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than ►...

  • Page 10: Operation Menu

    Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press “Enter” for the menu of Un-link Wireless under the upper level menu of Config Settings , then the fixture is unlinked with the wireless transmitter.
  • Page 11 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 1-512 DMX Address Default IP Address 2.X.X.X /10.X.X.X IP Address Address Custom IP Address X.X.X.X SubNet Mask X.X.X.X ArtNet Universe 0-255 Total Reset Really Reset? Pan&Tilt Reset Really Reset? Reset Colour System Reset Really Reset? Dimmer/Shutter reset...

  • Page 12: Dmx Protocol

    View DMX Values Lamp Hours Reset Lamp Hours Total Hours Temperature Information Software Version Electronic SN RDM Device Label Fan Status Encoder Strobe XXX Manual Effect Control Dimmer XXX … Service Pan XXX Tilt XXX Position Calibrations Input Password … Product type Input Password USB Update Software...
  • Page 13 Standard Extended Function DMX Value Basic mode Function Description mode mode 000-010 Close(Lamp Switches to 1200 watt mode after shutter is closed for 5seconds) Strobe 011-025 Open 026-225 Strobe speed from slow` to fast 226-246 Macro effect 247-255 Open Dimmer 000-000 Close 001-255...
  • Page 14 068-069 Medium Bastard Amber 070-071 Medium Yellow 072-073 Fire 074-075 Bright Red 076-077 Lavender 078-079 Sky Blue 080-081 Tokyo Blue 082-083 Just Blue 084-085 Lime Green 086-087 Dark Yellow Green 088-089 Spring Yellow 090-091 Yellow 092-093 Light Amber 094-095 Straw 096-097 Deep Amber 098-099...
  • Page 15 156-157 Lilac Tint 158-159 Deep Lavender 160-161 Lagoon Blue 162-163 Chrome Orange 164-165 Dark Lavender 166-167 Congo Blue 168-169 Alice Blue 170-171 Full C.T. Blue 172-173 Half C.T. Blue 174-175 Quarter C.T. Blue 176-177 Full C.T. Orange 178-179 Half C.T. Orange 180-181 Quarter C.T.
  • Page 16 112-115 Orange 116-119 Orange / UV 120-123 124-127 UV/ White 128-191 Rainbow rotation speed from slow to fast 192-255 Rainbow reverse rotation speed from slow to fast 000-255 Color wheel1 fine Colour Continual positioning in 16 Bit precision 000-063 index 0-360° 064-067 White 068-071...
  • Page 17 030-034 Reserved 035-039 Lamp power 1500W 040-044 Lamp power 1700W 045-089 Reserved 090-094 Pan/Tilt speed mode 095-099 Pan/Tilt time mode 100-129 Reserved 130-139 Lamp On 140-149 Pan/Tilt reset 150-159 Colour system reset 160-169 Reserved 170-179 Dimmer/Shutter reset 180-189 Zoom reset 190-199 Reserved 200-209...

  • Page 18: Error Messages

    Option Settings Lamp Control Information Chinese/English Service Error Messages Operation Mode Address User Memories Reset Config Settings 9.ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type Correction...

  • Page 19: Technical Data

    Time IC Error Lapsed time X days Use hours Setting successfully 10. TECHNICAL DATA INPUT VOLTAGES Input voltage 200V~240V AC，50/60Hz Input power 2100W @ 220V Current at maximum AC10A Power factor PF>90% LAMP SPECIFICATIONS lok-it 1700W/PS Lamp Color Temperature 5600K Ceramic Stand Single-ended Manufacturers Rated Lamp Life...
  • Page 20 COLORS CMY linear color mixing system with macros 2Color wheels: 7colors+ Open, half-color effect, bi-directional rainbow effect with variable speeds, Stepping/linear color changing Color Wheel 1 Code No. Colors Wave Length λ=620±5nm 090070041A λ=510/545±5nm 090070044A Yellow λ=500±5nm 090070043A Blue λ=540±5nm 090070042A Green λ=490/585±5nm...

  • Page 21: Operation Temperature

    STROBE Double blade strobe, 0.3-25 F.P.S . HEAD MOVEMENT Pan 540º , Tilt 270º with auto position correction BEAM ANGLE 12° Highly bright mode Linear zoom 20° ～ 62° with 16bit adjustment CONTROL DMX512, 3 pin interfaces RDM control protocol 14channels in basic mode, 19channels in standard mode , 24channels in extended mode Self-test mode OTHER FUNCTIONS...

  • Page 22: Light Output

    LIGHT OUTPUT: 60° lux 3396 20° lux 27417 6854 1430 1714 1097 12° lux 105365 26341 11707 6585 4215 2927 投射距离 (m) Ф0.0 Ф5.23 Ф10.46 Ф15.69 Ф20.92 Ф26.16 Ф31.39 光斑直径 (m) 60° Ф1.73 Ф3.46 Ф10.38 光斑直径 (m) Ф0.0 Ф5.19 Ф6.92 Ф8.65 20°...

  • Page 23: Pcb Connection

    PCB CONNECTION 23/23...

  • Page 24: Component Order Codes

    8 channel motor driver board P/N 230060855 8 channel motor driver board M1-1motor 24V power input M1-2 motor Reserved M1-3 motor Reserved M1-4 motor Reserved M1-5 motor Reserved M1-6 motor HALL1-4 magnet sensor M1-7 motor HALL1-3 magnet sensor M1-8 motor HALL1-2 magnet sensor Thermal sensor HALL1-1 magnet sensor...
  • Page 25 030040262 PAN MOTOR TILT MOTOR 030040262 030040095A STORE MOTOR 030040186A DIMMER MOTOR 030040095A COLOR WHEEL1 MOTOR COLOR WHEEL2 MOTOR 030040215A 030040114A CMY MOTOR 030040221A ZOOM MOTOR ANGLE LENS MOTOR 030040116A 030060104 BASE FAN1 030060089A BASE FAN2 030060107 TURBO FAN COOLING LAMP 030060094 TURBO FAN BLOWING STROBE BLADES...
  • Page 26 26/26...
  • Page 27 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020550...
