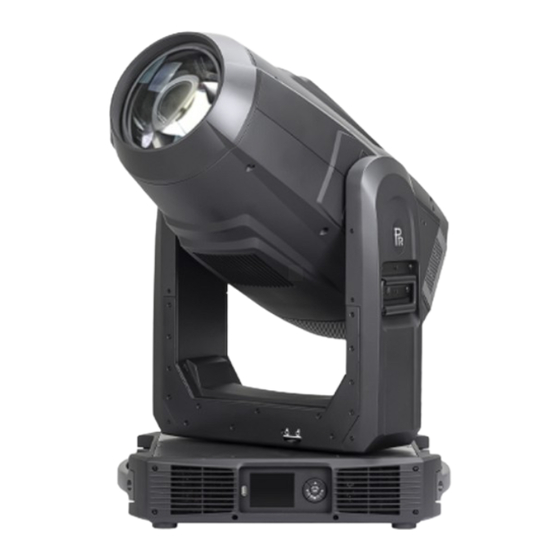

XR-1400 FRAMING
PR-2737
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR-1400 FRAMING and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XR-1400 FRAMING

Summary of Contents for PR Lighting XR-1400 FRAMING

  • Page 1 XR-1400 FRAMING PR-2737 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
  • Page 2 Any future technical change in the user manual won’t be with any notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty...

  • Page 3: Safety And Warnings

    1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles Warning User Electrical Protective Flames High Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.
  • Page 4 electrical parts’ life will be shortened . There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord ● supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...

  • Page 5: Installation

    ●TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket.  The projector doesn’t switch on Check the lamp.  The lamp is on but the projector doesn’t respond Make sure that the fixture’s start address is right  to the controller Replace or repair the XLR signal cable.
  • Page 6 Warning： Please run the safety cord through its hole for safety！ Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.Always ensure that the structure that you are going to mount the projector to is secure and strong enough to support the weight of the unit.
  • Page 7 fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator as shown in the figure below. ●DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.

  • Page 8: Setup And Configuration

    Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to impair ● the beam output. While lamp’s installation, do not damage the metal wire around the burner. Please read "Instructions " enclosed with the lamp ●...

  • Page 9: Dmx Startaddress

    ► key t o enter into function menus. Each main menu has its display(While only on battery, push OK key). After the unlocking, push submenus and each submenu has a specific function. For details, please see the “OPERATION MENU” with following the 6 point..

  • Page 10: Operation Menu

    6. OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 1-472（Short Mode） 1-468（Standard Mode） DMX Address 1-453（Extended Mode） Default IPAddress 2.X.X.X /10.X.X.X IP Address Address Custom IPAddress X.X.X.X SubNet Mask X.X.X.X ArtNet Universe 0-255 sACN Universe 1-63999 Total Reset Really Reset? Confirm/Cancel...
  • Page 11 InvertAuto English Language Setting Chinese Input Password Touch Calibration Celsius Degree Temperature Unit Fahrenheit Degree Un-Link Wireless Really Un-Link? Confirm/Cancel Defaults Restore Defaults? Confirm/Cancel Pan DMX Invert OFF/ ON Tilt DMX Invert OFF/ ON Pan/Tilt Settings Pan Tilt Swap OFF/ ON XYFeedback OFF/ ON Pan/Tilt mode...

  • Page 12: Dmx Protocol

    Boot =XXX System= XXX Fan Board1 Boot =XXX System= XXX Fan Board2 Boot =XXX Electronic SN= Electronic SN ************ XR1400 Framing RDM Device Label ANSI E1.20 RDM Fan Status Base Fan XYEncoder Lamp Fan Error Strobe XXX Dimmer XXX Manual Effect Control Service …...
  • Page 13 The following functions can be used after CMY and CTO are disabled No Function CT2700K CT3000K CT3500K CT4000K CT4500K CT5000K CT5700K Colour Macro 1 Colour Macro 2 Colour Macro 3 Colour Macro 4 Colour Macro 5 Colour Macro 6 Colour Macro 7 Colour Macro 8 Colour Macro 9 Colour Macro 10...
  • Page 14 LEE 101 (Yellow) LEE 102 (Light Amber) LEE 103 (Straw) Lee 104 (Deep Amber) LEE 105 (Orange) LEE 106 (Primary Red) LEE 111 (Dark Pink) LEE 115 (Peacock Blue) LEE 116 (Medium Blue-Green) LEE 117 (Steel Blue) LEE 118 (Light Blue) LEE 119 (Dark Blue) LEE 120 (Deep Blue) LEE 121 (LEE Green)
  • Page 15 LEE 205 (Half C.T. Orange) LEE 206 (Quarter C.T. Orange) LEE 247 (LEE Minus Green) LEE 248 (Half Minus Green) LEE 281 (Three Quarter C.T. Blue) LEE 285 (Three Quarter C.T. Orange) LEE 352 (Glacier Blue) LEE 353 (Lighter Blue) LEE 715 (Cabana Blue) LEE 778 (Millennium Gold) LEE 793 (Vanity Fair)
  • Page 16 Colour 6(UV) Colour 6(UV)/ Colour 7(Orange) Colour 7(Orange)/Open Open Rainbow rotation speed from slow to fast Rainbow reverse rotation speed from slow to fast Colour Wheel Fine Colour Continual positioning in 16 Bit precision Iris Linear Iris from small to big 0-100% Iris in 16 bit Iris in 16 bit precision Iris Macro...
  • Page 17 Gobo2 shake from slow to fast Gobo3 shake from slow to fast Gobo4 shake from slow to fast Gobo5 shake from slow to fast Gobo6 shake from slow to fast Gobo7 shake from slow to fast Rotating gobo wheel Open Gobo1 Gobo2 Gobo3...
  • Page 18 Framing blade 2 left in 16 bit Framing blade 2 left fine adjustment Framing blade 2 right Framing blade 2 right linearly closing from big to small Framing blade 2 right in 16 bit Framing blade 2 right fine adjustment Framing blade 3 left Framing blade 3left linearly closing from big to small...
  • Page 19 Rotation speed from slow to fast Stop rotating Reverse rotation speed from slow to fast Prism2 Open Linear prism Prism2 rotation Linear prism index Stop rotating Rotation speed from slow to fast Stop rotating Reverse rotation speed from slow to fast Effect Wheel No effect wheel Effect wheel in...
  • Page 20 Autofocus for 15M Autofocus for 20M Autofocus Calibrations focus calibrations up focus calibrations down Pan movement Pan Fine Pan movement in 16 bit precision Tilt Tilt movement Tilt fine Tilt movement 16 bit precision Pan/Tilt speed fast Speed Mode Pan &Tilt speed from fast to slow Power/Special functions No function: Reserved...

  • Page 21: Error Message

    Total reset Reserved Lamp Off Reserved Fixture type Type selected via menu Moving Head 4-50 Profile 35-50 Profile 15-35 Profile 4-15 Profile 50 Profile 36 Profile 26 Profile 19 Profile 10 Profile 4 ****DMX channel priority from high to low：Zoom, Focus； ****While higher priority DMX channel in use, the lower one won’t work 8.
  • Page 22 Timeout Check if wiring, positioning parts and motors are normal Cyan Timeout Check if wiring, positioning parts and motors are normal Yellow Timeout Check if wiring, positioning parts and motors are normal Magenta Timeout Check if wiring, positioning parts and motors are normal Timeout Check if wiring, positioning parts and motors are normal Color Wheel...

  • Page 23: Technical Data

    Time IC Error 10. TECHNICALDATA ELECTRIC PARAMETERS Input voltage : 208V~240VAC，50/60Hz Input power: 1800W@220V 10A@ 187V Maximum current: Power factor: PF>0.9 LIGHT SOURCE SPECIFICATIONS Light source: OSRAM lok-it 1400/PS Color Temperature: 6000K Ceramic Stand : Single-ended Manufacturers Rated Lamp Life: 750hours Orange COLORS CMY linear color mixing system with macros...
  • Page 24 FRAMING MODULE 4 framing blades Continual framing module rotation, to make graphics of different sizes and shapes 4 framing blade to make full curtain effect PRISM 1pc 3-facet circular prism and 1pc 4 facet linear prism, indexing, bi-directional rotation with variable speeds FROST 2pc frost filters(1 light frost filter and 1 heavy frost filter), 0-100%linear adjustment EFFECT WHEEL...
  • Page 25 CONTROL International standard DMX512 signal and RDM function , sCAN protocol (optional) , DMX512 wireless control Art Net protocol(optional) 41channels in basic mode, 45channels in standard mode , 60channels in extended mode Self-test mode CONTROL INTERFACE DMX512 ports（5-pin） Ethernet port RJ45 OTHER FUNCTIONS Adjustable Pan &...

  • Page 26: Base Installation

    BASE INSTALLATION LIGHT OUTPUT: 11. CIRCUIT DIAGRAMAND PCB CONNECTIONS...

  • Page 28: Component Order Codes

    12. COMPONENT ORDER CODES NAME CODE NUMBER REMARKS POWER SWITCH 192010235 POWER FILTER 230061131 THERMAL SWITCH 190010150 ELECTRONIC BALLAST 040070144 IGNITER 040090066 LAMP 100070047 PAN MOTOR 030040262 TILT MOTOR 030040262 COLOR WHEEL MOTOR 030040220A CTO MOTOR 030040210A 030040211A CMY MOTOR 030040210A FIXED GOBO WHEEL MOTOR 030040215A...
  • Page 30 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. CounterfeitingWill be Prosecuted! P/N: 320021492...
