►Connecting to Configured NTRIP Modem
Note: If you need to Configure your NTRIP Modem, you can find the instructions here.
1. Attach the supplied antenna (ANTMSTUBSMAM)
to the SMA connector on the top of the unit.
2. Connect the Hirose end of the RLCAB170 to the
Hirose connector at the bottom of the NTRIP
modem.

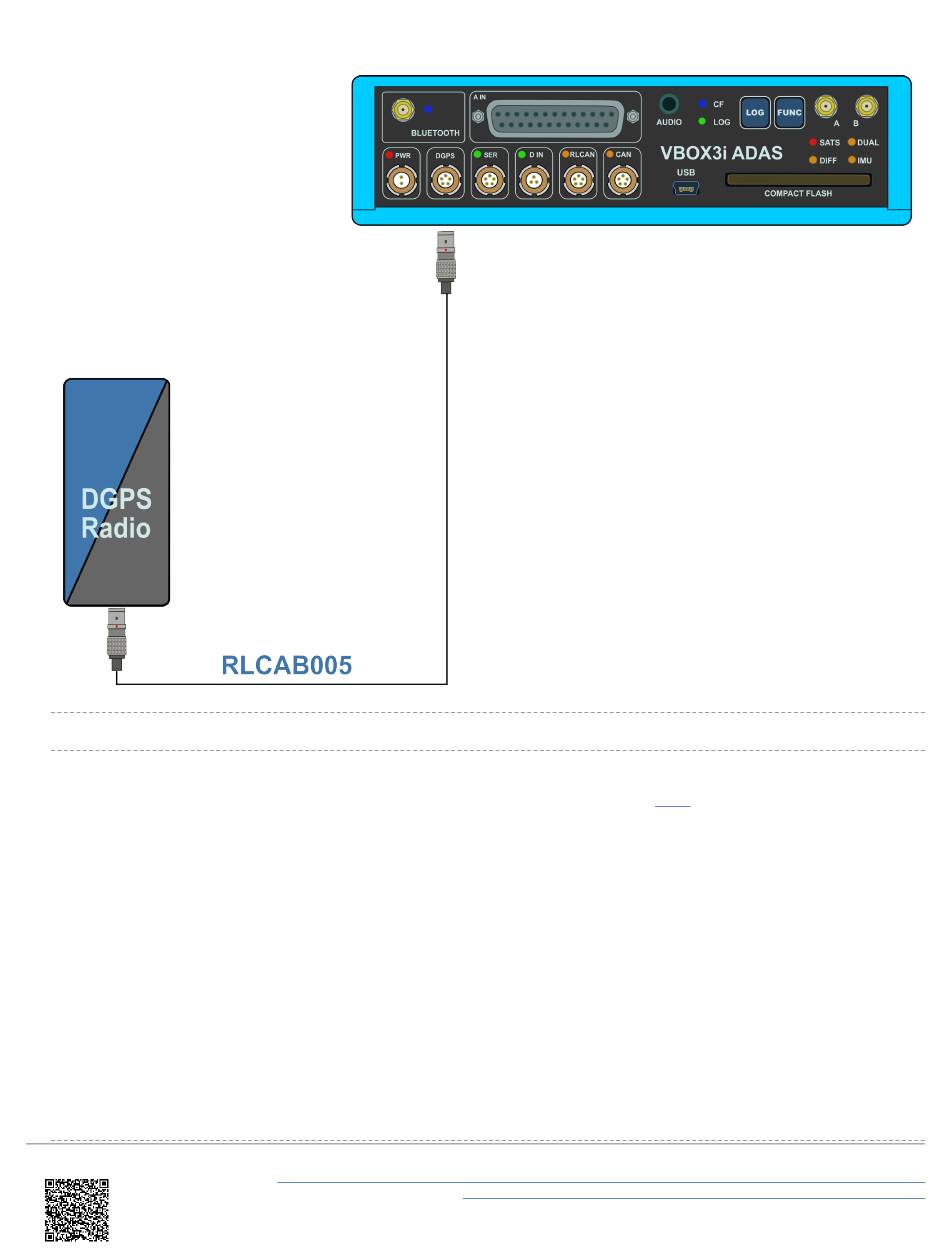

3. Connect the other end of the RLCAB170 cable to
the DGPS port on the VBOX 3i ADAS.
This cable provides power to the modem from
the VBOX unit.
Using SIM Card
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_3i_Product_Range/VBOX_3i_ADAS/
Using Wi-Fi Connection
1. Attach the supplied antenna (ANTMSTUBSMAM)
to the SMA connector on the top of the unit.
2. Connect the Hirose end of the RLCAB170 to the
Hirose connector at the bottom of the NTRIP
modem.
3. Connect the other end of the RLCAB170 cable to
the DGPS port on the VBOX 3i ADAS.
This cable provides power to the modem from
the VBOX unit.
User_Guide_VBOX_3i_ADAS/04_Installing_VBOX_3i_ADAS_in_the_Vehicle
