Dual Antenna – VBOX 3iS Dual Antenna RTK Settings

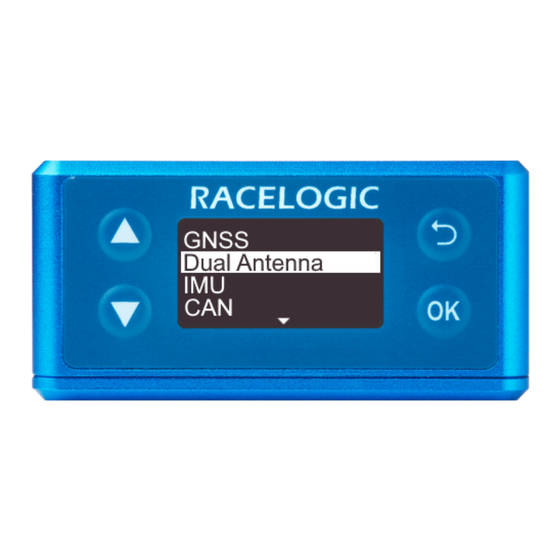

You can access the menu by pressing the OK button. Use the Up and Down arrows to navigate through the menu

and press the OK button to enter a submenu or change a setting. When you edit a setting, the Up and Down buttons

will let you scroll through the available options for that setting and the OK button will confirm your selection. Use the

Back button to exit a setting.

This is the menu you must use to set up your system if

you want to use two antennas with you VBOX 3iS unit.

You can read more about how to set up a Dual Antenna

system here.

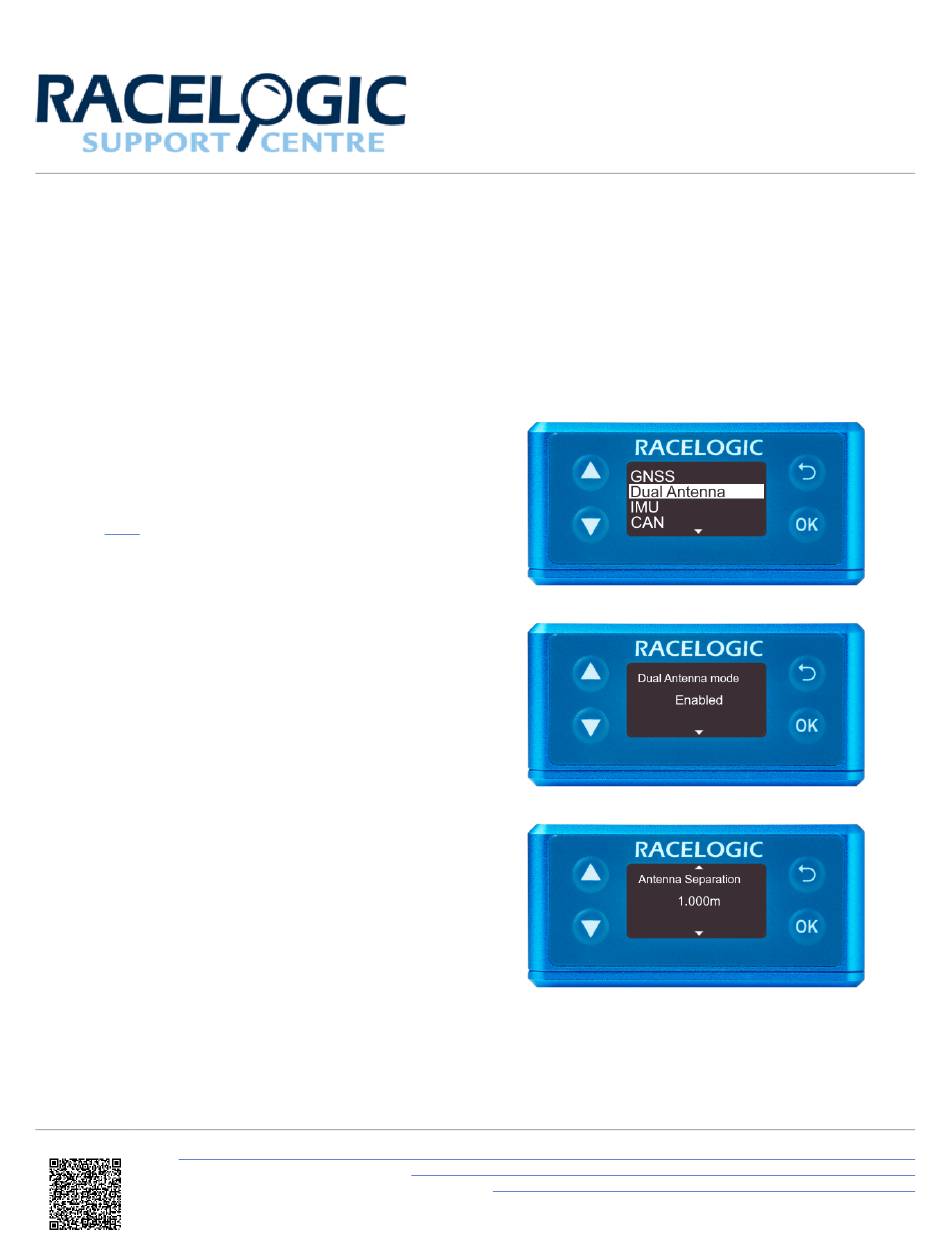

Dual Antenna Mode

Note: You must enable the Dual Antenna Mode to see

the rest of the Dual Antenna menu.

Allows you to enter distance between primary and

secondary antennas.

Max 9.999 metres.

https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Dual_Antenna_RTK/User_Guide_-

_VBOX_3iS_Dual_Antenna_RTK/03_Front_Panel_-_VBOX_3iS_Dual_Antenna_RTK/

Dual_Antenna_%E2%80%93_VBOX_3iS_Dual_Antenna_RTK_Settings

Table of Contents

Do you have a question about the VBOX 3iS Dual Antenna RTK and is the answer not in the manual?

Page 1 Dual Antenna – VBOX 3iS Dual Antenna RTK Settings You can access the menu by pressing the OK button. Use the Up and Down arrows to navigate through the menu and press the OK button to enter a submenu or change a setting. When you edit a setting, the Up and Down buttons will let you scroll through the available options for that setting and the OK button will confirm your selection.
Page 2 Select Auto-level to start the alignment process. Select Clear to remove an already set antenna level. CoG Slip Offset The Centre of Gravity offset must be measured from the primary antenna and entered in metres with 2 decimal places. https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Dual_Antenna_RTK/User_Guide_- _VBOX_3iS_Dual_Antenna_RTK/03_Front_Panel_-_VBOX_3iS_Dual_Antenna_RTK/ Dual_Antenna_%E2%80%93_VBOX_3iS_Dual_Antenna_RTK_Settings...
Page 3 The Rear Left offset must be measured from the primary antenna and entered in metres with 2 decimal places. RR Slip Offset The Rear Right offset must be measured from the primary antenna and entered in metres with 2 decimal places. https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Dual_Antenna_RTK/User_Guide_- _VBOX_3iS_Dual_Antenna_RTK/03_Front_Panel_-_VBOX_3iS_Dual_Antenna_RTK/ Dual_Antenna_%E2%80%93_VBOX_3iS_Dual_Antenna_RTK_Settings...
