03 Front Panel - VBOX 3iS Dual Antenna RTK

Overview

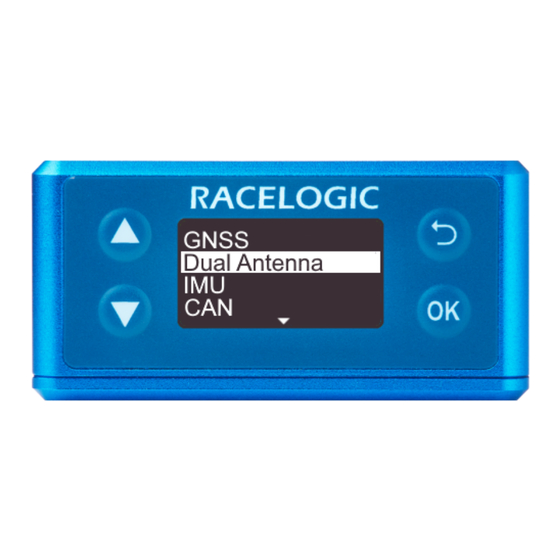

To facilitate unit configuration, VBOX 3iS units have an
OLED display and four membrane buttons on the front
panel.
Alternatively, you can use VBOX Manager to configure
the VBOX 3iS unit. VBOX Manager will mirror the
functionality of the front panel on the VBOX 3iS.

Buttons

https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Dual_Antenna_RTK/User_Guide_-
Menu up / Increase the
value when editing a
number.
Menu down / Decrease
the value when editing a
number.
_VBOX_3iS_Dual_Antenna_RTK/03_Front_Panel_-_VBOX_3iS_Dual_Antenna_RTK
Move to the previous
menu level.
Enter the menu / select
menu item for adjustment.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VBOX 3iS Dual Antenna RTK and is the answer not in the manual?

Questions and answers

Summary of Contents for Racelogic VBOX 3iS Dual Antenna RTK

  • Page 1 03 Front Panel - VBOX 3iS Dual Antenna RTK Overview To facilitate unit configuration, VBOX 3iS units have an OLED display and four membrane buttons on the front panel. Alternatively, you can use VBOX Manager to configure the VBOX 3iS unit. VBOX Manager will mirror the functionality of the front panel on the VBOX 3iS.
  • Page 2 Display Startup When the VBOX 3iS is powered up, it will display the RACELOGIC logo along with the serial number of the unit. Next, it will change to display the firmware version of the unit. When the unit has initialised and any...
  • Page 3 3. After 2 seconds, it will display Waiting For Movement. Note: If the speed rises above 0.8 km/h at any stage during the steps above, the countdown and filter initialisation will reset and the following message will be displayed: Speed >0.8kph – Initialisation reset. https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Dual_Antenna_RTK/User_Guide_- _VBOX_3iS_Dual_Antenna_RTK/03_Front_Panel_-_VBOX_3iS_Dual_Antenna_RTK...
  • Page 4 5 seconds. After this period, the unit will beep and it will play an audible confirmation signal when the reset is finished. Note: Receiver settings (Dynamic Mode, DGNSS Mode, DGNSS Rate and Elevation mask) will not reset. https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Dual_Antenna_RTK/User_Guide_- _VBOX_3iS_Dual_Antenna_RTK/03_Front_Panel_-_VBOX_3iS_Dual_Antenna_RTK...
