Static Routing
If there is more than one router on a network, the routing table must be configured. This
allows the Twin WAN Gateway to know what packet goes to which router. A routing
table entry is required for each LAN segment on the network.

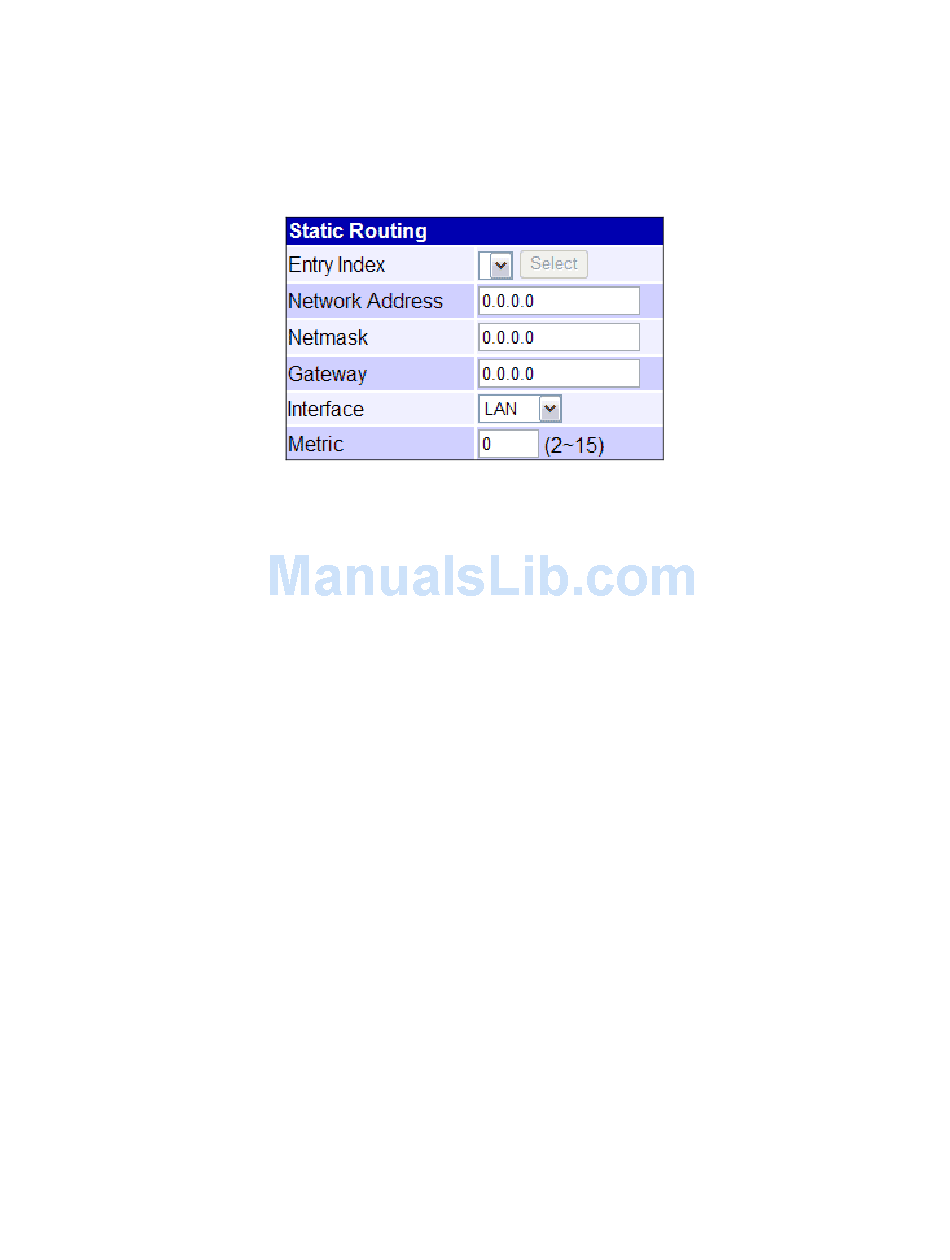

Static Routing Console
Entry Index
To edit an existing entry, select it from the list, and click the Select button. The screen
will then update with the data for the selected entry. If the Index is 0, this is a System
entry which you can neither delete nor modify.
Network Address
Input the network address of the remote LAN segment in this field. For standard class
"C" LANs, the network address is the first 3 fields of the Destination IP Address. The 4th
(last) field can be left at 0.
Netmask
Input the Network Mask for the remote LAN segment in this field. For class "C"
networks, the default mask is 255.255.255.0.
Gateway
Input the IP Address of the Gateway or Router which the Twin WAN Gateway must use
to communicate with the destination above. (NOT the router attached to the remote
segment)
Interface
Select the correct interface (usually LAN). The WAN interface is only available if NAT
(Network Address Translation) is disabled.
Metric
The number of "hops" (routers) to pass through to reach the remote LAN segment. The
shortest path will be used.
