Section 3: Connecting two broadband modems

Procedure
1. Ensure the Twin WAN Gateway and the DSL/Cable modem are powered OFF.
Leave the modem or modems connected to their data line.
2. Connect the Broadband modem(s) to the Twin WAN Gateway. If using only one (1)
Broadband modem, connect it to the WAN 1 port.
3. Use standard LAN cables to connect PCs to the LAN ports on the Twin WAN
Gateway.
• Both 10BaseT and 100BaseT connections can be used simultaneously.
• Use a standard CAT-5 Ethernet cable to connect any port on the Twin WAN
Gateway to a standard port on another hub. Any LAN port on the will
automatically act as an Uplink port when required.
4. Power Up:
• Power on the Cable or DSL modem(s) and allow the device(s) to boot up.
• Connect the supplied power adapter to the Twin WAN device.
5. Check the LEDs of your Twin WAN Gateway:
• The Power LED should be ON.
• The WAN – Link LED should be ON when the corresponding WAN port is
connected toa broadband modem.
• For each PC connected to the LAN ports, the corresponding LAN LED (either
10 or 100) should be ON.
Copyright © 2005 WINS International, LLC dba XiNCOM | All rights reserved.

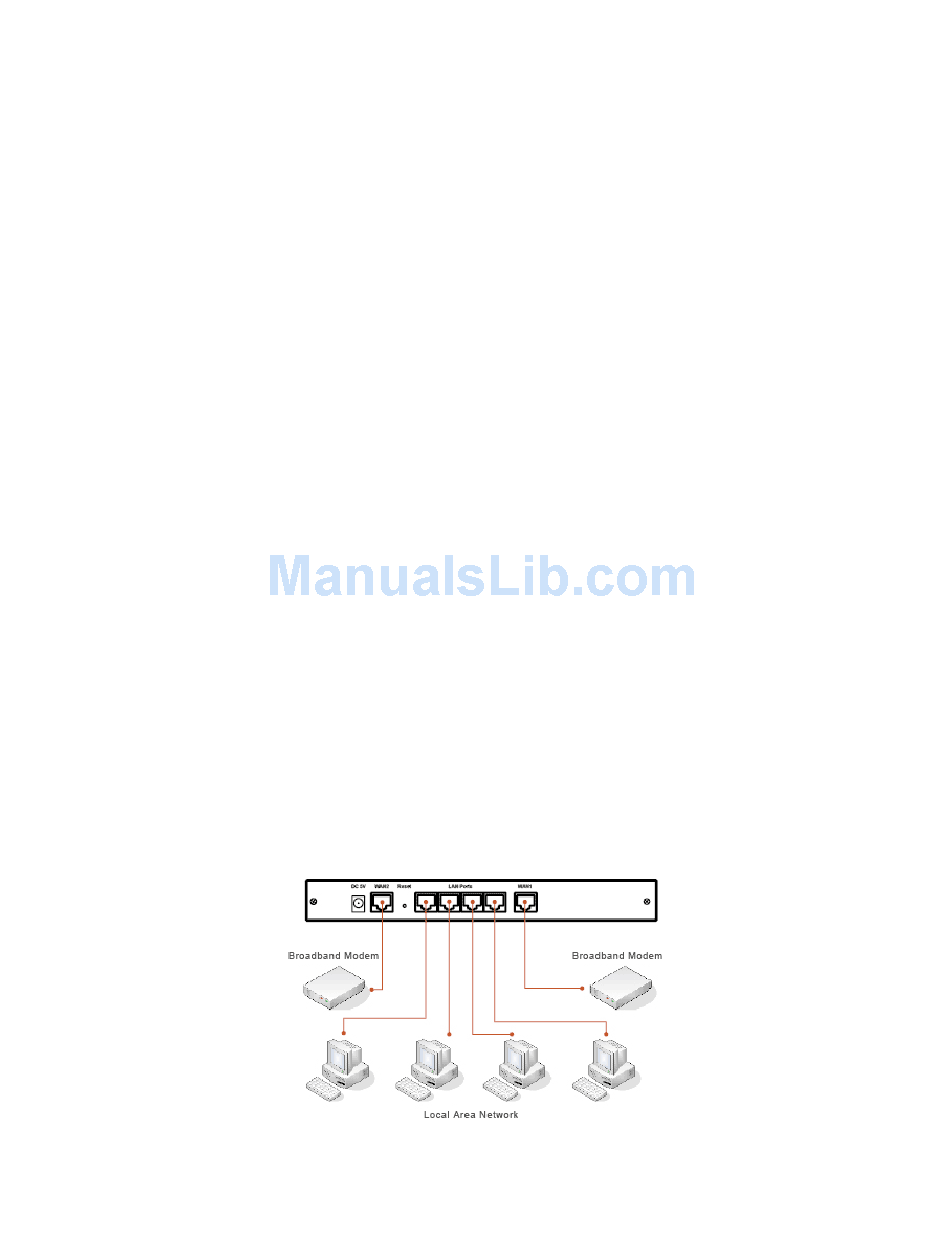

Figure 4.
