Twin WAN Series – User Guide | v1

Section 2: Configuring your LAN

Procedure
1. Use a standard LAN cable to connect your PC to any LAN port on the Twin WAN
Gateway.
2. Connect the power adapter and power up the Twin WAN Gateway. Only use the
power adapter provided with the product; using a different one may cause hardware
damage.
3. Start your PC or restart your PC if it is already running. Once restarted, the PC will
then obtain an IP address from the Twin WAN Gateway.
4. Start your Web browser.
5. In the Address or Location box enter:

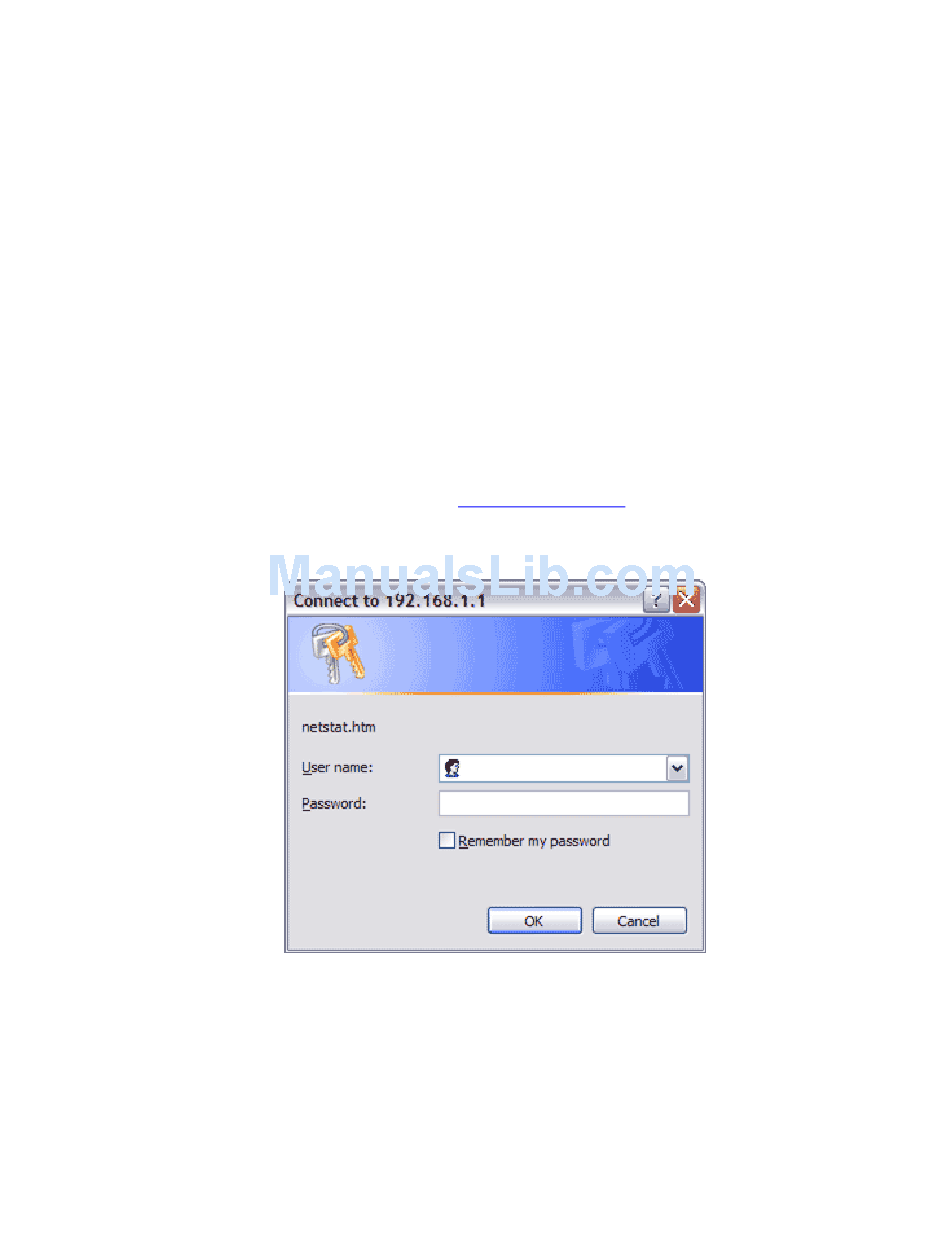

6. You will be prompted for the User Name and password, as shown in Figure 1.
Copyright © 2005 WINS International, LLC dba XiNCOM | All rights reserved.
HTTP://192.168.1.1
Figure 1
