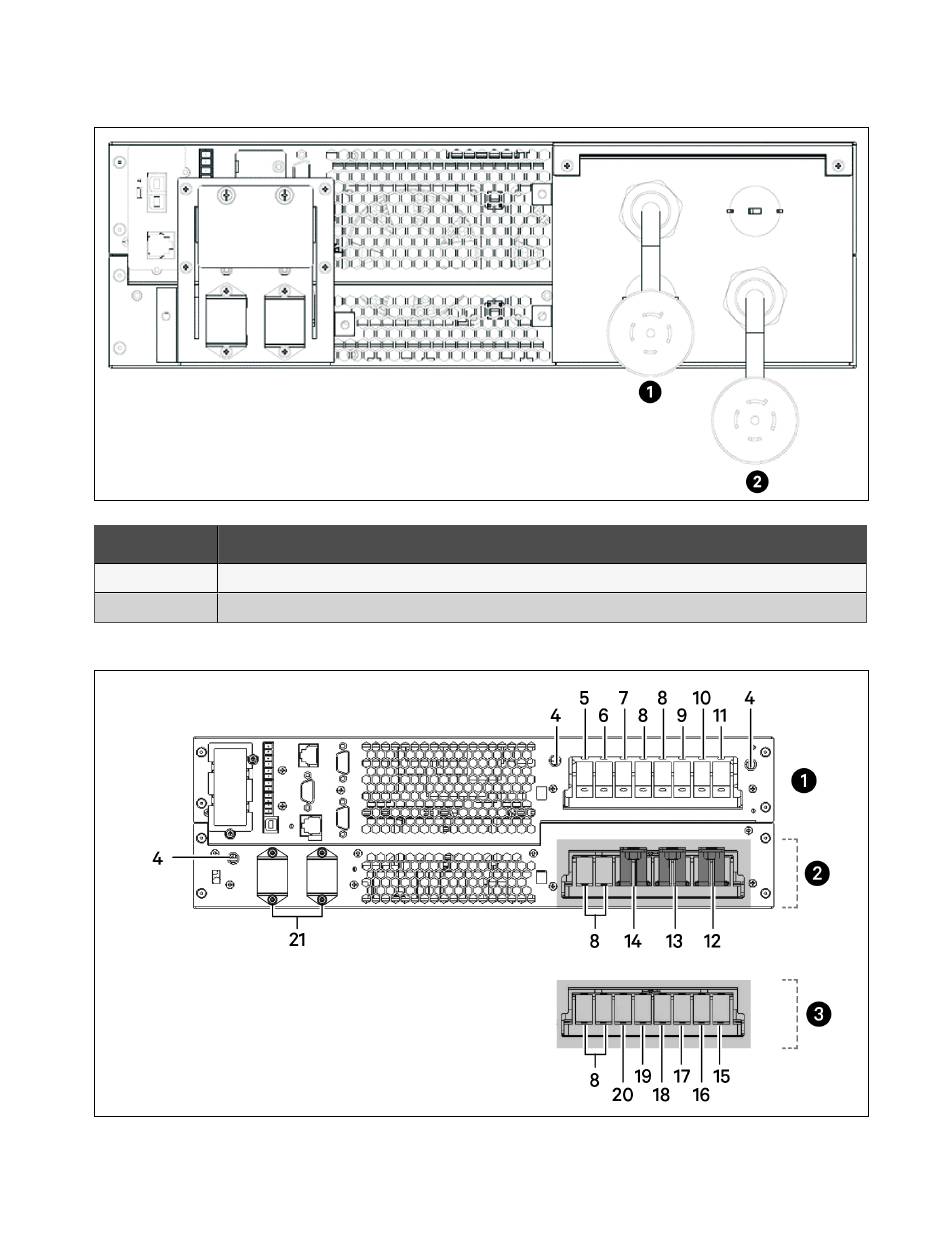

Figure 2.7 Single- and Dual-Input Configuration Wiring Diagram (5kVA)
Item
1
2
Figure 2.8 Sinle-Input and Dual-Input Configuration Wiring Diagram (8kVA and 10kVA)
2 Installation
Description
Input L21-20P
Output L21-20R
Proprietary and Confidential ©2024 Vertiv Group Corp.
Vertiv™ Liebert® ITA2 Installer/User Guide
21
