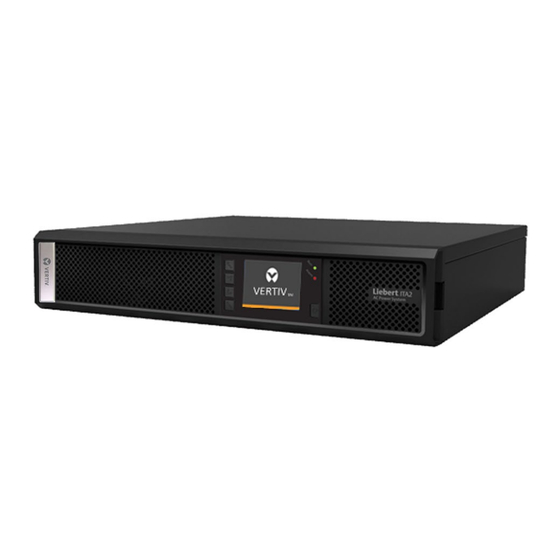

Liebert ITA2 1-3kVA UPS
User Manual
Version
V1.3
Revision date
March 14, 2023
Vertiv provides customers with technical support. Users may contact the nearest Vertiv local sales office or
service center.
Copyright © 2022 by Vertiv Tech Co., Ltd.
All rights reserved. The contents in this document are subject to change without notice.
Vertiv Tech Co., Ltd.
Address: Block B2, Nanshan I Park, No.1001 Xueyuan Road, Nanshan District, Shenzhen, 518055, P.R.China
Homepage: www.Vertiv.com
E-mail: overseas.support@vertiv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liebert ITA2 1-3kVA and is the answer not in the manual?

Questions and answers

Related Manuals for Vertiv Liebert ITA2 1-3kVA

Summary of Contents for Vertiv Liebert ITA2 1-3kVA

  • Page 1 V1.3 Revision date March 14, 2023 Vertiv provides customers with technical support. Users may contact the nearest Vertiv local sales office or service center. Copyright © 2022 by Vertiv Tech Co., Ltd. All rights reserved. The contents in this document are subject to change without notice.
  • Page 2 Where conductive dusts, corrosive gases, salts, or flammable gases are present  Near heat sources or strong electromagnetic interferences Disclaimer Vertiv disclaims any and all responsibility or liability for the defects or malfunction caused by:  Application range or operating environment outside the specifications ...
  • Page 3 When operating Vertiv products, the operation personnel must observe the safety rules in the industry, the general safety points and special safety instructions provided by Vertiv.
  • Page 4 1. Before moving or rewiring the UPS, disconnect mains input power and the battery and make sure that the UPS is completely shut down. Otherwise, the output terminal may carry live voltage, presenting an electric shock hazard 2. Liquid or other irrelevant external objects are prohibited inside the UPS. 3.
  • Page 5 Battery high voltage 1. All the physical service and maintenance of the battery are performed by the trained technicians. 2. Operation on the battery will result in electric shock and high short-circuit current, therefore, before operating the battery, the following should be observed: Remove the watches, rings and other metal objects.
  • Page 6 Manual Describes the Following Devices Product Model ITA-01k00AS1102C00 (Standard model) 1kVA ITA-01k00AL1102C00 (Long back-up model) ITA-02k00AS1102C00 (Standard model) 2kVA ITA-02k00AL1102C00 (Long back-up model) ITA-03k00AS1102C00 (Standard model) 3kVA ITA-03k00AL1102C00 (Long back-up model)
  • Page 7 Version Information Date Revision Change 10.30.20 V1.0 Initial release 06.28.21 V1.1 Content optimization Add Appendix 3 product size information and three views 05.11.22 V1.2 drawing; 7.1 Option list update Add the description of special loads with DC component is not 03.14.23 V1.3 supported in the safety precautions chapter.

  • Page 9: Table Of Contents

    Table of Contents 1 Product Introduction........................1 1.1 Features ............................... 1 1.2 Model Configurations ............................. 2 1.3 Appearance and Components .......................... 2 1.3.1 Appearance ............................2 1.3.2 Components ............................2 1.4 Operating Principle ............................5 1.5 UPS State and Operation Mode ........................6 1.5.1 Normal Mode ............................
  • Page 10 3.6 Auto Restart ............................... 30 3.7 Language Selection ............................. 30 3.8 Changing Current Date and Time ........................32 3.9 Setting Password ............................33 4 Operation and Display Panel ...................... 36 4.1 Introduction ..............................36 4.1.1 LED Indicators ..........................37 4.1.2 Audible Alarm (Buzzer) ........................37 4.1.3 LCD and Functional Keys ........................
  • Page 11 ITA-03k00BCI02 ............................66...

  • Page 13: Product Introduction

    Liebert® ITA2 1kVA~3kVA UPS (UPS for short) is an intelligent online UPS system with sine wave output developed by Vertiv. The UPS offers reliable and high-quality AC power to the precision instrument. The rack/tower installation can be used depending on your requirements. It is applicable to supplying AC power to small scale computer center, network, communication system, automatic control system and precision instrument.

  • Page 14: Model Configurations

    As shown in Figure 1-2, the UPS front panel provides ventilation holes, operation and display panel, LED indicators and functional keys. 1. Ventilation holes 2. Functional keys 3. Operation and display panel 4. LED indicators Figure 1-2 UPS front panel Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 15 4. Intellislot port (DB9) 5. USB port 6. Ethernet port 7. Battery module number 8. REPO port detection port 9. Output dry contact port 10. Input dry contact port Figure 1-3 UPS rear panel Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 16 Non-authorized personnel are prohibited from opening the UPS chassis cover. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 17: Operating Principle

    4. After the input mains returns within tolerance levels, the UPS will automatically transfer from Battery mode to Normal mode, the mains supplies DC power to the inverter through the rectifier/PFC circuit, and then the electronic transfer switch supplies AC power to the load. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 18: Ups State And Operation Mode

    In Normal mode, the run indicator (green) is on, the alarm indicator is off, and the buzzer is silence. Bypass input Inverter Rectifier/PFC UPS output Mains input Output relay DC/DC converter Battery Figure 1-5 Normal mode Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 19: Bypass Mode

    Mains input Output relay DC/DC converter Battery Figure 1-6 Bypass mode In case of mains failure or mains voltage out of range in Bypass mode, the UPS will shut down and stop the output. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 20: Battery Mode

    UPS will not transfer to Normal mode, but shut down the bypass. 2. In ECO mode, the efficiency of the UPS is up to 98%. 3. Only battery is available can the UPS enters ECO mode. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 21: Fault State

    Storage temperature -20°C ~ +60°C (battery excluded); -15°C ~ +40°C (battery included) Ambient condition Relative humidity 5%RH ~ 95%RH, non-condensing Altitude ≤3000m; derating when higher than 3000m W*D*H (mm) Without package(Find 430*400*85(Without 430*470*85(Without 430*540*85(Without Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 22 430*418*85(With cable 430*488*85(With cable 430*558*85(With cable box) box) box) 15.6 (Standard) 19.9 (Standard) 26.7 (Standard) Weight Net weight (kg) 7.1 (Long back-up) 8.6 (Long back-up) 10 (Long back-up) Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 23: Ups Installation

    UPS size and weight (with package) 1kVA 2kVA 3kVA Specification 547*262*610 617*262*610 687*262*610 Size (W×D×H，mm) 18.8 (Standard) 23.1 (Standard) 30.1 (Standard) Gross weight（kg） 10.3 (Long back-up) 11.8 (Long back-up) 13.4 (Long back-up) Figure 2-1 Unpacking Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 24: Ups Moving

    If necessary, an indoor exhaust fan should be installed to keep the indoor temperature from rising. An air filter should be used in a dusty environment where the UPS is to be operated. Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 25 20°C ~ 25°C. Battery hazards During the battery storage, the battery must be periodically charged according to the battery instructions. When charging the battery, you can connect the UPS to Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 26: Installation Tools

    The circuit breaker or other protective devices must be installed at the external AC input end of the UPS. This section provides the general guidance for qualified installation engineer. The qualified installation engineer should learn about the local wiring regulations and other related information. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 27: Overcurrent

    (to load). 2.4.3 Battery Input If Vertiv battery module is selected, the battery module is equipped with overcurrent protection device. Otherwise, the battery module shall provide DC compatible circuit breaker to provide over-current protection for UPS and its batteries. The protective device specification is shown in Table 2-2.

  • Page 28: Mechanical Installation

    Figure 2-5. Fastening Support base extension Support base Figure 2-5 Connecting the support base with support base extension Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 29: Rack Installation

    1. Use eight M4 × 8 screws to fix the two brackets (accessories) respectively on both sides of the UPS front panel, as shown in Figure 2-7. Figure 2-7 Installing brackets It is prohibited to move the UPS through the brackets. Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 30 (totally eight), each left guide rail and right guide rail need four guide rail screws, as shown in Figure 2-10. Guide rail Guide rail screw (4PCS) Guide rail holder Square hole Figure 2-10 Installing the guide rail Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 31 3. Place the UPS on the guide rails in the rack, and push it completely into the rack. Use four screws to fix the UPS in the rack through the brackets, as shown in Figure 2-12. Figure 2-12 Installing the UPS Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 32: Connecting Power Cables

    3. See Table 2-3 for the recommended capacity of the circuit breaker. Table 2-3 Recommended capacity for UPS I/O circuit breaker Model External input circuit breaker Battery circuit breaker 1kVA (Long back-up, standard) 2kVA (Long back-up, standard) 3kVA (Long back-up, standard) Connection procedures: Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 33: Connecting Battery Cables

    6. Shut off the battery circuit breaker before using the battery module. Connecting standard model and battery module The connection mode between the standard model and Vertiv 36/48/72V battery module is shown in Figure 2-14, using cable ITA2-1k EBC CABLE_S/ITA2-2k EBC CABLE_S/ITA2-3k EBC CABLE_S. Remove the battery...
  • Page 34 Connecting long back-up model and Vertiv battery module The connection mode between the long back-up model and Vertiv battery module is similar to Figure 2-14, except that the connection cable between UPS and the battery cabinet needs to use the cable ITA2-1k EBC CABLE_L/ITA2-2k EBC CABLE_L/ITA2-3k EBC CABLE_L.
  • Page 35 12V, 1kVA/2kVA/3kVA models shall be connected in series with 3/4/6 batteries respectively. Too many or too few series connection will cause the risk of UPS damage. Figure 2-15 Battery string connection principle diagram Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 36: Ups Operation Instructions

    "Yes", then the running indicator (green) flashes, the inverter is on, and the running indicator is solid on. 5. Check whether the inverter output voltage is normal and then close the external output circuit breaker. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 37: Initial Start-Up Guidance

    Note: The standard model can be equipped with battery modules for boost charging (up to 5, 2 by default). Compared with the long backup model, the standard model has built-in battery package. If battery module is Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 38: Transfer Procedures Between Operation Modes

    UPS will usually run in Normal mode unless the mains are disconnected; After the mains is disconnected, the UPS will automatically enter the battery mode. If it is necessary to switch UPS to normal mode and restore power supply, UPS will back to normal mode again. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 39: Transfer From Inverter Mode To Bypass Mode

    Settings Control Settings Control Status Status To the Bypass To the Bypass? Turn off UPS About Maintain About Maintain Confirm Settings Control Status Turn off UPS? About Maintain Figure 3-6 Bypass normal interface Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 40: Transfer From Bypass Mode To Inverter Mode

    Turn off UPS? About Maintain Figure 3-8 ECO mode not turned on If the ECO turned on, the interface shown in Figure 3-9 will appear. Select 'YES' to shut down the UPS output. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 41: Ups Complete Shutdown

    If the mains input is present, the UPS control circuit will remain active; however, the output is closed. To remove all mains power from the UPS, the external main input MCB should be disconnected. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 42: Auto Restart

    1. At the main menu screen, press the key to switch the cursor to select 'Settings', then press key to confirm it. See Figure 3-10. Status Settings Control About Maintain Figure 3-10 Main menu Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 43 At this time, the LCD contents will be the language selected by you. 5. Press the key for several times to back to the main menu screen. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 44: Changing Current Date And Time

    Figure 3-15. Figure 3-15 Selection of date and time 4. Press the key, move the cursor and press the key to change the date and time you need. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 45: Setting Password

    Status About Maintain Figure 3-16 Main menu 2. Press the key, the interface shown in Figure 3-17 will appear. Input Password for maintain Settings Control Status **** About Maintain Figure 3-17 Inputting password Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 46 'Change settings password', see Figure 3-19. Figure 3-19 Changing settings password 3. Press the key, the interface shown in Figure 3-20 will appear. Figure 3-20 Password for settings Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 47 Figure 3-23 Password changed OK 7. Press the key for several times to back to the main menu screen. Only through the correct password (default: 111111) verification can you conduct the parameters of the UPS. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 48: Operation And Display Panel

    4. Alarm indicator 5. Power button Figure 4-1 Operation and display panel The device has a gravity sensor function, thus the LCD display direction will be changed according to the device layout mode. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 49: Led Indicators

    Used to page up, turn left or add value, etc. Down Used to page down, turn right or reduce value, etc. Escape Used to back, escape, cancel or forbid operation Power Used to power on, power off or transfer to Byapss mode Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 50: Lcd Menu Structure

    UPS status and alarm message, perform functional settings and control operation. The LCD also stores historical alarm records that can be retrieved for reference and diagnosis. 4.2 LCD Menu Structure Figure 4-3 LCD menu structure Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 51: Lcd Screen Types

    The flow screen is the total status view of the UPS, includes input, bypass, rectifier, battery, inverter and output, etc. The working modes with color display while the invalid modes with gray display. Figure 4-5 Flow screen At the flow page, press the key to enter the primary screen. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 52: Main Menu Screen

    After entering the submenu screen, if there is no tab control, then the cursor will stop at a certain Item. Press the key to back to the previous screen. For details about the submenu screen, see following pages. Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 53 Status page The Status page contains the Input, Bypass, Battery, Output and Load. See below: Settings Control Status About Maintain Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 54 Settings page The Settings page contains the Output, Battery, Parallel, Monitor, System, and Outlet. For details about the parameters setting, refer to Appendix 1 LCD Parameters Setting. See below: Settings Control Status About Maintain Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 55 Control Status Clear faults Power on time 2000-01-01 00:00:00 power off time 2000-01-01 00:00:00 About Maintain Log page The Log page contains the Current and History. See below: Settings Control Status About Maintain Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 56: Default Screen

    About Maintain Maintain page The Maintain page needs correct password and for Vertiv service engineer operation only. 4.3.5 Default Screen During the UPS operation, if there is no alarm within two minutes, the default screen shown in Figure 4-7 will appear.

  • Page 57: Prompt Window

    The system is in standby state, and the dry cntact shutdown is enabled. Check whether the shutdown Output disabled dry contact is enabled or not Battery module If the number of battery cabinetes detected exceeds 6, report abnormal connection of battery modulees connection abnormal Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 58 Check the communication cables are normal communication fails If the alarm is caused through setting the software value by Vertiv authorized engineer, and when you wish to change the setting values, please get in touch with the Vertiv local customer service center.

  • Page 59: Communication

    ‘Monitoring’ page, UPS and computer network cable to connect to a LAN environment. The obtained IP address can be viewed in the ‘About’ -> ‘Network’ page of the LCD monitoring panel, as shown in Figure 5-1. Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 60 SIC card is a network management card, which makes the intelligent devices (such as UPS, air conditioner, static transfer system (STS), sever power management system (SPM), and so on) produced by Vertiv have Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 61 Refer to the corresponding user manual for the installation and operation guide. RS232 card The RS232 card should be used together with the Liebert® ITA series UPS of Vertiv. It only supports RS232 protocol communication, and the maximum length of the communication cable cannot exceed 15 meters.

  • Page 62: Maintenance

    4. Check whether the battery ports are damaged or hot, and whether the chassises and the covers are damaged. If liquid leakage and damage to the battery are found, place the battery in the anti-vitriol tank, and deal with it according to the local regulations. Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 63: Cleaning Ups

    Vertiv is not liable for the environment results caused by failure to comply with the notices in this section or to use the waste battery recycle system provided by Vertiv.

  • Page 64: Options

    925.0 1572.0 205.0 232.0 266.0 312.0 362.0 448.0 560.0 711.0 969.0 1793.0 231.0 262.0 294.0 345.0 418.0 496.0 616.0 797.0 1143.0 1982.0 11.4 13.1 15.4 18.5 22.7 28.2 36.6 49.5 72.2 151.0 1kVA Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 65 55.3 14.5 16.8 19.7 23.8 28.9 36.1 47.7 67.6 104.0 218.0 3kVA (Standard) 28.7 32.8 38.0 45.9 55.6 68.9 91.0 128.0 197.0 380.0 44.3 51.0 58.6 71.0 85.9 104.0 140.0 194.0 291.0 567.0 Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 66 433.0 631.0 1155.0 127.0 144.0 165.0 197.0 235.0 284.0 360.0 493.0 717.0 1319.0 146.0 165.0 192.0 227.0 270.0 326.0 423.0 568.0 812.0 1485.0 165.0 190.0 218.0 257.0 300.0 362.0 470.0 628.0 915.0 1649.0 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 67: Appendix 1 Lcd Parameters Setting

    Battery test time HH:MM:SS 00:00:00 1～4320 (min) Discharge protect time 4320 Equal charge enable NO, YES Temperature compensation Disable, Enable Disable Replace battery Button Button Language English, Chinese English Monitor Date YYYY-MM-DD 2000-01-01 Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 68 ( 'd' is a decimal number) Gateway address 192.168.1.1 SNMP NMS address 192.168.1.100 The password is numeric only and can Change settings password be set from 0 to 9. The password 111111 length is 6 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 69: Appendix 2 Glossary

    Network management system Protective earth RCCB Residual current circuit breaker Residual current detector REPO Remote emergency power off Radio frequency interference Silicon-controlled rectifier SNMP Simple network monitoring protocol Static transfer switch Uninterruptible power system Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 70: Appendix 3 Dimension (Unit: Mm)

    Appendix 3 Dimension (unit: mm) ITA-01k00AS1102C00 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 71: Ita-01K00Al1102C00

    ITA-01k00AL1102C00 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 72: Ita-02K00As1102C00

    ITA-02k00AS1102C00 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 73: Ita-02K00Al1102C00

    ITA-02k00AL1102C00 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 74: Ita-03K00As1102C00

    ITA-03k00AS1102C00 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 75: Ita-03K00Al1102C00

    ITA-03k00AL1102C00 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 76: Ita-01K00Bci02

    ITA-01k00BCI02 Vertiv I Liebert ITA2 1~3kVA I Manual...

  • Page 77: Ita-02K00Bci02

    ITA-02k00BCI02 Vertiv I Liebert ITA2 1~3kVA I Manual...
  • Page 78 ITA-03k00BCI02 Vertiv I Liebert ITA2 1~3kVA I Manual...

This manual is also suitable for:
