1. Take the support bases out of the accessories box.
2. If battery cabinets will be connected, take out the spacers that shipped with the battery cabinet.
3. If an MBC will be connected, take out the spacers shipped with the accessories.
4. Connect the spacers and the support bases as shown in Figure 2.3 below . Each tower assembly requires
two support base/spacer assemblies, one in the front and one in the rear.
5. Place the UPS, battery cabinets and the MBC on the two support base assemblies.

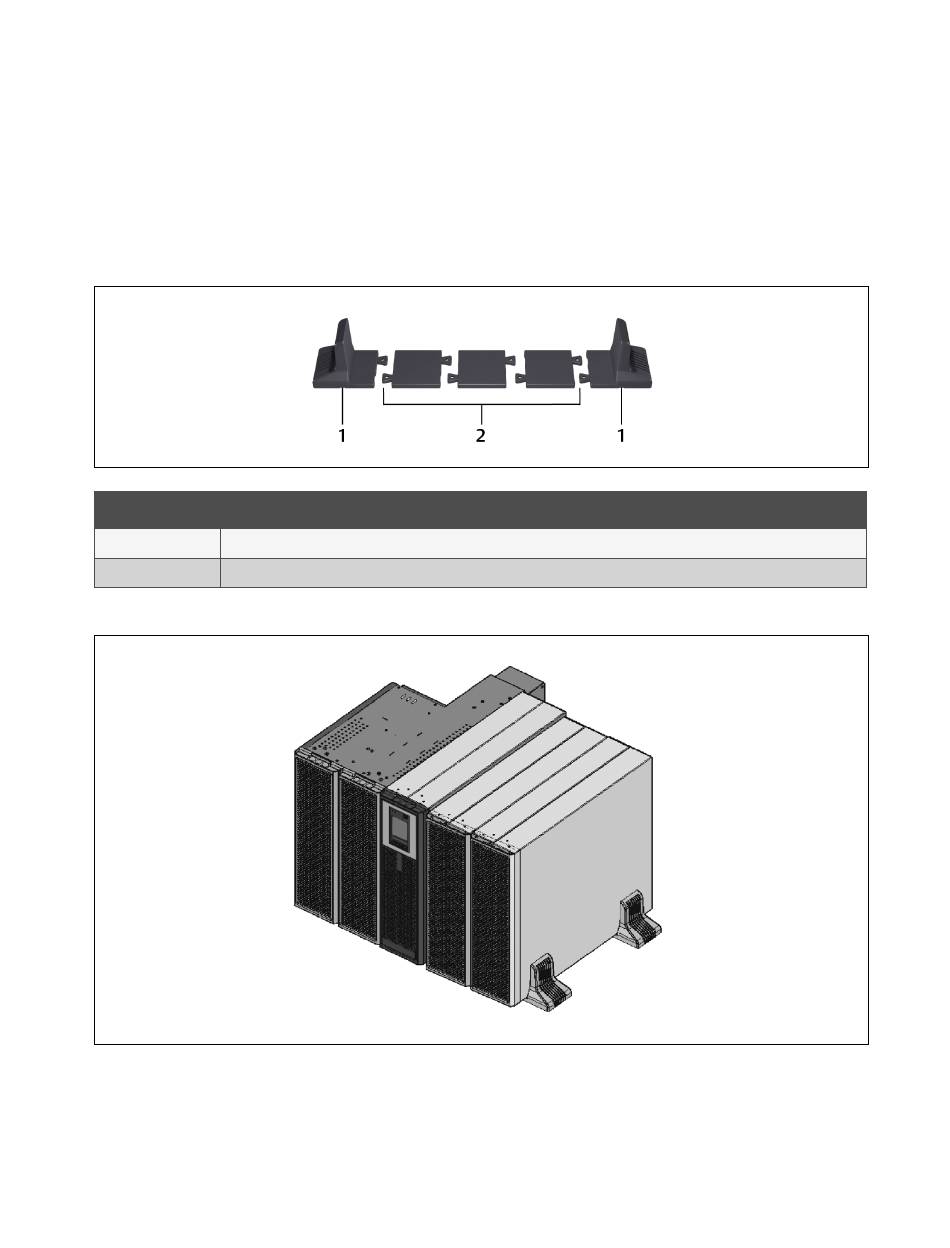

Figure 2.3 Support Bases
Item
1
2
Figure 2.4 Tower-Mounted Liebert® ITA2 UPS System with Battery Cabinets and MBC
2 Installation
Description
Support bases
Spacers with connectors
