Hardware Installation and Reference Guide
2. Rear Panel

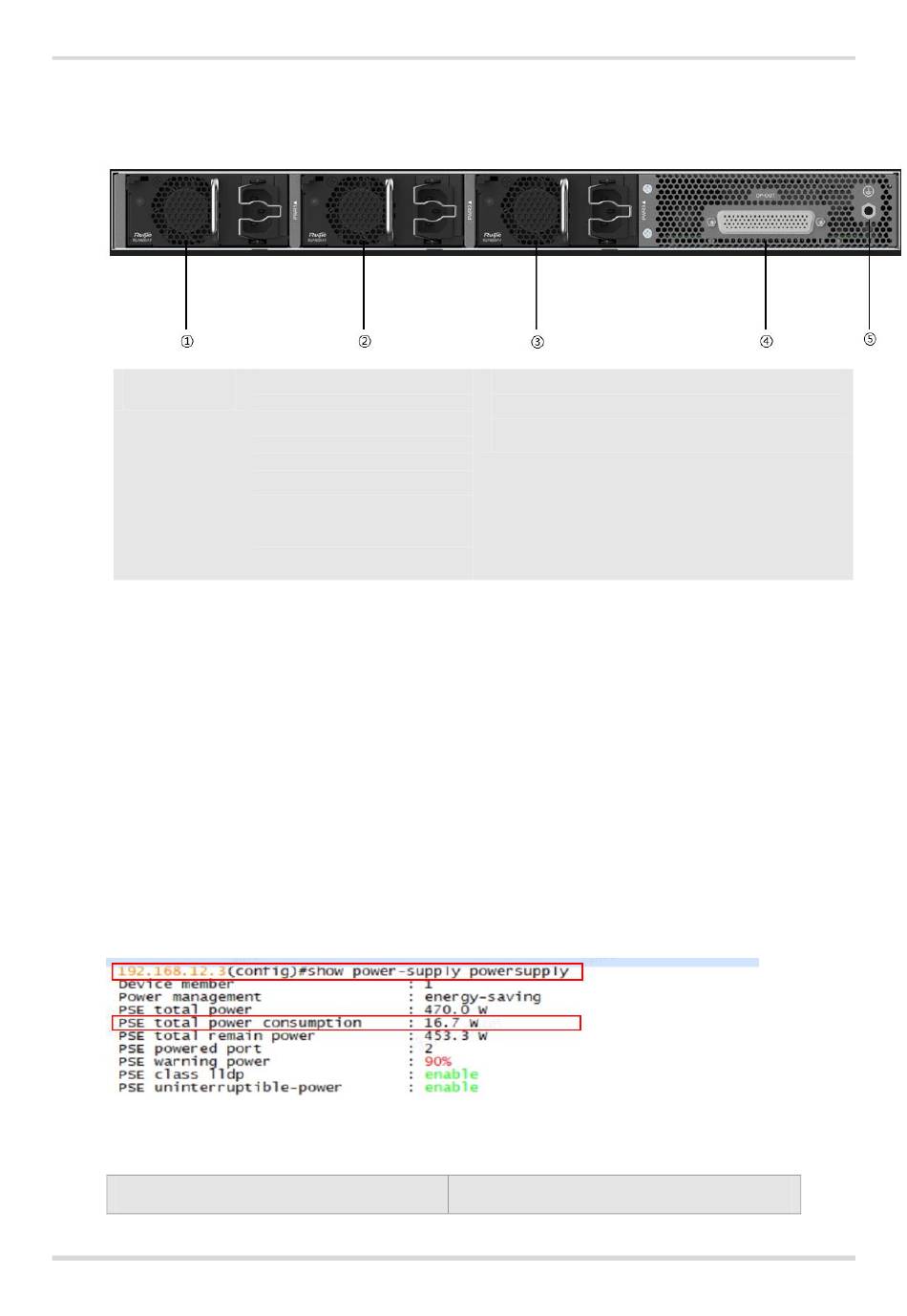

Figure 1-4
Rear Panel of the RG-S5750-24SFP4XS24DP-UP
Note:
1.2.2
Power Supply
The RG-S5750-24SFP4XS24DP-UP supports three power modules. See Chapter 1.3 for details about the
power modules.
The switch can be powered by one power module, or two or three power modules simultaneously. The
number of power modules used is automatically adjusted by the device according to the actual power used.
When three RG-PA600I-P-F power modules are used,the maximum output power of DP-OUT is 1410W.
When three RG-PA1000I-P-F power modules are used,the maximum output power of DP-OUT is 2160W.
Power modules of different models cannot be mixed on the device.
When three power modules work simultaneously, use the show power-supply powersupply command to
check the power module redundancy status.
When two RG-PA1000I-P-F power modules are used, check the redundancy status according to the following
table.
PSE Total Power Consumption
1. Power module slot 1 (a filler
panel is required if the slot is
vacant)
2. Power module slot 2 (a filler
panel is required if the slot is
vacant)
3. Power module slot 3 (a filler
panel is required if the slot is
vacant)
4. DP-OUT connector 2 (provides power supply for
external devices, 54 V)
5. Grounding stud
Redundancy
6
Product Overview
