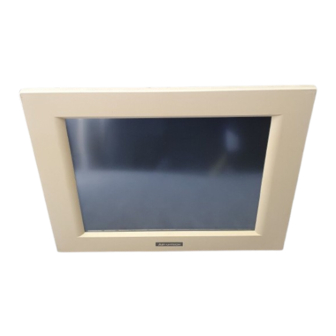

Advantech PPC-153T User Manual

Celeron processor-based panel pc with 15" lcd flat panel display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
sales@artisantg.com
artisantg.com
(217) 352-9330 |
|
Click HERE
Find the Advantech PPC-153T at our website:

Advertisement

Table of Contents
loading

Related Manuals for Advantech PPC-153T

Summary of Contents for Advantech PPC-153T

  • Page 1 (217) 352-9330 | Click HERE Find the Advantech PPC-153T at our website:...
  • Page 2 PPC-153 PPC-153 PPC-153 PPC-153 PPC-153 Celeron™ processor-based panel PC with 15" LCD flat panel display User’s Manual User’s Manual User’s Manual User’s Manual User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Copyright notice This document is copyrighted, 2000, by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to alter the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech.
  • Page 4 FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment.
  • Page 5 Packing List Before installing your panel PC, ensure that the following materials have been received: • PPC-153 series panel PC • User's manual • Accessories for PPC-153 - Y-shaped adapter for PS/2 mouse and AT keyboard - Power cord (1.8 m) - USA type (other types are available on request) - Floppy disk with CD-ROM drive driver - "Drivers and Utilities"...
  • Page 6 Additional Information and Assistance 1. Visit the Advantech websites at www.advantech.com or www.advantech.com.tw where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need addition- al assistance.
  • Page 7 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70dB(A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 8 Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70 dB(A) oder weiger. DISCLAIMER: This set of instructions is given according to IEC704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 9: Table Of Contents

    Contents Chapter 1 General Information Introduction ............2 How to Use This Manual ........4 Specifications ............6 General ................... 6 Standard PC functions ............. 6 PCI SVGA/flat panel interface ..........7 Audio function ................7 PCI bus Ethernet interface ............8 PCMCIA interface ..............
  • Page 10 PS/2 Mouse and Keyboard ........27 PCI/ISA Bus Expansion ........27 Parallel Port............29 Serial COM Ports ..........29 VGA Port .............. 30 3.10 Game Port ............30 3.11 USB Ports ............30 3.12 Audio Interface ............. 31 3.13 Ethernet ............... 31 3.14 Adjusting the LCD Contrast and Brightness ..
  • Page 11 Internal -12 V Source Selection Setting (JP1) ..52 VGA Interface ............53 5.6.1 LCD panel power setting ..........53 5.6.2 Panel type select (SW1) ..........53 Watchdog Timer Configuration ......54 5.7.1 Watchdog activity selection (JP7) ......... 54 Chapter 6 PCI Bus Ethernet Interface Introduction ............
  • Page 12 Chapter 9 Award BIOS Setup Award BIOS Setup ..........82 CMOS Setup Utility ..........82 Standard CMOS Setup ........83 9.3.1 Hard disk configurations ..........84 BIOS Features Setup ........... 85 Chipset Features Setup ........89 Power Management Setup........91 PNP/PCI Configuration Setup ......
  • Page 13 Appendix A LCD Specifications and Selection Settings PPC-153T LCD Specifications ......118 Appendix B Programming the Watchdog Timer Programming the Watchdog Timer ....120 Appendix C Full Disassembly Procedures Appendix D Pin Assignments AT Power Connector (J1) ........132 TV Output Connector (J2) (*Reserved) ....132 Inverter Power Connector (J4) ......
  • Page 14 Appendix E Mounting Instructions Introduction ............150 Panel Mounting ..........150 E.2.1 Introduction ..............150 E.2.2 Installation procedure ..........151 E.2.3 Cut-out area ............... 152 Desktop Stand Mounting ........153 Swingarm Stand Mounting ......... 155 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 15 Tables Table 5-1: Jumpers and their functions ..........45 Table 5-2: Panel PC connectors ............47 Table 5-3: Clear CMOS / External RTC (JP8) ........49 Table 5-4: COM2 RS-232/422/485 setting (JP3, JP4) ....... 50 Table 5-5: COM2 RS-232/422/485 setting (JP5) ....... 50 Table 5-6: Serial port default settings ..........
  • Page 16 Figures Figure 1-1: The panel PC in perspective ..........3 Figure 1-2: How to read the PPC-153 manual ........5 Figure 1-3: Dimensions of the PPC-153 ..........10 Figure 2-1: Front view of the panel PC ..........12 Figure 2-2: Left side view of the panel PC ......... 13 Figure 2-3: Rear view of the panel PC ..........
  • Page 17 Figure C-1: Disassembly steps 1 - 4 ..........125 Figure C-2: Disassembly steps 5 - 6 ..........127 Figure C-3: Disassembly steps 7 - 12 ..........129 Figure E-1: Cutout dimensions of the PPC-153 ....... 150 Figure E-2: Panel mounting ............. 151 Figure E-3: Dimensions of panel mounting holes ......

  • Page 18: Chapter 1 General Information

    General Information This chapter gives background information on the PPC-153 panel PC. • Introduction • How to Use This Manual • Specifications • Dimensions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 19: Introduction

    1.1 Introduction The PPC-153 panel PC is a multimedia Celeron™ processor-based computer that is designed to serve as a human machine interface (HMI) and as a desktop computer. It is a PC-based system with 15" color TFT LCD display, on-board PCI Ethernet controller, multi-COM port interfaces and a 16-bit stereo audio controller.

  • Page 20: Figure 1-1: The Panel Pc In Perspective

    Touchscreen CRT Monitor Network modem Speakers Printer Keyboard Joystick Mouse Figure 1-1: The panel PC in perspective Chapter 1 General Information Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 21: How To Use This Manual

    1.2 How to Use This Manual This manual contains all the information you need to set up and use the panel PC. In addition to this manual, you may also want to consult the manuals for your operating system, software applications and peripherals.

  • Page 22: Figure 1-2: How To Read The Ppc-153 Manual

    Appendix D includes all pin assignments on the connectors. Appendix E helps users install the panel PC, which is mountable in a variety of ways. If you are a commercial user and the panel PC unit you bought is a complete set with CPU, hard disk drive, SDRAM, CD-ROM drive, floppy disk drive and PCMCIA expansion slots included, you may only need to read Chapters 1 through 3 regarding hardware operation.

  • Page 23: Specifications

    Specifications General • Dimensions (W x H x D): 420 x 323 x 106 mm (16.54" x 12.72" x 4.17") • Weight: 6.5 kg (14.4 lb) • Power supply: 80 watts Input voltage: 85 V / 3 A ~ 264 V / 1.5 A @ 47 ~ 63 Hz Output voltage: +5 V @ 12 A, +12 V @ 1 A •...

  • Page 24: Pci Svga/Flat Panel Interface

    • Parallel port: One parallel port, supports SPP/EPP/ECP parallel mode. BIOS configurable to LPT1, LPT2, LPT3 or disabled • Serial ports: Four serial ports with three RS-232 ports (COM1, 3, and 4), one RS-232/422/485 port (COM2). All ports are compatible with 16C550 UARTs •...

  • Page 25: Pci Bus Ethernet Interface

    PCI bus Ethernet interface • Chipset: Realtek RTL 8139B PCI local bus Ethernet controller • Ethernet interface: Full compliance with IEEE 802.3u 100Base-T and 10 Base-T specifications. Includes software drivers and boot ROM • 100/10Base-T auto-sensing capability PCMCIA interface • Chipset: RICOH RB5C478B •...

  • Page 26: Optional Modules

    Note: The panel PC with the optionally installed touch- screen will share COM4. Once the touchscreen is installed, COM4 cannot be used for other purposes. Optional modules ® • CPU: Intel Celeron™ 300 ~ 500 MHz • Memory: 32/64/128/256 MB SDRAM •...

  • Page 27: Dimensions

    1.4 Dimensions Unit: mm Figure 1-3: Dimensions of the PPC-153 PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 28: Chapter 2 System Setup

    System Setup • A Quick Tour of the Panel PC • Preparing for First-time Use • Installation Procedures • Running the BIOS Setup Program • Installing System Software • Installing the Drivers Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 29: A Quick Tour Of The Panel Pc

    2.1 A Quick Tour of the Panel PC Before you start to set up the panel PC, take a moment to become familiar with the locations and purposes of the controls, drives, connectors and ports, which are illustrated in the figures below. When you place the panel PC upright on the desktop, its front panel appears as shown in Figure 2-1.

  • Page 30: Figure 2-2: Left Side View Of The Panel Pc

    When you look at the left side of the panel PC, you will see the floppy disk drive, CD-ROM drive and PCMCIA expansion sockets, as shown in Fig. 2-2. Compact CD-ROM drive FDD eject button CD-ROM drive activity light FDD slot CD-ROM eject button PCMCIA socket FDD activity light...

  • Page 31: Figure 2-3: Rear View Of The Panel Pc

    PCI/ISA expansion slot cover PS/2 mouse and keyboard connector USB ports Ethernet jack Parallel port Brightness adjust knob Serial ports Contrast adjust knob Line-out jack VGA port Line-in jack Game port Microphone-in jack Figure 2-3: Rear view of the panel PC Figure 2-4 shows the I/O section and power switch of the panel PC.

  • Page 32: Preparing For First-Time Use

    2.2 Preparing For First-time Use Before you start to set up the panel PC system, you should have at least the following items ready: • Power cord (in the accessory box) • Y-shaped connector (in the accessory box) • AT keyboard •...

  • Page 33: Connecting The Keyboard And Mouse

    2.3.2 Connecting the keyboard and mouse 1. Connect the Y-shaped adapter to the PS/2 mouse and keyboard port on the I/O section of the panel PC. (See Fig. 2-6.) 2. Connect the PS/2 mouse and keyboard to the Y-shaped adapter. (See Fig.

  • Page 34: Running The Bios Setup Program

    2.4 Running the BIOS Setup Program Your panel PC is likely to have been properly set up and configured by your dealer prior to delivery. You may still find it necessary to use the panel PC's BIOS (Basic Input-Output System) setup program to change system configuration information, such as the current date and time or your type of hard drive.

  • Page 35: Installing System Software

    2.5 Installing System Software Recent releases of operating systems from major vendors include setup programs which load automatically and guide you through hard disk preparation and operating system installation. The guidelines below will help you determine the steps necessary to install your operating system on the panel PC hard drive.

  • Page 36: Installing The Drivers

    2.6 Installing the Drivers After installing your system software, you will be able to set up the Ethernet, SVGA, audio, PCMCIA and touchscreen functions. All the drivers except the CD-ROM drive driver are stored in a CD-ROM disc entitled "Drivers and Utilities." The CD-ROM drive driver is stored in a floppy disk.
  • Page 37 Note: The drivers and utilities used for the PPC-153 panel PCs are subject to change without notice. If in doubt, check Advantech's website or contact our application engineers for the latest information regarding drivers and utlities. PPC-153 User's Manual...

  • Page 38: Chapter 3 Using The Panel Pc

    Using the Panel PC • Introduction • Floppy Drive • CD-ROM Drive • PCMCIA • PS/2 Mouse and Keyboard • PCI/ISA Bus Expansion • Parallel Port • Serial COM Ports • VGA Port • Game Port • USB Ports • Audio Interface •...

  • Page 39: Introduction

    3.1 Introduction This chapter describes basic features and procedures for using the panel PC. Topics covered include the floppy drive, CD-ROM drive, I/O ports, touchscreen, and so on. 3.2 Floppy Drive To insert a floppy disk, hold it with your left hand, between your thumb and your other fingers, and push it toward the drive.

  • Page 40: Cd-Rom Drive

    3.3 CD-ROM Drive To insert a CD-ROM disc, press the eject button of the CD-ROM drive. The yellow activity light will flash and the front panel will come out a short distance. Using your fingertips, hold the top and bottom of the front panel and pull it outward to the very end. (See Fig 3-2.) Align the center hole of the CD-ROM disc with the center circle of the CD-ROM holding plate.

  • Page 41: Pcmcia

    3.4 PCMCIA PCMCIA cards are inserted and ejected in much the same way as diskettes. To insert a PCMCIA card, align the card with the socket and slide the card into the socket until it locks into place. Note that some PCMCIA memory cards must be prepared by your operating system before you can use them for data storage.

  • Page 42: Figure 3-4: Using The I/O Interface

    PS/2 Network mouse Printer keyboard Figure 3-4: Using the I/O interface (upper level ports excluding COM ports) Chapter 3 Using the Panel PC Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 43: Figure 3-5: Using The I/O Interface (Lower Level Ports And Com Ports)

    Serial CD-ROM player monitor mouse Headphones Microphone Joystick Figure 3-5: Using the I/O interface (lower level ports and COM ports) PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 44: Ps/2 Mouse And Keyboard

    3.5 PS/2 Mouse and Keyboard If you wish to use a full-size desktop keyboard and PS/2 mouse with your panel PC, follow these instructions: 1. Be sure the panel PC is turned off. 2. Connect the Y-shaped adapter to the PS/2 mouse and keyboard port on the rear bottom side of the rear cover.

  • Page 45: Figure 3-6: Pci/Isa Bus Expansion

    PCI/ISA expansion slot cover PCI/ISA bus card Metal plate Figure 3-6: PCI/ISA bus expansion PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 46: Parallel Port

    3.7 Parallel Port The panel PC supports the latest EPP and ECP parallel port protocols for improved performance and versatility with compatible printers or other devices. To connect the panel PC to a printer or other devices: 1. Be sure both the panel PC and the printer/devices are turned off. 2.

  • Page 47: Vga Port

    3.9 VGA Port An external VGA-compatible device may be connected to the system through the 15-pin external port located on the rear of the system unit. The panel PC simultaneously supports an external CRT monitor in addition to its own LCD display. 1.

  • Page 48: Audio Interface

    3.12 Audio Interface The audio interface includes three jacks: microphone in, line out and line in. (See Fig. 3-5.) Their functions are: Microphone in: Use an external microphone to record voice and sound. Line out: Output audio to external devices such as speakers or earphones.

  • Page 49: Touchscreen (Optional)

    3.15 Touchscreen (Optional) The touchscreen is connected to COM4. Its function is similar to that of a mouse. The only difference is that you put your fingertip on the screen to move the cursor. You will need to install the touchscreen driver before it will work. The touchscreen drivers for various operating systems are stored on the CD-ROM disc inside the accessory box.

  • Page 50: Chapter 4 Hardware Installation And Upgrading

    Hardware Installation and Upgrading • Overview of Hardware Installation and Upgrading • Disassembling the Panel PC • Installing the 2.5" Hard Disk Drive (HDD) • Installing the Central Processing Unit (CPU) • Installing the SDRAM Memory Module • Installing the Floppy Disk Drive (FDD) and Slim CD-ROM Drive Artisan Technology Group - Quality Instrumentation ...

  • Page 51: Overview Of Hardware Installation And Upgrading

    4.1 Overview of Hardware Installation and Upgrading The panel PC consists of a PC-based computer that is housed in a plastic rear panel and a metal shielding case. Your HDD, SDRAM, power supply, CPU, and so on are all readily accessible by removing the rear panel and shielding case.

  • Page 52: Figure 4-1: Disassembling The Plastic Rear Cover Of The Panel Pc

    Plastic rear cover CPU fan and cover PCI/ISA expansion PCB Side panel Figure 4-1: Disassembling the plastic rear cover of the panel PC Chapter 4 Hardware Installation and Upgrading Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 53: Installing The 2.5" Hard Disk Drive (Hdd)

    4.3 Installing the 2.5" Hard Disk Drive (HDD) You can attach one enhanced Integrated Device Electronics (IDE) hard disk drive to the panel PC's internal controller which uses a PCI local-bus interface. The advanced IDE controller supports faster data transfer and allows the IDE hard drive to exceed 528 MB. The follow- ing are instructions for installation: 1.

  • Page 54: Installing The Central Processing Unit (Cpu)

    4.4 Installing the Central Processing Unit (CPU) The panel PC's central processing unit (CPU) can be upgraded to improve system performance. The panel PC provides one 370-pin ZIF (Zero Insertion Force) socket (Socket 370). The CPU must come with an attached heat sink and CPU fan to prevent overheating. Warning! The CPU may be damaged if operated without a heat sink and a fan.
  • Page 55 8. Insert the CPU with the correct orientation. The notched corner of the CPU (with the white dot) should point towards the end of the lever. The end of the lever is the blank area where one hole is missing from the corner of the square array of pin holes. An arrowhead printed on the motherboard points to the end of the lever.

  • Page 56: Figure 4-3: Installing The Cpu

    CPU fan CPU cover Heat sink clip Heat sink Lever Socket 370 Figure 4-3: Installing the CPU Chapter 4 Hardware Installation and Upgrading Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 57: Installing The Sdram Memory Module

    4.5 Installing the SDRAM Memory Module You can install from 32 to 256 MB of SDRAM memory. The panel PC system provides one 168-pin DIMM (Dual Inline Memory Module) socket and supports 3.3 V SDRAM with a minimum speed of 12 ns. Note: The module can fit into the socket only one way.

  • Page 58: Installing The Floppy Disk Drive (Fdd) And Slim Cd-Rom Drive

    4.6 Installing the Floppy Disk Drive (FDD) and Slim CD-ROM Drive Installation of a floppy disk drive and slim CD-ROM drive is similar to that for a hard disk drive. The metal plate for holding the FDD and the CD-ROM support bracket are on the left side of the shielding case. The 26-pin and 40-pin yellow FPC cables are for connecting the FDD and CD-ROM respectively.

  • Page 59: Figure 4-5: Installing The Fdd And Slim Cd-Rom Drive

    9. Connect the FDD cable (26-pin to 26-pin) and CD-ROM cable (40-pin to 40-pin). The other end of the FDD cable is connected to connector CN10 on the PC board. The other end of the CD-ROM cable is connected to connector CN18 on the PC board. 10.

  • Page 60: Chapter 5 Jumper Settings And Connectors

    Jumper Settings and Connectors This chapter tells how to set up the panel PC hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all the safety precautions before you begin the installation procedures. •...

  • Page 61: Jumpers And Connectors

    5.1 Jumpers and Connectors 5.1.1 Setting jumpers You can configure your panel PC to match the needs of your applica- tion by setting jumpers. A jumper is the simplest kind of electrical switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 62: Jumpers And Switch

    5.1.2 Jumpers and switch The motherboard of the panel PC has a number of jumpers that allow you to configure your system to suit your applications. The table below lists the function of each of the board’s jumpers. Table 5-1: Jumpers and their functions Label Function Internal -12 V source selection setting...

  • Page 63: Locating Jumpers And Switch

    5.1.3 Locating jumpers and switch JP7: Watchdog timer action JP2: Wake on LAN JP8: CMOS clear (Reserved) for external RTC JP1: Internal -12 V source selection setting SW1: Panel type setting JP6: COM3 / COM4 JP3: COM2 Pin 9 output type RS-232/422/485 setting setting...

  • Page 64: Connectors

    5.1.4 Connectors Onboard connectors link the panel PC to external devices such as hard disk drives or floppy drives. The table below lists the function of each of the board’s connectors. Table 5-2: Panel PC connectors Label Function AT power connector Inverter power connector Internal speaker connector (Reserved) Touchscreen power connector...

  • Page 65: Locating Connectors

    5.1.5 Locating connectors FAN2: System fan power connector J4: Inverter power J8: Front panel connector control connector (Reserved) J6: Internal J1: AT power speaker connector connector (Reserved) SLOT1: PCI/ISA expansion connector FAN1: CPU fan power connector CN16: EIDE hard disk drive CN10: Floppy connector drive connector...

  • Page 66: Cpu Installation

    5.2 CPU Installation You can install an Intel Celeron™ 300 ~ 500 MHz CPU without setting any frequency ratio or voltage. 5.3 CMOS Clear for External RTC (JP8) Warning: To avoid damaging the computer, always turn off the power supply before setting “Clear CMOS”. Set the jumper back to “Normal operation”...

  • Page 67: Com-Port Interface

    5.4 COM-port Interface The panel PC provides four serial ports (COM1, 3, 4: RS-232; COM2: RS-232/422/485) in one COM port connector. 5.4.1 COM2 RS-232/422/485 setting (JP3, JP4, JP5) COM2 can be configured to operate in RS-232, RS-422, or RS-485 mode. This is done via JP3, JP4 and JP5. Table 5-4: COM2 RS-232/422/485 setting (JP3, JP4) *RS-232 RS-422/485...

  • Page 68: Com1 / Com2 Pin 9 Output Type Setting (Jp9)

    COM1 and COM2 are one set. You can exchange the address range and interrupt IRQ of COM1 for the address range and interrupt IRQ of COM2. After exchanging, COM1's address range is 2F8 ~ 2FF and its request IRQ is IRQ3: and COM2's address range is 3F8 ~ 3FF and its interrupt IRQ is IRQ4.

  • Page 69: Com3 / Com4 Pin 9 Output Type Setting (Jp6)

    5.4.3 COM3 / COM4 pin 9 output type setting (JP6) Table 5-8: COM3/RI pin setting (JP6) *Normal operation +5 V output +12 V output * default setting Note: Pins 1, 3 and 5 are for COM3. Pins 2, 4 and 6 are for COM4. 5.5 Internal -12 V Source Selection Setting (JP1) The panel PC provides an internal -12 V source in an expansion slot,...

  • Page 70: Vga Interface

    5.6 VGA Interface The panel PC's AGP VGA interface can drive conventional CRT displays. It is also capable of driving a wide range of flat panel displays, including electroluminescent (EL), gas plasma, passive LCD and active LCD displays. The board has two connectors to support these displays simultaneously: one for standard CRT VGA monitors, and one for flat panel displays.

  • Page 71: Watchdog Timer Configuration

    5.7 Watchdog Timer Configuration An onboard watchdog timer reduces the chance of disruptions which EMP (electromagnetic pulse) interference can cause. This is an invaluable protective device for standalone or unmanned applications. Setup involves one jumper and running the control software. (Refer to Appendix B.) 5.7.1 Watchdog activity selection (JP7) When the watchdog timer activates (i.e.

  • Page 72: Chapter 6 Pci Bus Ethernet Interface

    PCI Bus Ethernet Interface This chapter provides information on Ethernet configuration. • Introduction • Installation of Ethernet Driver - for Windows 95 - for Windows 98 - for Windows NT • Further Information Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 73: Introduction

    6.1 Introduction The PPC-153 is equipped with a high performance 32-bit Ethernet chipset which is fully compliant with IEEE 802.3 100 Mbps CSMA/CD standards. It is supported by major network operating systems. It is also both 100Base-T and 10Base-T compatible. The medium type can be configured via the RSET8139.exe program included on the utility disk.

  • Page 74: Installation For Windows 95

    6.2.1 Installation for Windows 95 a. Select "Start", "Settings", "Control Panel", "System". b. Click the "Device Manager" and "Other Devices" items. Remove the "PCI Ethernet Controller" item. a. Select "Start", "Settings", "Control Panel", and "Network" icons. Click the "Add" button. Select "Adapter", and then click the "Add"...
  • Page 75 Type the path "D:\ PPC123~7\LAN\ W 9 5 O S R 2 " Click the "OK" button. a. Choose the highlighted "Realtek RTL8139(A/B/C/ 8130)PCI Fast Ethernet". Press the "OK" button. Press the "Add..." button to select suitable services or protocol. Press the "OK"...

  • Page 76: Installation For Windows 98

    6.2.2 Installation for Windows 98 a. Select "Start", "Settings", "Control Panel", "System". b. Click the "Device Manager" and "Other Devices" items. Remove the "PCI Ethernet Controller" item. a. Select "Start", "Settings", "Control Panel", and "Network" icons. Click the "Add" button. Select "Adapter", and then click the "Add"...
  • Page 77 Type the path: D:\ PPC123&153\LAN\ W I N 9 8 Click the "OK" button. a. Choose the highlighted "Realtek RTL8139[A/B/C/ 8130]PCI Fast Ethernet NIC". Press the "OK" button. Press the "Add..." button to select suitable services or protocol. Press the "OK" button to finish network configuration.

  • Page 78: Installation For Windows Nt

    6.2.3 Installation for Windows NT a. Select "Start", "Settings", "Control Panel", and then double click the "Network" icon. b. Choose the "Adapters" label. Click the "Add" button. a. Press "Have Disk...". Type the path: D:\ PPC123&153\LAN\ W I N N T Press the "OK"...
  • Page 79 Choose the highlighted "RTL8139[A/B/C/ 8130] PCI Fast Ethernet Adapter". Click the "OK" button. Choose a suitable RTL8139 Duplex mode for your application. Finish the network configuration and then click the "OK" button. PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 80: Further Information

    6.3 Further Information Realtek website: www.realtek.com.tw Advantech websites: www.advantech.com www.advantech.com.tw Chapter 6 PCI Bus Ethernet Interface Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 81 PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 82: Chapter 7 Pci Svga Setup

    PCI SVGA Setup • Introduction • Installation of SVGA Driver - for Windows 95 - for Windows 98 - for Windows NT • Further Information Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 83: Introduction

    7.1 Introduction The PPC-153 has an onboard AGP flat panel/VGA interface. The specifications and features are described as follows: 7.1.1 Chipset The PPC-153 uses a LynxEM SMI 710 chipset from Silicon Motion Inc. for its AGP/SVGA controller. It supports many popular LCD, EL, and gas plasma flat panel displays and conventional analog CRT monitors.

  • Page 84: Installation Of Svga Driver

    7.2 Installation of SVGA Driver Complete the following steps to install the SVGA driver. Follow the procedures in the flow chart that apply to the operating system that you you are using within your PPC-153. Important: The following windows illustrations are examples only.

  • Page 85: Installation For Windows 95

    7.2.1 Installation for Windows 95 a. Select "Start", "Settings", "Control Panel", "Display", "Settings". b. Press the "Advanced Properties" button. a. Choose the "Adapter" label. Press the "Change..." button. Press the "Have Disk" button. PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 86 Type the path: D:\ PPC123~7\VGA\ W I N 9 X a. Select the highlighted item. Click the "OK" button. "Silicon Motion LynxEM" appears in the adapter label. Click the "Apply" button. Click the "OK" button. Press "Yes" to reboot. Chapter 7 PCI SVGA Setup Artisan Technology Group - Quality Instrumentation ...

  • Page 87: Installation For Windows 98

    7.2.2 Installation for Windows 98 a. Select "Start", "Settings", "Control Panel", "Display", "Settings". b. Press the "Advanced..." button. a. Choose the "Adapter" label. Press the "Change..." button. Choose the second option: "Display...". Press the "Have Disk..." button. PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ...
  • Page 88 Insert the disc into the CD-ROM drive. Type the path "D:\ PPC123&153\VGA\ Win98" Press "OK". a. Select the highlighted item. Click the "OK" button. "Silicon Motion LynxEM" appears in the adapter label. Click the "Apply" button. Press "Yes" to reboot. Chapter 7 PCI SVGA Setup Artisan Technology Group - Quality Instrumentation ...

  • Page 89: Installation For Windows Nt

    7.2.3 Installation for Windows NT Note: Service Pack X (X = 3, 4, 5, 6, ...) must be installed first before you install the Windows NT VGA driver. a. Select "Start", "Settings", "Control Panel". b. Double click the "Display" icon. a.
  • Page 90 Type the path: D:\ PPC123&153\VGA\ N T 4 0 Press the "OK" button. a. Select the highlighted item. Click the "OK" button. Press the "Yes" to proceed. Press "OK" to reboot. Chapter 7 PCI SVGA Setup Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 91: Further Information

    For further information about the AGP/SVGA installation in your PPC-153, including driver updates, troubleshooting guides and FAQ lists, visit the following web resources: Silicon Motion website: www.siliconmotion.com Advantech websites: www.advantech.com www.advantech.com.tw PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 92: Chapter 8 Audio

    Audio • Introduction • Installation of Audio Driver - for Windows 95/98 - for Windows NT Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 93: Introduction

    8.1 Introduction The PPC-153's onboard audio interface provides high-quality stereo sound and FM music synthesis (ESFM) by using the ES1946S audio controller from ESS Technology, Inc. The audio interface can record, compress, and play back voice, sound, and music with a built-in mixer control.

  • Page 94: Installation For Windows 95/98

    8.2.1 Installation for Windows 95/98 a. Select "Start", "RUN". Enter the driver path: "D:\ PPC123&153\ Audio\win9x(only)\ Setup.exe" a. Click "Next" to continue the installation. a. Select "Upgrade Drivers". Click "Next". a. When installation is completed, click "Finish" to restart your computer.
  • Page 95 a. After installation, select "Start", "Settings", "Control Panel", "System". Click the "Device Manager" tab to see the result of your installation. PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 96: Installation For Windows Nt

    8.2.2 Installation for Windows NT a. Select "Start", "Settings", "Control Panel". Double Click the "Multimedia" icon. a. Select the "Devices", item. Click the "Add..." button. a. Choose the "Unlisted or Updated Driven" item. b. Click the "OK" buttom. a. Type the path "D:\ ppc123&153\audio\ nt4.0\ b.
  • Page 97 a. Select the highlighted item. b. Press the "OK" button. a. Press the "Restart Now" button to reboot your computer. PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 98: Chapter 9 Award Bios Setup

    Award BIOS Setup This chapter describes how to set BIOS configuration data. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 99: Award Bios Setup

    This is because the BIOS is revised and updated from time to time. If in doubt, check Advantech's website for the latest BIOS versions and related information. 9.2 CMOS Setup Utility...

  • Page 100: Standard Cmos Setup

    A setup program, built into the system BIOS, is stored in the CMOS RAM that allows the configuration settings to be changed. This program is executed when the user changes the system configuration; when the user changes the system backup battery; or when the system detects a configuration error and asks the user to run the setup program.

  • Page 101: Hard Disk Configurations

    9.3.1 Hard disk configurations T Y P E T Y P E T Y P E T Y P E T Y P E Select from 1 to 45 to fill the remaining fields with predefined values for disk drives. Select "User" to fill the remaining fields. Select "Auto"...

  • Page 102: Bios Features Setup

    9.4 BIOS Features Setup Figure 9-3: BIOS features setup screen Moving around the BIOS Features and Chipset Features setup programs works the same way as moving around the Standard CMOS setup program. (Refer to the next section for Chipset Features setup.) The BIOS Features setup program is shown above.
  • Page 103 CPU Internal Cache CPU Internal Cache CPU Internal Cache CPU Internal Cache CPU Internal Cache When enabled, it improves system performance. Disable this item when testing or troubleshooting. The options are: Enabled (Default), Disabled. External Cache External Cache External Cache External Cache External Cache When enabled, supports an external cache SRAM.
  • Page 104 D, A, SCSI CDROM, C, A C, CDROM, A Swap Floppy Drive Swap Floppy Drive Swap Floppy Drive Swap Floppy Drive Swap Floppy Drive When enabled, allows you to switch the order in which the operating system accesses the floppy drives during boot-up. The options are: Disabled (Default), Enabled.
  • Page 105 Security Option Security Option Security Option Security Option Security Option Allows you to set the security level of the system. The options are: Setup (Default), System. PS/2 Mouse Function Control PS/2 Mouse Function Control PS/2 Mouse Function Control PS/2 Mouse Function Control PS/2 Mouse Function Control When enabled, the PS/2 mouse is activated.

  • Page 106: Chipset Features Setup

    9.5 Chipset Features Setup Note: It is strongly recommended that setup items in this section NOT be changed, because advanced knowledge is required to effect such changes. Figure 9-4: Chipset features setup screen EDO CASX# MA W EDO CASX# MA W ait State ait State EDO CASX# MA W...
  • Page 107 SDRAM Data Integrity Mode SDRAM Data Integrity Mode SDRAM Data Integrity Mode SDRAM Data Integrity Mode SDRAM Data Integrity Mode When set as Non-ECC, supports standard 64-bit DIMM RAM modules. When set as ECC, supports standard 72-bit ECC RAM modules. The options are: Non-ECC (Default), ECC.

  • Page 108: Power Management Setup

    Delayed T Delayed T ransaction ransaction Delayed T Delayed T Delayed Transaction ransaction ransaction When disabled, the syatem operates normally. When enabled, the system can support lower-speed ISA devices. The options are: Disabled (Default), Enabled. Spread Spectrum Spread Spectrum Spread Spectrum Spread Spectrum Spread Spectrum When disabled, the syatem operates normally.
  • Page 109 PM Contr PM Contr ol by APM ol by APM PM Contr PM Control by APM PM Contr ol by APM ol by APM The option "No" allows the BIOS to ignore the APM (Advanced Power Management) specification. Selecting "Yes" will allow the BIOS to wait for APM's prompt before it enters Doze mode, Standby mode, or Suspend mode.
  • Page 110 Standby Mode Standby Mode Standby Mode Standby Mode Standby Mode The system will not enter Standby mode, because this option is designated as "Disabled". Suspend Mode Suspend Mode Suspend Mode Suspend Mode Suspend Mode The system will not enter Suspend mode, because this option is designated as "Disabled".

  • Page 111: Pnp/Pci Configuration Setup

    9.7 PNP/PCI Configuration Setup Figure 9-6: PNP/PCI configuration setup screen PNP OS Installed PNP OS Installed PNP OS Installed PNP OS Installed PNP OS Installed Select Yes if the installed system supports the PnP function. Select No if the installed system does not support the PnP function. The options are: No (Default), Yes.

  • Page 112: Load Bios Defaults

    Reset Configuration Data Reset Configuration Data Reset Configuration Data Reset Configuration Data Reset Configuration Data When enabled, this feature allows the system to clear the last BIOS configuration data and then reset the data with the default BIOS configuration data. The options are: Disabled (Default), Enabled.

  • Page 113: Load Setup Defaults

    9.9 Load Setup Defaults Selecting this field loads the factory defaults for BIOS and Chipset Features. The system will automatically detect these defaults. 9.10 Integrated Peripherals Figure 9-8: Integrated peripherals screen IDE HDD Block Mode IDE HDD Block Mode IDE HDD Block Mode IDE HDD Block Mode IDE HDD Block Mode This allows your hard disk controller to use the fast block mode to...
  • Page 114 PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the task by themselves. Your system supports five modes, numbered from 0 through 4, which differ primarily in timing.

  • Page 115: Password Setting

    Onboar Onboar d Parallel Port d Parallel Port Onboar Onboard Parallel Port Onboar d Parallel Port d Parallel Port If the parallel port uses the onboard I/O controller, you can modify your parallel port paramaters. When you select "Disabled", the next two setup items will disappear.

  • Page 116: Ide Hdd Auto Detection

    9.12 IDE HDD Auto Detection Figure 9-9: IDE HDD auto detection screen The IDE Hard Disk Drive Auto Detection feature automatically configures your new hard disk. Use it for quick configuration of new hard disk drives. This feature allows you to set the parameters of up to four IDE HDDs.

  • Page 117: Save And Exit Setup

    9.13 Save and Exit Setup Figure 9-10: Save and exit setup screen After you have made changes in the BIOS setup, press "Esc" to return to the main menu. Move the cursor to "Save and Exit Setup", or press "F10" and then press "Y", to change the CMOS Setup. If you did not change anything, press "Esc"...

  • Page 118: Chapter 10 Pcmcia

    PCMCIA • Introduction • Installation of PCMCIA Driver - for Windows 95 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 119: Introduction

    10.1 Introduction The PPC-153 is equipped with a high performance PCMCIA interface which complies with the 1995 PCMCIA card standard by using the RICOH Cardbus controller. The panel PC supports two PCMCIA card/cardbus slots. Two sockets support both a 16-bit PCMCIA card and a 32-bit Cardbus simultaneously, with hot insertion and removal.

  • Page 120: Installation For Windows 95

    10.2.1 Installation for Windows 95 a. In "Start", "Run", type the path: D:\ PPC123&153\ Cardbus\win95osr2\ Setup.exe a. Click "Next". a. Click "Yes". a. Click "Finish" to reboot the system. Chapter 10 PCMCIA Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 121 PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 122: Chapter 11 Touchscreen

    Touchscreen • Introduction • Installation of Driver for Resistive or SAW Touchscreen - for Windows 95 - for Windows 98 - for Windows NT • Installation of Driver for Capacitive Touchscreen - for Windows 95/98/NT Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 123: Introduction

    11.1 Introduction 11.1.1 General information The PPC-153's optional touchscreen incorporates advanced second-generation 5-wire resistive, impact-resistant capacitive, or surface acoustic wave (SAW) technology. They allow 75%, 85%, and 91% light transmission respectively. The resistive and capacitive models have an antiglare surface, but the SAW model does not. All models provide greatly enhanced visual resolution.

  • Page 124: Installation Of Driver For Resistive Or Saw Touchscreen

    Chemical resistance: The active area of the touchscreen is resistant to the following chemicals when exposed for a period of one hour at a temperature of 21° C (71° F): - Acetone - Methylene chloride - Methyl ethyl ketone - Isopropyl alcohol - Hexane - Ammonia-based glass cleaners - Turpentine...

  • Page 125: Installation For Windows 95

    11.2.1 Installation for Windows 95 a. Insert the "Drivers and Utilities" CD. Click the "Start" button, and then "Run". c. Type the path "D:\ PPC123&153\ Elotouch\Win95\ Setup.exe". a. Click "Yes". a. Select the "Smart serial Controller on COM4" item. b. Press the "OK" button.
  • Page 126 a. Touch targets to calibrate the touchscreen controller. Chapter 11 Touchscreen Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 127: Installation For Windows 98

    11.2.2 Installation for Windows 98 If you want to use the touchscreen driver CD-ROM accompanying your panel PC, refer to the following flow chart instructions. a. Insert the "Drivers and Utilities" CD. Click the "Start" button, and then "Run". c. Type the path "D:\ PPC123&153\ Elotouch\Win98\ Setup.exe".
  • Page 128 a. Touch targets to calibrate the touchscreen controller. Chapter 11 Touchscreen Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 129: Installation For Windows Nt

    11.2.3 Installation for Windows NT a. Select "Start", "Run". Type the path "D:\ PPC123&153\ Elotouch\WINNT\ Setup.exe" a. Press the "Next" button. a. Set the directory path. a. Choose a suitable item. PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 130 a. Choose COM4. b. Press "OK". a. Click "OK" to reboot the system. a. Calibrate the touchscreen. Chapter 11 Touchscreen Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 131: Installation Of Driver For Capacitive Touchscreen

    11.3 Installation of Driver for Capacitive Touchscreen To facilitate installation of the touchscreen driver, you should read the instructions in this chapter carefully before you attempt installation. Important: The following windows illustrations are examples only. You must follow the flow chart instructions and pay attention to the instructions which then appear on your screen.

  • Page 132: Installation For Windows 95/98/Nt

    11.3.1 Installation for Windows 95/98/NT a. Select "Start", "Run". b. Type in: D:\ PPC123&153\ Microtouch\Tware54\ Setup.exe a. Follow the installation instructions, and click on "Next". a. If you accept the terms of the License Agreement, click on "Yes". a. Select the Serial [Default] controller.
  • Page 133 a. Select the "Express Install..." item. b. Click on "Next". a. Select the "Yes, ..." item to reboot the system and finish the touchscreen driver installation. a. Click on "Calibrate" to calibrate the touchscreen. b. Touch the "target point" for a moment, until the next "Touch enable"...

  • Page 134: Settings

    LCD Specifications and Selection Settings Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 135: Ppc-153T Lcd Specifications

    However, it may contain a few defective pixels which do not always illuminate. With current technology, it is impossible to complete- ly eliminate defective pixels. Advantech is actively working to improve this technology. PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 136: Appendix B Programming The Watchdog Timer

    Programming the Watchdog Timer The PPC-153 is equipped with a watch- dog timer that resets the CPU or generates an interrupt if processing comes to a standstill for any reason. This feature ensures system reliability in industrial standalone or unmanned environments. Artisan Technology Group - Quality Instrumentation ...

  • Page 137: Programming The Watchdog Timer

    B.1 Programming the Watchdog Timer To program the watchdog timer, you must write a program which writes I/O port address 443 (hex). The output data is a time interval value. The value range is from 01 (hex) to 3E (hex), and the related time interval is from 1 sec.
  • Page 138 The following example shows how you might program the watchdog timer in BASIC: Watchdog timer example program OUT &H443, data REM Start and restart the watchdog GOSUB 1000 REM Your application task #1, OUT &H443, data REM Reset the timer GOSUB 2000 REM Your application task #2, OUT &H443, data REM...
  • Page 139 PPC-153 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 140: Appendix C Full Disassembly Procedures

    Full Disassembly Procedures Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 141 If you want to completely disassemble the panel PC, follow the step-by-step procedures below. Users should be aware that Advantech Co., Ltd. takes no responsibility whatsoever for any problems or damage caused by the user disassembly of the panel PC. Make sure the power cord of the panel PC is unplugged before you start disas- sembly.

  • Page 142: Figure C-1: Disassembly Steps 1 - 4

    Step 1 & Step 2 Step 4 Step 3 Figure C-1: Disassembly steps 1 - 4 Appendix C Full Disassembly Procedures Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 143 5. Unscrew the fourteen screws of the I/O bracket with a hexagonal screwdriver. The EMI protection cover lies below the I/O bracket. You can now remove both the bracket and the cover from the I/O ports. 6. Detach the flat cables of the LCD inverter, touchscreen and LCD from the motherboard.

  • Page 144: Figure C-2: Disassembly Steps 5 - 6

    I/O bracket Step 5 protection Motherboard Step 6 Figure C-2: Disassembly steps 5 - 6 Appendix C Full Disassembly Procedures Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 145 7. Unscrew the four screws on the power supply board. The power supply board can be detached from the plastic housing after unplugging the cables from the motherboard. 8. Remove the front panel by hand. 9. Unscrew the ten screws on the LCD holding plate to seperate the plastic housing and LCD holding plate.The LCD inverter can also be detached by unscrewing the three screws at the bottom (Toshiba LCD only).

  • Page 146: Figure C-3: Disassembly Steps 7 - 12

    Power Step 7 supply Step 10 Plastic housing Step 11 Step 9 LCD holding plate Step 12 Touchscreen Step 8 Front panel Figure C-3: Disassembly steps 7 - 12 Appendix C Full Disassembly Procedures Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 147 PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 148: Appendix D Pin Assignments

    Pin Assignments • AT Power Connector (J1) • TV Output Connector (J2) (*Reserved) • Inverter Power Connector (J4) • Internal Speaker Connector (J6) (Reserved) • Touchscreen Power Connector (J7) • Front Panel Control Connector (J8) (Reserved) • IR Connector (J9) (Reserved) •...

  • Page 149: At Power Connector (J1)

    D.1 AT Power Connector (J1) Table D-1: AT power connector (J1) Signal PS_NO # +5 VSB +12 V -12 V -5 V +5 V +5 V +5 V D.2 TV Output Connector (J2) (*Reserved) Table D-2: TV output connector (J2) Signal CVBS PPC-153 User’s Manual...

  • Page 150: Inverter Power Connector (J4)

    D.3 Inverter Power Connector (J4) Table D-3: Inverter power connector (J4) Signal +12 V ENABKL Brightness Adj. +5 V D.4 Internal Speaker Connector (J6) (*Reserved) Table D-4: Internal speaker connector (J6) Signal Speaker out_R - Speaker out_R + Speaker out_L + Speaker out_L - D.5 Touchscreen Power Connector (J7) Table D-5: Touchscreen power connector (J7)

  • Page 151: Front Panel Control Connector (J8) (*Reserved)

    D.6 Front Panel Control Connector (J8) (*Reserved) Table D-6: Front panel control connector (J8) (*Reserved) Signal HDD LED Reset SW Power SW D.7 IR Connector (J9) (*Reserved) Table D-7: IR connector (J9) (Reserved) Signal IR_IN IR_OUT PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 152: Flat Panel Display Connector (Cn2)

    D.8 Flat Panel Display Connector (CN2) Table D-8: Flat panel display connector (CN2) Signal Signal VDDSAFE5 VDDSAFE5 VDDSAFE3 VDDSAFE3 Vcon SHFCLK M/DE ENABKL ENAVEE Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 153: Flat Panel Display Connector (Cn3)

    D.9 Flat Panel Display Connector (CN3) Table D-9: Flat panel display connector (CN3) Signal Signal VDDSAFE5 VDDSAFE5 VDDSAFE3 VDDSAFE3 Vcon SHFCLK M/DE ENABKL ENAVEE PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 154: Panellink Interface (Cn4) (*Reserved)

    D.10 PanelLink Interface (CN4) (*Reserved) Table D-10: PanelLink Interface (CN4) (*Reserved) Signal Signal TXC- TX1+ TXC+ TX2- TX0- TX2+ EDGE TX0+ 2NDSDA TX1- 2NDSCL Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 155: Floppy Drive Connector (Cn10)

    D.11 Floppy Drive Connector (CN10) Table D-11: Floppy drive connector (CN10) Signal Signal (+5 V) STEP INDEX (+5 V) WRITE ENABLE DRIVE SELECT (+5 V) WRITE DATA DISK CHANGE TRACK 0 WRITE PROTECT MOTOR ON READ DATA DIRECTION DENSITY SELECT SIDE 1 SELECT PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ...

  • Page 156: Internal Com4 Connector (Cn15)

    D.12 Internal COM4 Connector (CN15) Table D-12: Internal COM4 connector (CN15) Signal Signal Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 157: Eide Hard Disk Drive Connector (Cn16)

    D.13 EIDE Hard Disk Drive Connector (CN16) Table D-13: EIDE hard disk drive connector (CN16) Signal Signal IDE RESET # DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1...

  • Page 158: Cd-Rom Connector (Cn18)

    D.14 CD-ROM Connector (CN18) Table D-14: CD-ROM connector (CN18) Signal Signal Audio_L Audio_R IDE RESET # DATA8 DATA7 DATA9 DATA6 DATA10 DATA5 DATA11 DATA4 DATA12 DATA3 DATA13 DATA2 DATA14 DATA1 DATA15 DATA0 HDD DREQ IO READ IO WRITE HD READY HD ACK 0 # IRQ 15 ADDR1...

  • Page 159: Cpu Fan Power Connector (Fan1)

    D.15 CPU Fan Power Connector (FAN1) Table D-15: CPU fan power connector (FAN1) Signal +12 V FAN_DET D.16 System Fan Power Connector (FAN2) Table D-16: Fan power connector (FAN2) Signal +12 V FAN_DET PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 160: Pci/Isa Bus Expansion Connector (Slot1)

    D.17 PCI/ISA Bus Expansion Connector (SLOT1) B 10 A 10 F 10 E 10 B 11 A 11 F 11 E 11 B 12 A 12 F 12 E 12 B 13 A 13 F 13 E 13 B 14 A 14 F 14 E 14...

  • Page 161: Table D-17: Pci/Isa Slot Pin Assignments (Pins A And B)

    Table D-17: PCI/ISA slot pin assignments (Pins A and B) Signal Signal IOCHK IRQ9 DRQ2 -12 V +12 V IORDY SA19 SA18 SA17 SA16 DACK3 SA15 DRQ3 SA14 DACK1 SA13 DRQ1 SA12 SA11 SCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ...

  • Page 162: Table D-18: Pci/Isa Slot Pin Assignments (Pins C And D)

    Table D-18: PCI/ISA slot pin assignments (Pins C and D) Signal Signal SBHE MEM16 LA23 IO16 LA22 IRQ10 LA21 IRQ11 LA20 IRQ12 LA19 IRQ15 LA18 IRQ14 LA17 DACKO MEMR DRQ0 MEMW DACK5 DRQ5 DACK6 SD10 DRQ6 SD11 DACK7 SD12 DRQ7 SD13 SD14 MASTER...

  • Page 163: Table D-19: Pci/Isa Slot Pin Assignments (Pins E And F)

    Table D-19: PCI/ISA slot pin assignments (Pins E and F) Signal Signal INT 1 INT3 INT 2 INT4 PCLK2 GNT2 REQ2 GNT3 PCLK1 REQ3 AD31 AD30 AD29 AD28 AD27 AD26 AD25 AD24 CBE3 AD22 AD23 AD20 AD21 AD18 AD19 AD16 AD17 FRAME IRDY...

  • Page 164: Table D-20: Pci/Isa Slot Pin Assignments (Pins G And H)

    Table D-20: PCI/ISA slot pin assignments (Pins G and H) Signal Signal SERR AD15 CBE1 AD14 AD12 AD13 AD10 AD11 CBEO Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 165: Com2

    D.18 COM2 Table D-21: COM2 Signal RS-232 RS-422 RS-485 DATA- DATA+ PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 166: Appendix E Mounting Instructions

    Mounting Instructions • Introduction • Panel Mounting • Desktop Stand Mounting • Swingarm Stand Mounting Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 167: Introduction

    E.1 Introduction The PPC-153 can be placed as is on a shelf or table, mounted into a panel, or mounted on a customized swingarm or desktop stand. E.2 Panel Mounting E.2.1 Introduction Panel mounting can help system integrators conveniently integrate the panel PC into their system.

  • Page 168: Installation Procedure

    E.2.2 Installation procedure To mount the PPC-153 into a panel: 1. Remove the front panel. There are ten holes located along the four sides of the panel PC. 2. Insert the screws from the front side into the holes and tighten them with the nuts provided.

  • Page 169: Cut-Out Area

    E.2.3 Cut-out area Refer to Figure E-3 below for the locations and dimensions of the cut-out area and mounting holes. Figure E-3: Dimensions of panel mounting holes PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 170: Desktop Stand Mounting

    A unique spring inside the stand enables the panel PC’s vertical tilt to be adjusted about 30 degrees. The stand is available from Advantech Co. Follow these procedures to set up the stand: 1. Remove the rear cover of the panel PC by unscrewing the seven screws.

  • Page 171: Figure E-4: Desktop Stand Mounting

    Rear cover of panel PC Holding plate Top cover Main body Rear cover Base Figure E-4: Desktop stand mounting PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 172: Swingarm Stand Mounting

    Its dimensions are shown in Figure E-5 below, and it is available from Advantech Co., Ltd. Unit: mm Figure E-5: Swingarm stand mounting Appendix E Mounting Instructions Artisan Technology Group - Quality Instrumentation ...
  • Page 173 PPC-153 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

This manual is also suitable for:

Ppc-153

Table of Contents
