General Information This chapter gives background information on the PPC-150 panel PC. • Introduction • How to Use This Manual • Specifications Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

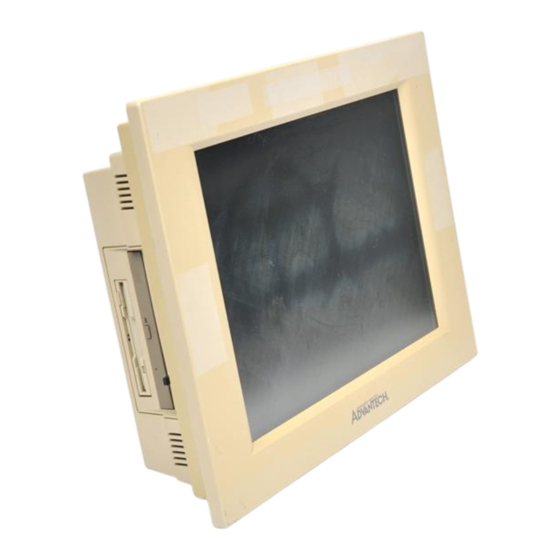

1.1 Introduction ® The PPC-150 panel PC is a multimedia Pentium MMX processor-based computer that is designed to serve as a human machine interface (HMI) and as a desktop computer. It is a PC-based system with 15" color TFT LCD display, on-board PCI Ethernet controller, multi-COM port interfac- es and a 16-bit audio controller.
1.2 How to Use This Manual This manual contains all the information you need to set up and use the panel PC. In addition to this manual, you may also want to consult the manuals for your operating system, software applications and peripherals. Whether you are a new or an experienced user, you will benefit more from this manual if you are familiar with its organization.
Appendix E helps users install the panel PC, which is mountable in a variety of ways. If you are a commercial user and the panel PC unit you bought is a complete set with CPU, hard disk drive, SDRAM, CD-ROM drive, floppy disk drive and PCMCIA expansion slots included, you may only need to read Chapters 1 through 3 regarding hardware operation.
1.3 Specifications General • Dimensions (W x H x D): 420 x 323 x 106 mm (16.54" x 12.72" x 4.17") • Weight: 6.5 kg (14.4 lbs) • Power supply: 80 watts Input voltage: 90 V / 3 A ~ 260V / 1.5A @ 47 ~ 63 Hz Output voltage: +5 V @ 12 A, +12 V @ 1 A •...
• Serial ports: Four serial ports with three RS-232 ports (COM1, 3, and 4), one RS-232/422/485 port (COM2). All ports are compatible with 16C550 UARTs. • Universal serial bus (USB) port: Supports up to two USB ports • PCI/ISA bus expansion slot: Accepts either one ISA card or one PCI bus card •...
PCI bus Ethernet interface • Chipset: Realtek RTL 8139A PCI local bus Ethernet controller • Ethernet interface: Full compliance with IEEE 802.3u 100Base-T and 10 Base-T specifications. Includes software drivers and boot ROM • 100/10Base-T auto-sensing capability Touchscreen (optional) • Type: Analog resistive / SAW(Surface Acoustic Wave) •...
Chapter 2 System Setup Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 35
Note: Some distributors and system integrators may have already pre-installed system software prior to shipment of your panel PC. PPC-150 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 36
Chapter 2 System Setup Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 37
Note: The drivers and utilities used for the PPC-150 panel PCs are subject to change without notice. If in doubt, check Advantech's web site or contact our application engineers for the latest information regarding drivers and utlities. PPC-150 User's Manual...
Chapter 4 Hardware Installation and Upgrading Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 55
Warning! The CPU may be damaged if operated without a heatsink and a fan. Warning! Always disconnect the power cord from your panel PC when you are working on it. Do not make connections while the power is on as sensitive electronic components can be damaged by the sudden rush of power.
NOTE! When you install a new CPU, be sure to adjust the board jumper settings. Improper settings may damage the CPU. (See Chapter 5 for jumper settings.) Chapter 4 Hardware Installation and Upgrading Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Note: The module can fit into the socket only one way. Pin 1 of the DIMM module must line up with the small arrowhead printed on the motherboard next to the DIMM socket. The golden pins of the module must point down into the DIMM socket.
Page 64
Label Function IR connector (Reserved) Flat panel display connector Flat panel display connector Internal COM4 connector Touchscreen power connector Sandisk SSD connector EIDE hard disk driver connector Floppy drive connector CD-ROM connector CPU fan power connector PCI/ISA bus expansion connector Fan power connector AT power connector Internal speaker connector (Reserved)
Page 69
CC (CORE) CC (CORE) CC (CORE) CC (CORE) 1.30 V 1.35 V 1.40 V 1.45 V 1.50 V 1.55 V 1.60 V 1.65 V 1.70 V 1.75 V 1.80 V 1.85 V 1.90 V 1.95 V 2.00 V 2.05 V PPC-150 User's Manual Artisan Technology Group - Quality Instrumentation ...
Page 70
CC (CORE) CC (CORE) CC (CORE) CC (CORE) NONE 2.10 V 2.20 V 2.30 V 2.40 V 2.50 V 2.60 V 2.70 V 2.80 V 2.90 V 3.00 V 3.10 V 3.20 V 3.30 V 3.40 V 3.50 V Chapter 5 Jumper Settings and Connectors Artisan Technology Group - Quality Instrumentation ...
Page 73
Warning: To avoid damaging the computer, always turn off the power supply before setting “Clear CMOS”. Set the jumper back to “3.0 V Battery On” before turning on the power supply. * normal operation Clear CMOS * open = disable (normal operation) closed = Cyrix linear mode PPC-150 User's Manual...
Page 74
* open = normal operation closed = reset system Chapter 5 Jumper Settings and Connectors Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 76
+5 V output +12 V output * RI output +5 V output +12 V output * RI output Chapter 5 Jumper Settings and Connectors Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 77
* 5 V 3.3 V PPC-150 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 78
Maximum Display Maximum Display Resolution Type Resolution Type 1. 1024 x 768 DSTN color 2. 1280 x 1024 TFT color 3. 640 x 480 DSTN color 4. 800 x 600 DSTN color 5. 640 x 480 SHARP TFT color 6. 640 x 480 18-bit TFT color 7.
Page 79
Maximum Display Maximum Display Resolution Type Resolution Type 9. 800 x 600 TFT color 10. 800 x 600 TFT color (44 K BIOS only) 11. 800 x 600 DSTN color 12. 800 x 600 DSTN color (44 K BIOS only) 13.1024 x 768 TFT color 14.
Page 80
* System reset IRQ11 Chapter 5 Jumper Settings and Connectors Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 83
Note 1: The windows illustrations in this chapter are examples only. You must follow the flow chart instructions and pay attention to the instructions which then appear on your screen. Note 2: The CD-ROM drive is designated as "D" throughout this chapter.
Page 94
Important: The following windows illustrations are examples only. You must follow the flow chart instructions and pay attention to the instructions which then appear on your screen. Note 1: The CD-ROM drive is designated as "D" throughout this chapter. Note 2: <Enter>...
Page 107
Note: The CD-ROM drive is designated as "D" throughout this chapter. PPC-150 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 110
Note: The following windows illustrations are examples only. You must follow the flow chart instructions and pay attention to the instructions which then appear on your screen. Chapter 8 Audio Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
This is because the BIOS is revised and updated from time to time. If in doubt, check Advantech's web site for the latest BIOS versions and related information. PPC-150 User's Manual Artisan Technology Group - Quality Instrumentation ...
Note: It is strongly recommended that setup items in this section NOT be changed, because advanced knowledge is required to effect such changes. PPC-150 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Note: Under certain operating systems such as Windoes NT 4.0 (Build 1381), the CD auto-insertion feature might have some effect on power management. It is recommended that the CD-ROM drive use the secondary channel, and that the following Power Management Setup features be set: HDD &...
Page 140
Note 1: The following windows illustrations are examples only. You must follow the flow chart instructions and pay attention to the instructions which then appear on your screen. Note 2: The CD-ROM drive is designated as "D" throughout this chapter. Chapter 10 Touchscreen Artisan Technology Group - Quality Instrumentation ...
Page 156
Appendix A LCD Specifications and Selection Settings Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 157
However, it may contain a few defective pixels which may not always illuminate. With current technology, it is impossible to completely eliminate defective pixels. Advantech is actively working to improve this technology. PPC-150 User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 166
Appendix C Full Disassembly Procedures Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 167
Note: Because of the modular design of the LCD and touch- screen, you do not disassemble the whole system step by step if you would like to replace the defective LCD or touchscreen. You just start disassembling the module from the step 8. Then you can easily remove the LCD and touchscreen by step 9 to step 12.
Page 168
Appendix C Full Disassembly Procedures Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 172
Signal Signal +12 V +12 V SAFE SAFE ENAVEE SHFCLK M/DE ENABKL Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 173
Signal Signal SAFE +5 V Signal Signal PPC-150 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 174
Signal +5 V Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 175
Pin Signal Signal IDE RESET # DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 SIGNAL GND HDD 0 IO WRITE IO READ...
Page 176
Pin Signal Signal IDE RESET # DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 SIGNAL GND HDD 0 IO WRITE IO READ...
Page 177
Signal Signal (+5 V) STEP INDEX (+5 V) WRITE DATA DRIVE SELECT (+5 V) WRITE DATA DISK CHANGE TRACK 0 WRITE PROTECT MOTOR ON READ DATA DIRECTION DENSITY SELECT SIDE 1 SELECT PPC-150 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 182
Signal Signal INT 1 INT3 INT 2 INT4 PCLK2 GNT2 REQ2 GNT3 PCLK1 REQ3 AD31 AD30 AD29 AD28 AD27 AD26 AD25 AD24 CBE3 AD22 AD23 AD20 AD21 AD18 AD19 AD16 AD17 FRAME IRDY CBE2 DEVSEL TRDY LOCK STOP PERR Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ...
Page 183
Signal Signal SERR AD15 CBE1 AD14 AD12 AD13 AD10 AD11 CBEO PPC-150 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 184
Signal +12 V Signal +5 V +12 V -12 V -5 V +5 V +5 V +5 V Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 185
Signal Speaker out_L Speaker out_R Signal +12 V ENABKL Brightness Adj. +5 V PPC-150 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 186
6 7 8 9 Signal RS-232 RS-422 RS-485 DATA- DATA+ Appendix D Pin Assignments Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 189
Note: The panel thickness should not exceed 10 mm. PPC-150 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 190
Note: The panel thickness should not exceed 10 mm. Appendix E Mounting Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 191
Note: The base of the stand has two plastic caps. If you pry off the caps, you can attach the stand to your desktop using the two screw holes. PPC-150 User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 192
Appendix E Mounting Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
