Summary of Contents for Advantech PCI-1756
- Page 1 (217) 352-9330 | Click HERE Find the Advantech PCI-1756 at our website:...

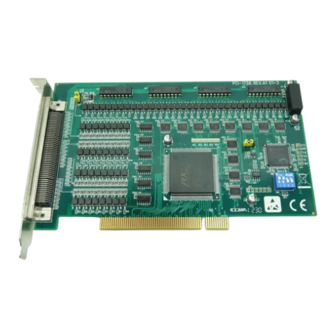

- Page 2 User Manual PCI-1756 64-ch Isolated Digital I/O PCI Card...
- Page 3 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 5 Don't touch any components on the CPU card or other cards while the PC is on. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive elec- tronic components. PCI-1756 User Manual...
-
Page 6: Table Of Contents
Chapter Installation..........9 Unpacking ....................10 Driver Installation ..................11 Figure 2.1 Setup Screen of Advantech Automation Software ... 11 Figure 2.2 DAQNavi Installation Setup Screen......12 Hardware Installation ................13 Device Setup & Configuration ..............14 Figure 2.3 The Device Setting of PCI-1756 ....... 14 Figure 2.4 The Digital I/O Setting Page ........ - Page 7 Table A.1: Register Functions ........... 27 Appendix B Block Diagrams......... 29 Block Diagrams..................30 Appendix C ADAM-3951 Pin Assignment.... 31 ADAM-3951 Pin Assignment ..............32 Figure C.1 Connect to PCL-10250 CON1........32 Figure C.2 Connect to PCL-10250 CON2........33 PCI-1756 User Manual...
- Page 8 Chapter Introduction This chapter introduces the PCI- 1756 cards and their typical appli- cations. Sections include: Features Applications Installation Guide Software Overview Device Driver Roadmap Accessories...
-
Page 9: Chapter 1 Introduction
The PCI-1756 can durably withstand a voltage up to 2,500 VDC, preventing your host system from any incidental harms. Wide Input Range The PCI-1756 has a wide range of input voltage from 10 to 50 V , and it is suitable for most industrial applications with 12 V and 24 V input voltage. -
Page 10: Applications
Board ID Setting The PCI-1756 has a built-in DIP switch that helps define each card’s ID when multi- ple cards have been installed on the same PC chassis. The board ID setting function is very useful when users build their system with multiple PCI-1756 cards. With cor- rect Board ID settings, you can easily identify and access each card during hardware configuration and software programming. -
Page 11: Installation Guide
Installation Guide Before you install your PCI-1756 card, please make sure you have the following nec- essary components: PCI-1756 DAQ Card PCI-1756 Startup or User Manual Driver Software Advantech DAQNavi software (included in DVDROM) Wiring Cable PCL-10250 or PCL-101100M (optional) ... -
Page 12: Software Overview
Software Overview Advantech offers a rich set of DLL drivers, third-party driver support and application software to help fully exploit the functions of your PCI-1756 card: DAQNavi software (on the companion DVD-ROM) LabView driver Advantech DAQ tools Programming choices for DA&C cards... -
Page 13: Daqnavi Device Driver Programming Roadmap
1.6.2 Programming with DAQNavi Device Drivers Function Library Advantech DAQNavi device drivers offer a rich function library that can be utilized in various application programs. This function library consists of numerous APIs that support many development tools, such as Visual Studio .Net, Visual C++, Visual Basic and Borland Delphi. -
Page 14: Accessories
Accessories Advantech offers a complete set of accessory products to support the PCI-1756 card. These accessories include: Wiring Cables PCL-10250 The PCL-10250 is a 100-pin SCSI to two 50-pin SCSI shielded cable that specially designed for PCI-1756 card. It should be used with ADAM- 3951 wiring board. - Page 15 PCI-1756 User Manual...
-
Page 16: Chapter 2 Installation
Chapter Installation This chapter provides a packaged item checklist, proper instructions for unpacking and step-by-step procedures for both driver and card installation. Sections include: Unpacking Driver Installation Hardware Installation Device Setup & Configuration... -
Page 17: Unpacking
Unpacking After receiving your PCI-1756 package, please inspect its contents first. The package should contain the following items: PCI-1756 DAQ Card StartUp or User Manual Companion DVD-ROM with DAQNavi drivers included. The PCI-1756 card harbor certain electronic components vulnerable to electrostatic discharge (ESD). -
Page 18: Driver Installation
Driver Installation We recommend you install the driver before you install the PCI-1756 card into your system, since this will guarantee a smooth installation process. The Advantech DAQNavi Device Drivers Setup program for the PCI-1756 card is included in the companion DVD-ROM that is shipped with your DA&C card package. - Page 19 For further information on driver-related issues, an online version of the DAQNavi SDK Manual is available by accessing the following path: Start/Programs/Advantech Automation/DAQNavi/DAQNavi Manuals/ DAQNavi SDK Manual Note! You can always get the latest DAQNavi device drivers and SDK from the Advantech Support Portal: http://support.advantech.com.tw/support/ default.aspx PCI-1756 User Manual...
-
Page 20: Hardware Installation
Touch the metal part on the surface of your computer to neutralize the static electricity that might be on your body. Insert the PCI-1756 card into a PCI slot. Hold the card only by its edges and carefully align it with the slot. Insert the card firmly into place. Use of excessive force must be avoided;... -
Page 21: Device Setup & Configuration
APIs of DAQNavi device drivers. It also provides the programming reference, user guides and video tutorials. Setting Up the Device To install the I/O device for your card, you must first run the Advantech Naviga- tor program (by accessing Start/Programs/ Advantech Automation/DAQNavi/ Advantech Navigator). - Page 22 Please go to the Digital Input/Output page to configure your device. Here you can set the DI interrupt trigger edge, enable/disable the Channel-Freeze func- tion and also the DO ports initial status of PCI-1756. Figure 2.4 The Digital I/O Setting Page...
- Page 23 After your card is properly installed and configured, you can go to the Device Test page to test your hardware by using the testing utility supplied. Figure 2.5 The Device Testing of PCI-1756 For more detailed information, please refer to the DAQNavi SDK Manual or the User Interface Manual in the Advantech Navigator.
-
Page 24: Chapter 3 Signal Connections
Chapter Signal Connections This chapter provides useful information about how to connect input and output signals to the PCI-1756 cards via the I/O connec- tor. Sections include: Overview Switch and Jumper Settings Signal Connections Field Wiring Considerations... -
Page 25: Overview
This chapter provides useful information about how to connect input and output signals to the PCI-1756 cards via the I/O connector. Switch and Jumper Settings Please refer to Figure 3.1 for jumper and switch locations on PCI-1756. Figure 3.1 Connector and Switch Locations PCI-1756 User Manual... -
Page 26: Board Id (Sw1)
3.2.1 Board ID (SW1) The PCI-1756 have a built-in DIP switch (SW1), which is used to define each card’s board ID. When there are multiple cards on the same chassis, this board ID switch is useful for identifying each card’s device number. After setting for each PCI-1756, you can identify each card in system with different device numbers. -
Page 27: Power On Configuration(Jp1)
3.2.3 Channel-Freeze Function (JP2) The PCI-1756 provides the channel-freeze function for isolated digital output chan- nels. When Channel-Freeze function is enabled, all ports on the card will be locked so that the data transmitted (from the host PC) to the card won’t be transferred to the DO ports. -
Page 28: Signal Connections
Signal Connections Pin Assignment The I/O connector on the PCI-1756 is a 100-pin connector that enable you to connect to accessories with the PCL-10250 or PCL-101100M shielded cable. Figure 3.2 shows the pin assignments for the 100-pin I/O connector on the PCI-1756, and Table 3.4 shows its I/O connector signal description. -
Page 29: I/O Connector Pin Definition
Meaning that you can apply positive or negative voltage to an isolated input pin (V ). Every 16 input channels share one common pin. Figure 3.3 shows how to connect an external input source to one of the card’s isolated input channels. Figure 3.3 Isolated Digital Input Connection PCI-1756 User Manual... -
Page 30: Isolated Digital Output
Figure 3.4 Isolated Digital Output Connection 3.3.4 Channel-Freeze Function The PCI-1756 provides a digital input channel (CH_FRZ_IN) to enable the channel- freeze function. The channel-freeze function acts when the pin CH_FRZ_IN is acti- vated. Moreover, you can setup the input mode of channel-freeze function input channel CH_FRZ_IN as dry contact input mode or wet contact input mode selected by on-board jumper JP2. -
Page 31: Field Wiring Considerations
Figure 3.6 Wiring in dry contact input mode Field Wiring Considerations When you use PCI-1756 cards to acquire data from outside, noises in the environ- ment might significantly affect the accuracy of your measurements if due cautions are not taken. The following measures will be helpful to reduce possible interference run- ning signal wires between signal sources and the PCI-1756 card. -
Page 32: Appendix A Specifications
Appendix Specifications... -
Page 33: Isolated Digital Input
0 ~ +60° C (32 ~ 140° F) Operation (refer to IEC 68-2-1,2) Temperature Storage -20 ~ +70° C (-4 ~ 158° F) Relative Humidity 5 ~ 95% RH non-condensing (refer to IEC 60068-2-3) Certification CE Class A certified PCI-1756 User Manual... -
Page 34: Register Table
Register Table Register Format of PCI-1756. Table A.1: Register Functions Base Addr. + Hex Isolated Digital Input Group 0 IDI7 IDI6 IDI5 IDI4 IDI3 IDI2 IDI1 IDI0 Isolated Digital Input Group 0 IDI15 IDI14 IDI13 IDI12 IDI11 IDI10 IDI9 IDI8... - Page 35 Table A.1: Register Functions Group 1 Interrupt Control Register INT1/E L1/E Group 1 Interrupt Control Register INT1/E L1/E Board ID Register BOID3 BOID2 BOID1 BOID0 Channel Freeze Function Control Register Channel Freeze Function Control Register PCI-1756 User Manual...
-
Page 36: Block Diagrams
Appendix Block Diagrams... -
Page 37: Block Diagrams
Block Diagrams PCI-1756 User Manual... -
Page 38: Adam-3951 Pin
Appendix ADAM-3951 Pin Assignment... -
Page 39: Adam-3951 Pin Assignment
ADAM-3951 Pin Assignment Please refer to Figure C.1 and Figure C.2 for the pin assignments if you select Advantech ADAM-3951 as your wiring board for connecting to PCL-10250 and PCI- 1756. Figure C.1 Connect to PCL-10250 CON1 PCI-1756 User Manual... - Page 40 Figure C.2 Connect to PCL-10250 CON2 PCI-1756 User Manual...
- Page 41 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2015...
