Advantech PCI-1752USO Startup Manual

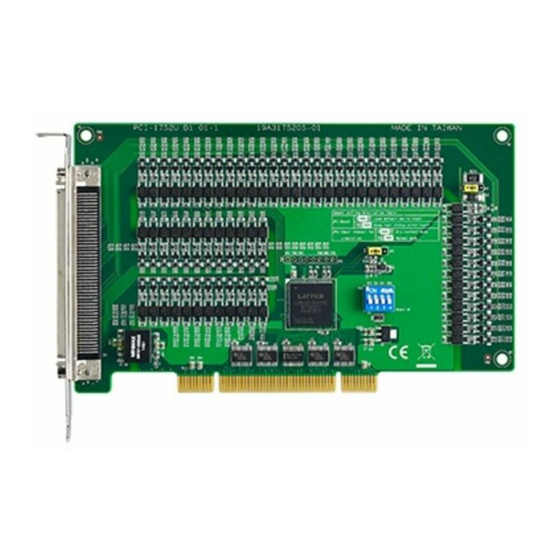

PCI-1752USO
64-channel Isolated Digital Output Card
Packing List
Before installation, make sure that you have received the
following:
• PCI-1752USO card
• Driver CD
• Quick Start User Manual
If anything is missing or damaged, contact your distributor or
sales representative immediately.
User Manual
For more detailed information on this product, please refer
to the PCI-1752USO User Manual on the CD-ROM (PDF
format).
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause interference in which case the user is
required to correct interference at his own expense.
CE
This product has passed the CE test for environmental
specifications when shielded cables are used for external
wiring. We recommend the use of shielded cables. This kind
of cable is available from Advantech. Please contact your
local supplier for ordering information.
Notes
For more information on this and other Advantech products,
please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCI-1752USO
Part No: 2003175220
1 Startup Manual
1st Edition
March 2016
Overview
The PCI-1752USO offers 64 isolated output channels. With
isolation protection of 2,500 V
for industrial applications where high voltage protection is
required.
Specifications
Isolated Digital Output
Number of Channels
Optical Isolation
Opto-isolator response time
Supply Voltage
Source Current
General
I/O Connector Type
100-pin SCSI-II female
Dimensions
175 mm x 100 mm ( 6.8" x 3.9" )
+5V@ 230 mA(typical)
Power Consumption
+5v@ 500 mA(max.)
Temperature Operation 0 ~ +60°C (32~ 140°F )
Storage
Relative Humidity 5 ~ 95% RH non-condensing
(refer to IEC 60068-2-3)
Certification
CE Class A certified
*Response time depends on the computer hardware archi-
tecture and software environment. The rates may vary due to
programming language, code efficiency, CPU utilization and
so on.
, the PCI-1752USO is ideal
DC
64
2,500 VDC
100 μs*
5 to 40 VDC
200 mA max./channel
-20 ~ 70°C (-4 ~158°F)
