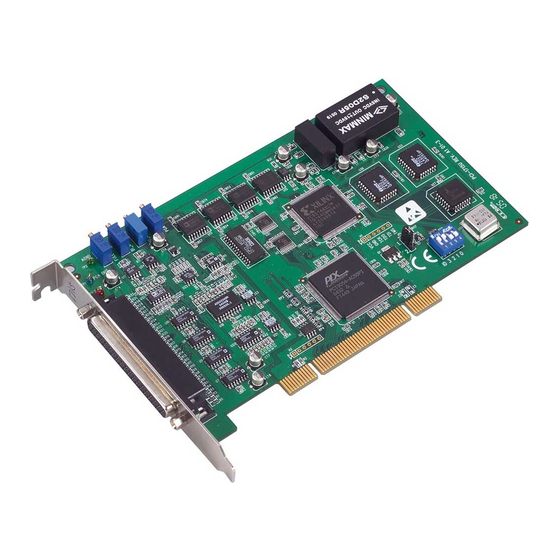

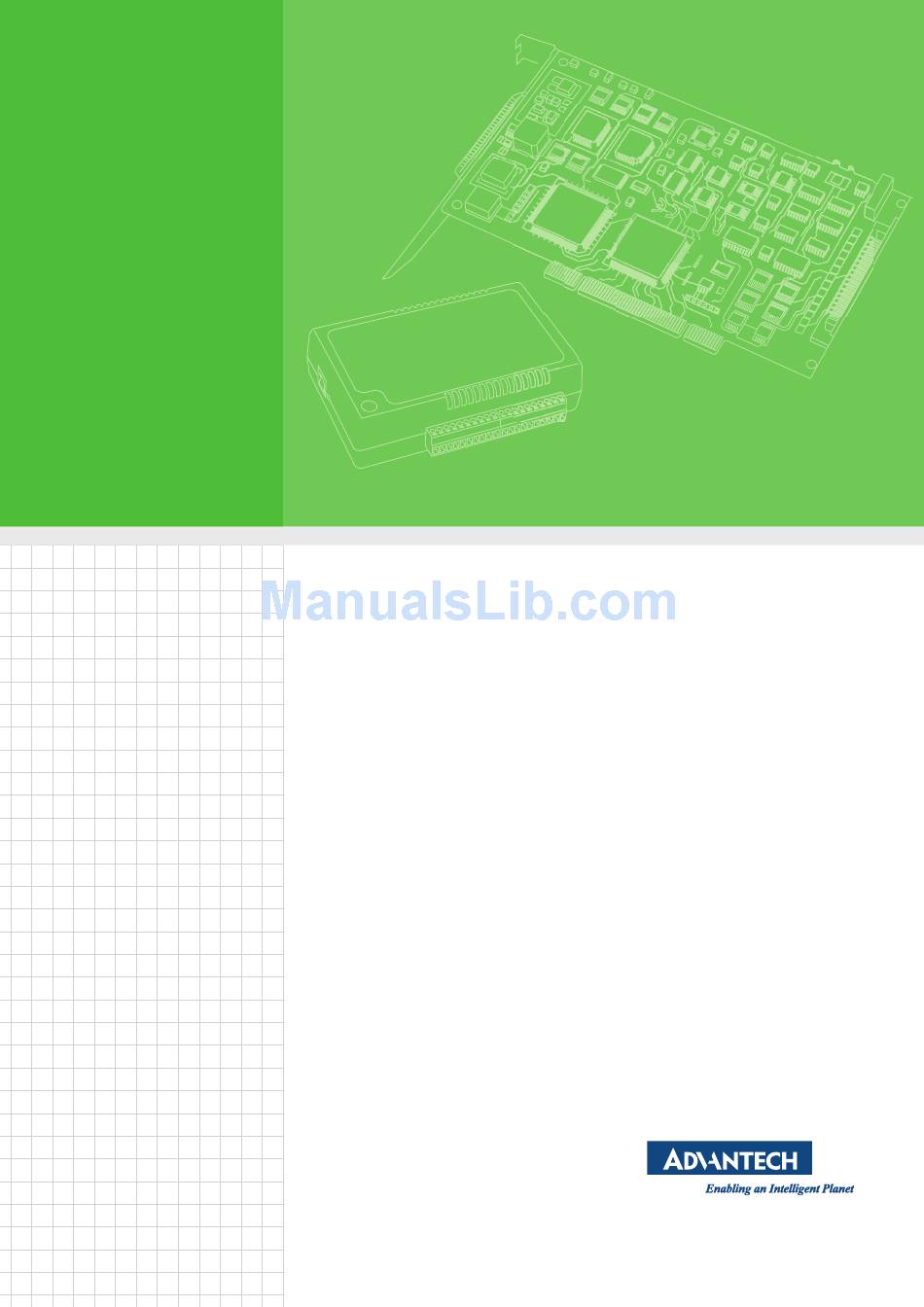

- Page 1 User Manual PCI-1752U 64-ch Isolated Digital Output PCI Card...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. - Page 4 Don't touch any components on the CPU card or other cards while the PC is on. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive elec- tronic components. PCI-1752U User Manual...
-
Page 5: Table Of Contents
Unpacking ....................10 Hardware Installation ................11 Device Setup & Configuration ..............12 Figure 2.1 The Device Setting of PCI-1752U ......12 Figure 2.2 The Digital I/O Setting Page ........13 Figure 2.3 The Device Testing of PCI-1752U......14 Chapter Signal Connections ......15... - Page 6 Appendix B Block Diagrams......... 27 Block Diagrams..................28 Appendix C ADAM-3951 Pin Assignment.... 29 ADAM-3951 Pin Assignment ..............30 Figure C.1 Connect to PCL-10250 CON1........30 Figure C.2 Connect to PCL-10250 CON2........31 PCI-1752U User Manual...
- Page 7 Chapter Introduction This chapter introduces the PCI- 1752U cards and their typical applications. Sections include: Features Applications Installation Guide Software Overview Device Driver Roadmap Accessories...
-
Page 8: Chapter 1 Introduction
All these merits make PCI-1752U the best choice for industrial applications. Board ID Setting The PCI-1752U has a built-in DIP switch that helps define each card’s ID when multi- ple cards have been installed on the same PC chassis. The board ID setting function is very useful when users build their system with multiple PCI-1752U cards. -
Page 9: Applications
When the system has undergone a hot reset (i.e. without turning off the system power), the PCI-1752U can either retain outputs values of each channel, or return to its default configuration as open status, depending on its on-board jumper setting. -
Page 10: Software Overview
Figure 1.1 Installation Flow Chart Software Overview Advantech offers a rich set of DLL drivers, third-party driver support and application software to help fully exploit the functions of your PCI-1752U card: DAQNavi software (on the companion DVD-ROM) LabView driver ... -
Page 11: Daqnavi Device Driver Programming Roadmap
Borland Delphi For instructions on how to begin programming works in each development tool, Advantech offers Tutorial Chapter in the DAQNavi SDK Manual for your reference. Please refer to the corresponding sections in this chapter on the DAQNavi SDK Man- ual to begin your programming efforts. -
Page 12: Programming With Daqnavi Device Drivers Function Library
1.6.2 Programming with DAQNavi Device Drivers Function Library Advantech DAQNavi device drivers offer a rich function library that can be utilized in various application programs. This function library consists of numerous APIs that support many development tools, such as Visual Studio .Net, Visual C++, Visual Basic and Borland Delphi. - Page 13 PCI-1752U User Manual...
- Page 14 PCI-1752U User Manual...
-
Page 15: Chapter 2 Installation
Chapter Installation This chapter provides a packaged item checklist, proper instructions for unpacking and step-by-step procedures for both driver and card installation. Sections include: Unpacking Hardware Installation Device Setup & Configuration... -
Page 16: Unpacking
Unpacking After receiving your PCI-1752U package, please inspect its contents first. The pack- age should contain the following items: PCI-1752U DAQ Card StartUp or User Manual Companion DVD-ROM with DAQNavi drivers included. The PCI-1752U card harbor certain electronic components vulnerable to electrostatic discharge (ESD). -
Page 17: Hardware Installation
Touch the metal part on the surface of your computer to neutralize the static electricity that might be on your body. Insert the PCI-1752U card into a PCI slot. Hold the card only by its edges and carefully align it with the slot. Insert the card firmly into place. Use of excessive force must be avoided;... -
Page 18: Device Setup & Configuration
APIs of DAQNavi device drivers. It also provides the programming reference, user guides and video tutorials. Setting Up the Device To install the I/O device for your card, you must first run the Advantech Naviga- tor program (by accessing Start/Programs/ Advantech Automation/DAQNavi/ Advantech Navigator). -
Page 19: Figure 2.2 The Digital I/O Setting
Please go to the Digital Input/Output page to configure your device. Here you can set the DI interrupt trigger edge, enable/disable the Channel-Freeze func- tion and also the DO ports initial status of PCI-1752U. Figure 2.2 The Digital I/O Setting Page... -
Page 20: Figure 2.3 The Device Testing Of Pci-1752U
After your card is properly installed and configured, you can go to the Device Test page to test your hardware by using the testing utility supplied. Figure 2.3 The Device Testing of PCI-1752U For more detailed information, please refer to the DAQNavi SDK Manual or the User Interface Manual in the Advantech Navigator. -
Page 21: Chapter 3 Signal Connections
Chapter Signal Connections This chapter provides useful information about how to connect input and output signals to the PCI-1752U cards via the I/O con- nector. Sections include: Overview Switch and Jumper Settings Signal Connections Field Wiring Considerations... -
Page 22: Overview
This chapter provides useful information about how to connect input and output signals to the PCI-1752U cards via the I/O connector. Switch and Jumper Settings Please refer to Figure 3.1 for jumper and switch locations on PCI-1752U. Figure 3.1 Connector and Switch Locations PCI-1752U User Manual... -
Page 23: Board Id (Sw1)
3.2.1 Board ID (SW1) The PCI-1752U have a built-in DIP switch (SW1), which is used to define each card’s board ID. When there are multiple cards on the same chassis, this board ID switch is useful for identifying each card’s device number. After setting for each PCI-1752U, you can identify each card in system with different device numbers. -
Page 24: Power On Configuration(Jp1)
3.2.3 Channel-Freeze Function (JP2) The PCI-1752U provides the channel-freeze function for isolated digital output chan- nels. When Channel-Freeze function is enabled, all ports on the card will be locked so that the data transmitted (from the host PC) to the card won’t be transferred to the DO ports. -
Page 25: Signal Connections
Signal Connections Pin Assignment The I/O connector on the PCI-1752U is a 100-pin connector that enable you to con- nect to accessories with the PCL-10250 or PCL-101100M shielded cable. Figure 3.2 shows the pin assignments for the 100-pin I/O connector on the PCI- 1752U, and Table 3.4 shows its I/O connector signal description. -
Page 26: I/O Connector Pin Definition
Please note that the current through each IDO channel should not exceed 200 mA. Figure 3.3 Isolated Digital Output Connection PCI-1752U User Manual... -
Page 27: Channel-Freeze Function
3.3.3 Channel-Freeze Function The PCI-1752U provides a digital input channel (CH_FRZ_IN) to enable the channel- freeze function. The channel-freeze function acts when the pin CH_FRZ_IN is acti- vated. Moreover, you can setup the input mode of channel-freeze function input channel CH_FRZ_IN as dry contact input mode or wet contact input mode selected by on-board jumper JP2. -
Page 28: Field Wiring Considerations
Field Wiring Considerations When you use PCI-1752U cards to acquire data from outside, noises in the environ- ment might significantly affect the accuracy of your measurements if due cautions are not taken. The following measures will be helpful to reduce possible interference run- ning signal wires between signal sources and the PCI-1752U card. -
Page 29: Appendix A Specifications
Appendix Specifications... -
Page 30: Isolated Digital Output
0 ~ +60° C (32 ~ 140° F) Operation (refer to IEC 68-2-1,2) Temperature Storage -20 ~ +70° C (-4 ~ 158° F) Relative Humidity 5 ~ 95% RH non-condensing (refer to IEC 60068-2-3) Certification CE Class A certified PCI-1752U User Manual... -
Page 31: Register Table
Register Table Register Format of PCI-1752U (IO space = 64 bytes) Table A.1: Register Functions Base Addr. + Hex Isolated Digital Output Group 0 Read Back IDO7 IDO6 IDO5 IDO4 IDO3 IDO2 IDO1 IDO0 Digital Output Group 0 IDO7 IDO6... - Page 32 Board ID Register BOID3 BOID2 BOID1 BOID0 Channel Freeze Function Control Register Channel Freeze Function Control Register PCI-1752U User Manual...
-
Page 33: Block Diagrams
Appendix Block Diagrams... -
Page 34: Block Diagrams
Block Diagrams PCI-1752U User Manual... -
Page 35: Assignment
Appendix ADAM-3951 Pin Assignment... -
Page 36: Adam-3951 Pin Assignment
ADAM-3951 Pin Assignment Please refer to Figure C.1 and Figure C.2 for the pin assignments if you select Advantech ADAM-3951 as your wiring board for connecting to PCL-10250 and PCI- 1752U. Figure C.1 Connect to PCL-10250 CON1 PCI-1752U User Manual... -
Page 37: Figure C.2 Connect To Pcl-10250 Con2
Figure C.2 Connect to PCL-10250 CON2 PCI-1752U User Manual... - Page 38 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2015...
