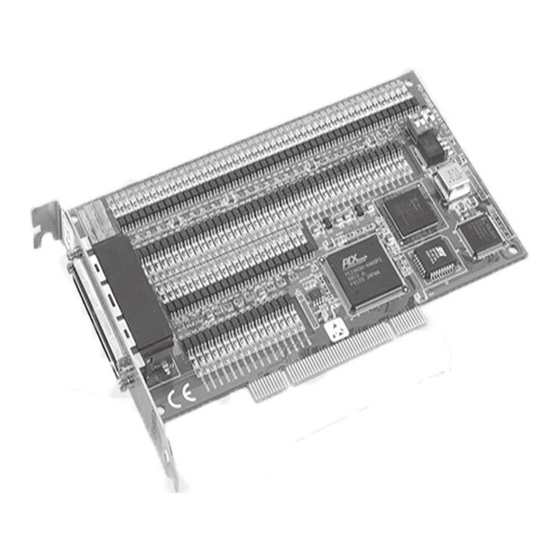

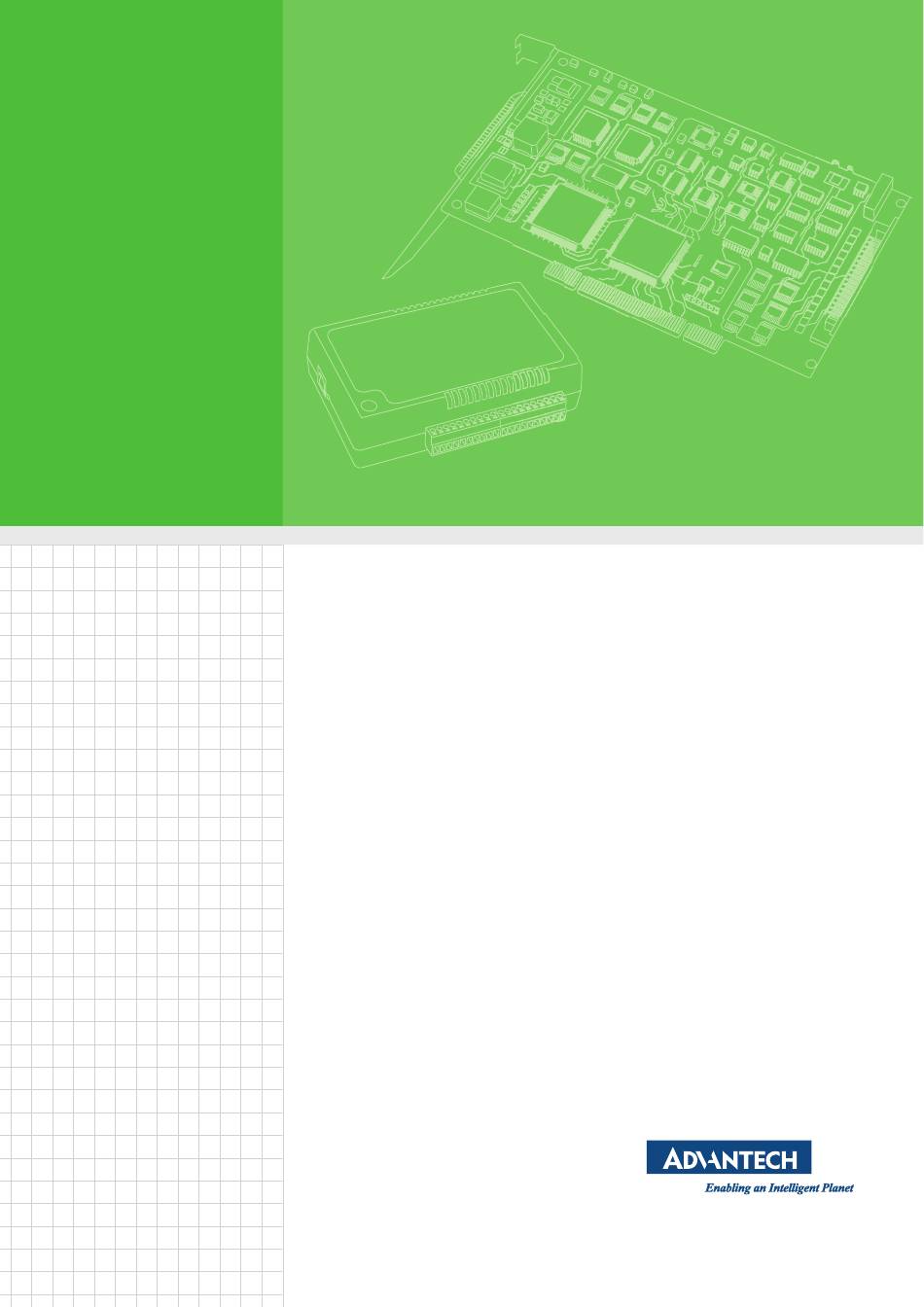

- Page 1 User Manual PCI-1758 Series 128-Channel Isolated Digital I/O Card...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 4 PC is powered on. Disconnect the power before implementing any configuration changes. A sud- den rush of power after connecting a jumper or installing a card may damage sensitive electronic components. PCI-1758 Series User Manual...
-
Page 5: Table Of Contents
Figure 3.8 Isolated Digital Output Connection ......20 Field Wiring Considerations ..............20 Appendix A Specifications ........21 Isolated Digital Input (PCI-1758UDI & PCI-1758UDIO) ......22 Isolated Digital Output (PCI-1758UDO & PCI-1758UDIO)...... 22 General ....................23 Power Consumption................23 PCI-1758 Series User Manual... - Page 6 Appendix B Block Diagrams......... 25 Block Diagrams ..................26 PCI-1758 Series User Manual...
- Page 7 Chapter Introduction This chapter introduces the PCI- 1758 series cards and their typical applications. Features Applications Installation Guide Software Overview Device Driver Roadmap Accessories...
-
Page 8: Chapter 1 Introduction
2,500 V , preventing your host system from harm. Wide Input Range The PCI-1758 series accepts a wide range of input voltage, from 5 to 25 V , and it is suitable for most industrial applications with 12 V and 24 V input voltage. -
Page 9: Applications
Board ID Setting The PCI-1758 series has a built-in DIP switch that defines each card’s ID when multi- ple cards have been installed in the same PC chassis. The board ID setting function is very useful when users build systems with multiple PCI-1758 series cards. With correct Board ID settings, you can easily identify and access each card during hard- ware configuration and software programming. -
Page 10: Installation Guide
Installation Guide Before installing a PCI-1758 series card, ensure that you have the following neces- sary components: 1 x PCI-1758 Series DAQ card 1 x PCI-1758 Series user manual Advantech DAQNavi driver software 2 x PCL-101100S-1E/PCL-101100S-2E/PCL-101100S-3E cable (optional) ... -
Page 11: Software Overview
Software Overview Advantech offers a comprehensive set of DLL drivers and third-party driver support and application software to fully exploit the functions of PCI-1758 series cards. These include DAQNavi software LabView driver Advantech DAQ tools Programming DA&C Cards Advantech application software, such as Advantech DAQNavi software can be used for programming PCI-1758 series cards. -
Page 12: Programming With Daqnavi Device Drivers Function Library
To troubleshoot a device driver error, check the error code and error description in the “Error Control” section for the specific function in the DAQNavi SDK manual. Accessories Advantech offers a complete range of accessories to support PCI-1758 series cards. These accessories include Wiring Cables PCL-101100S-1E, PCL-101100S-2E, PCL-101100S-3E ... -
Page 13: Chapter 2 Installation
Chapter Installation This chapter details the packing list, unpacking instructions, and driver and card installation proce- dures. Unpacking Driver Installation Hardware Installation... -
Page 14: Unpacking
PC. Driver Installation Driver installation should be completed before the PCI-1758 series card is installed in the system to ensure problem-free installation. The Advantech DAQNavi drivers for PCI-1758 series cards can be downloaded from the Advantech Support Portal at http://support.advantech.com/support/new_de-... -
Page 15: Hardware Installation
Touch a metal surface of the computer to neutralize any static electricity that may be in your body. Insert the PCI-1758 series card into a PCI slot. Hold the card by its edges only and carefully align it with the slot. Push the card firmly to insert the card in the slot. - Page 16 PCI-1758 Series User Manual...
-
Page 17: Chapter 3 Signal Connections
Chapter Signal Connections This chapter explains how to con- nect input and output signals to PCI-1758 series cards via the I/O connector. Overview Card Layout Switch and Jumper Settings Signal Connections Field Wiring Considerations... -
Page 18: Overview
PC and other hardware devices. This chapter provides useful information about how to connect input and output signals to PCI-1758 series cards via the I/O connector. Card Layout Figures 3.1 to 3.3 show the connector, jumper, and switch locations on PCI-1758 series cards. -
Page 19: Switch And Jumper Settings
3.3.1 Board ID (SW1) PCI-1758 series cards feature a built-in DIP switch (SW1) that is used to define each card’s board ID. When multiple cards are installed on the same chassis, the board ID switch is useful for identifying each card’s device number. After installing each card, users can differentiate them using their board ID. -
Page 20: Digital Output State After Hot Reset (Jp1)
3.3.2 Digital Output State After Hot Reset (JP1) The default status of the PCI-1758 series cards' digital output after a system power on is OPEN to protect external devices from damage. JP1 determines whether the last output value is retained after a hot system reset. Table 3.2 shows the jumper positions for power on configuration. -
Page 21: Signal Connections
Signal Connections Pin Assignments The PCI-1758 series cards feature two 100-pin connectors that allow users to inte- grate accessories using a PCL-101100S shielded cable. Figure 3.4 to 3.6 show the pin assignments of the I/O connectors on the PCI-1758 series cards. The I/O connector signal descriptions are presented in Table 3.3. - Page 22 Figure 3.5 PCI-1758UDI I/O Connector Pin Assignments PCI-1758 Series User Manual...
- Page 23 Figure 3.6 PCI-1758UDO I/O Connector Pin Assignments PCI-1758 Series User Manual...
-
Page 24: I/O Connector Pin Definition
OFF and ON state logic levels, the result is undetermined, which may be low or high. User should ensure the ON/OFF state voltages of the sensors or switches meet the required values. Do not input a voltage higher than the maximum value of ON PCI-1758 Series User Manual... -
Page 25: Isolated Digital Output
EMF which may damage the device. Every four digital output channels are equipped with one polyswitch to limit the load current. Do not exceed the load current value specified in Appendix A Specifications for proper operations. PCI-1758 Series User Manual... -
Page 26: Field Wiring Considerations
Figure 3.8 Isolated Digital Output Connection Field Wiring Considerations When using PCI-1758 series cards to acquire data from an outdoor environment, noises in the environment can significantly affect the accuracy of measurements if due cautions are not taken. The following measures can help reduce possible inter- ference on signal wires connecting signal sources to the PCI-1758 series card. -
Page 27: Appendix A Specifications
Appendix Specifications... -
Page 28: Isolated Digital Input (Pci-1758Udi & Pci-1758Udio)
PCI-1758UDO: 128 (16 ports) Number of Output Channels PCI-1758UDIO: 64 (8 ports) 2500 V Optical Isolation Opto-Isolator Response Time 100 µs 5 ~ 40 V Supply Voltage 350mA max./channel @25 °C Sink Current 250mA max./channel @60 °C PCI-1758 Series User Manual... -
Page 29: General
5 V@ 50mA Typical 12 V @ 20mA 12 V @ 20mA 12 V @ 20mA 5 V@ 425mA 5 V@ 220mA 5 V@ 385mA Max. 12 V @ 325mA 12 V @ 250mA 12 V @ 250mA PCI-1758 Series User Manual... - Page 30 PCI-1758 Series User Manual...
- Page 31 Appendix Block Diagrams...
- Page 32 Block Diagrams PCI-1758UDIO PCI-1758UDI PCI-1758UDO PCI-1758 Series User Manual...
- Page 33 PCI-1758 Series User Manual...
- Page 34 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2020...
