Summary of Contents for Eliminator Lighting PAR38EL

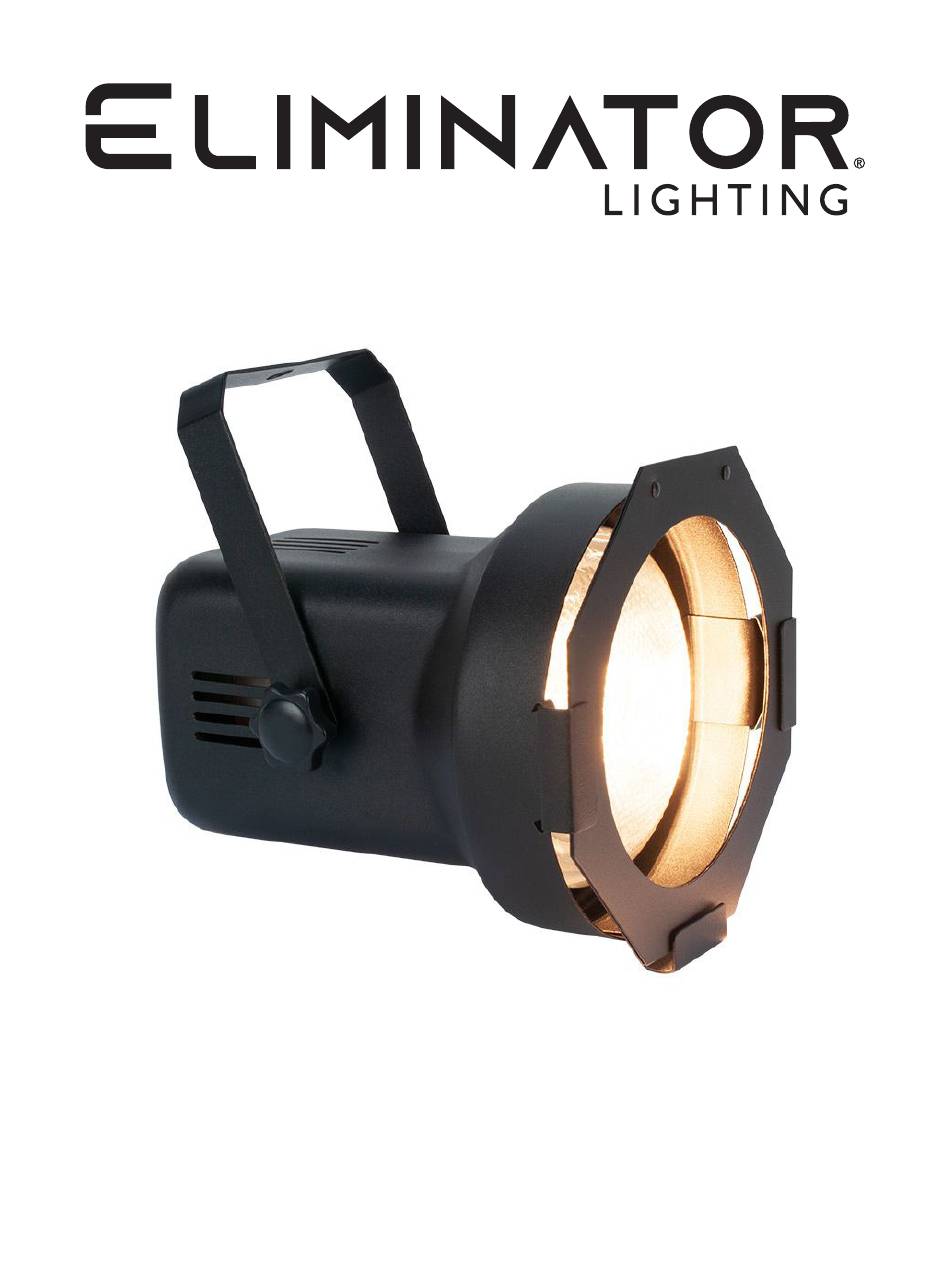

- Page 1 PAR38EL User Manual...
- Page 2 All non-Eliminator brands and product names are trademarks or registered trademarks of their respective companies. Eliminator Lighting and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Warranty Returns Safety Guidelines Maintenance Guidelines Overview Installation Lamp Replacement | Trouble Shooting | Frequently Asked Questions Specifications | Dimensional Drawings... -
Page 4: General Information
G E N E R A L I N F O R M AT I O N INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate this product. These instructions contain important safety and use information. UNPACKING This product has been thoroughly tested and has been shipped in perfect condition. -
Page 5: Limited Warranty (Usa Only)
ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the Eliminator Lighting factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Eliminator Lighting will pay return shipping charges only to a designated point within the United States. -
Page 6: Warranty Returns
WA R R A N T Y R E T U R N S All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 7: Safety Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this man- ual. Eliminator Lighting is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. - Page 8 S A F E T Y G U I D E L I N E S • DO NOT TOUCH fixture housing during operation. • Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before performing any repairs or maintenance.
-
Page 9: Maintenance Guidelines
M A I N T E N A N C E G U I D E L I N E S DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! CLEANING Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. -
Page 10: Overview
O V E R V I E W INCLUDED ITEMS: (x1) Metal Par Can with Power Cord (x1) LL-Par 38 Lamp (x1) Socket (x1) Gel Frame Power Light Lamp Cord Housing (LL-Par 38) 6-Point Knob Gel Frame Holder Yoke / Mounting Bracket... -
Page 11: Installation
I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING Keep devices minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THIS DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, INCLUDING CALCULATING WORKING LOAD LIMITS, KNOWLEDGE OF INSTALLATION MATERIAL BEING USED, AND... - Page 12 I N S TA L L AT I O N AIMING THE LIGHT SOURCE Experiment with different angles and distances before mounting the light in its final position in order to achieve the desired result. MOUNTING LIGHT SOURCE The light can be mounted onto a truss using a properly rated clamp (not included), or to a flat surface using the mounting hole on the top of the bracket/yoke.
-
Page 13: Lamp Replacement | Trouble Shooting | Frequently Asked Questions
L A M P R E P L A C E M E N T Make sure light is disconnected from the power source, and allow 15 minutes for the fixture to cool if has been operating. Remove the gel frame, then unscrew bulb by turning counter clockwise. Replace bulb and reassemble the fixture. -
Page 14: Specifications | Dimensional Drawings
S P E C I F I C AT I O N S • Black metal Par 38 Par Can • Includes: hanging bracket, power cord, gel frame and halogen lamp • Replacement Lamp: Lamp Lite LL-PAR 38 (150W, 110V) •... - Page 15 This page intentionally left blank.
