Eliminator Lighting Electro Panel 192 User Manual

Electro
Panel 192
CAUTION! Please read and
understand these instructions
before installing or operating
this unit.
Caution! Never open unit when in use.
Always disconnect main power before
replacing fuse. Remember to always
replace with the exact same type fuse.
1 Year Limited Warranty:
1 year limited warranty covers manufacturing defects only. Serial number, place of purchase with
dated valid receipt must be submitted at time of service. Eliminator Lighting warranty does not cover
items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty
is only valid with-in the United States.
©Eliminator® Los Angeles, CA. - www.EliminatorLighting.com

SPECIFICATIONS:

Model:
LEDs:
Weight:
Size:
Fuse:
Supply Voltage:
Working Position:
Duty Cycle:
DMX Channels:
Colors:
Warranty:

Operating Instructions:

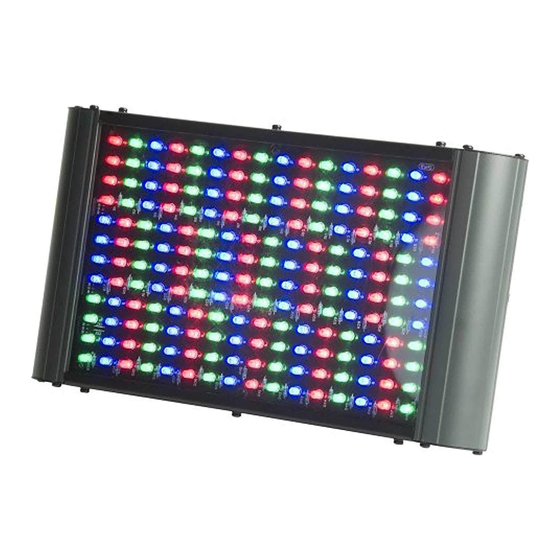

The Electro Panel 192 has been tested at the
factory, there is no assembly required. The
unit is ready to be plugged into a power out-
let. This unit is a 7 channel DMX intelligent
LED par can. It can be run as a stand-alone,
static unit DMX controlled unit, or in a Master/
Slave configuration. While in Stand Alone or
a Master/Slave configuration, you can run
the auto mode. For stand-alone mode, and
Master/Slave configuration settings, see other
side.
Eliminator Lighting warranty is valid from the date of purchase. Our
Electro Panel 192
192 - 64 Red, 64 Green,
& 64 Blue
4.6lbs./ 2.1kgs.
7.12" (H) x 12.41" (W) x
4.5" (D)
2 Amp
120V
Any Safe position
None

6 DMX Channel Modes:

1, 2, 3, 4, 6, or 7 DMX
Channels
Multiple Colors
1 Year
