OLED Screen

The OLED screen displays information about the tool and error codes in the event of abnormal operation (See
Troubleshooting). Insert battery, then press and release trigger to turn ON the screen. Use the right and left buttons
to cycle through the displays.
To change Units or User Profile:
1. Press and hold both buttons (Fig.1) after cycling to correct display. (See Table 3)
2. Cycle through menu with right button (Fig.1).
3. Press and release trigger confirm selection (Fig.2).
The screens will not cycle after the remote is paired with the tool.
CURRENT USER : 1
SINGLE CLICK

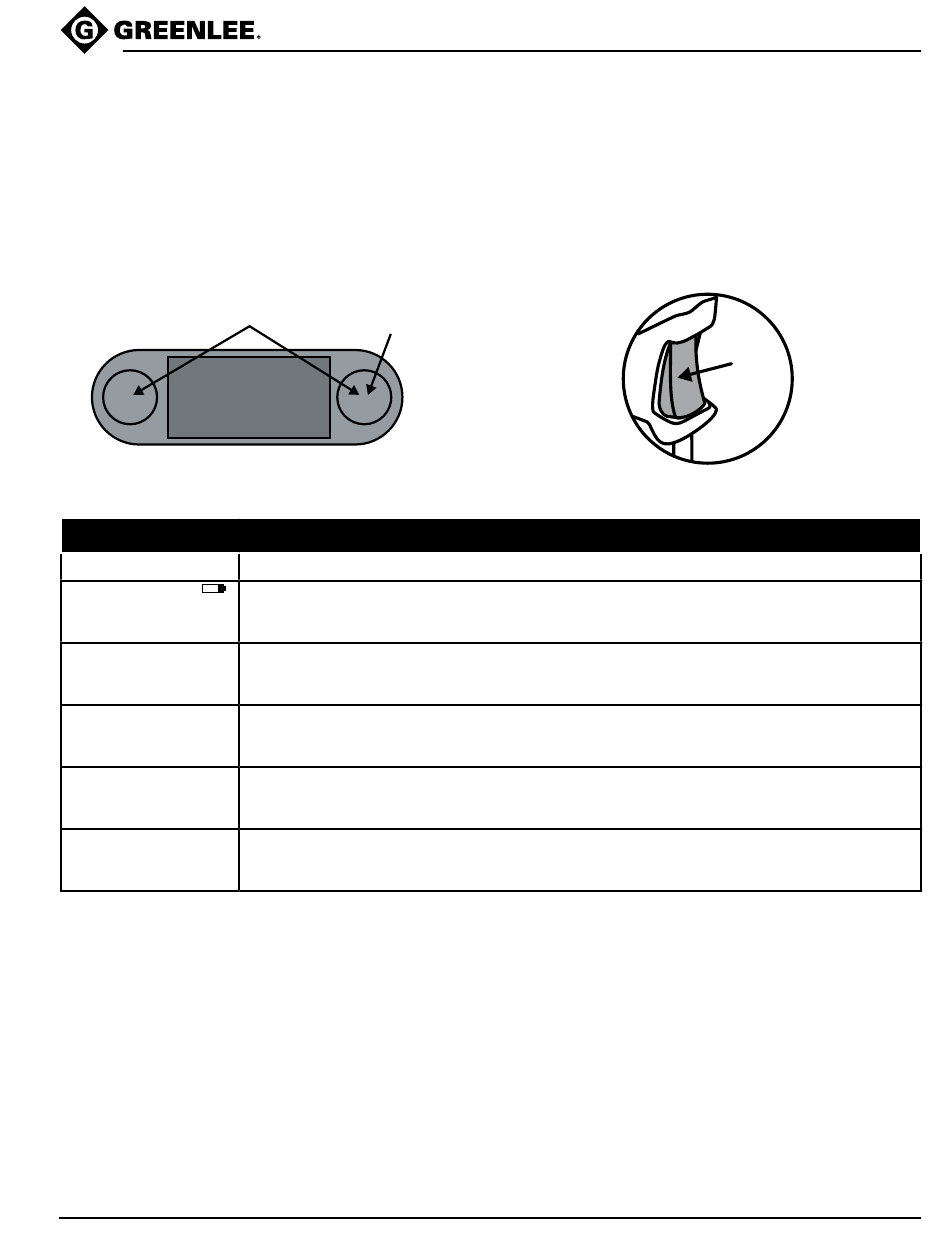

Figure 1
Display
P XXX PSI
^
P XXX PSI
INFO
FW: 2.0
123456AB001
CURRENT USER : 1
DOUBLE CLICK
MRS+
#ODS #DAYS
TOTAL:
t= 1.35 h
Q= 8.87 Ah
n= 1560
300100034 REV 00
1
2
Table 3: OLED Screen
Choose Remote and Double Click profiles in this screen. This profile will stay selected, ON or OFF, until changed.
© 2023 Greenlee Tools, Inc.
Information Shown
Wireless Status; Battery Charge;
Current Pressure; Maximum Pressure.
Units can be changed between XXX and PSI in this screen.
Firmware Version & Serial Number
Current User Profile
Number of Tool Cycles
Number of Days Until Next Service
Total Elapsed Operating Hours (t)
Total Ah used (Q)
Total Number of Cycles Since Date of Manufacture (n)
EK425LXR
3
Figure 2
