molex 64005-6400 Specification Sheet

Air powered crimp tool head avikrimp

Advertisement

Quick Links

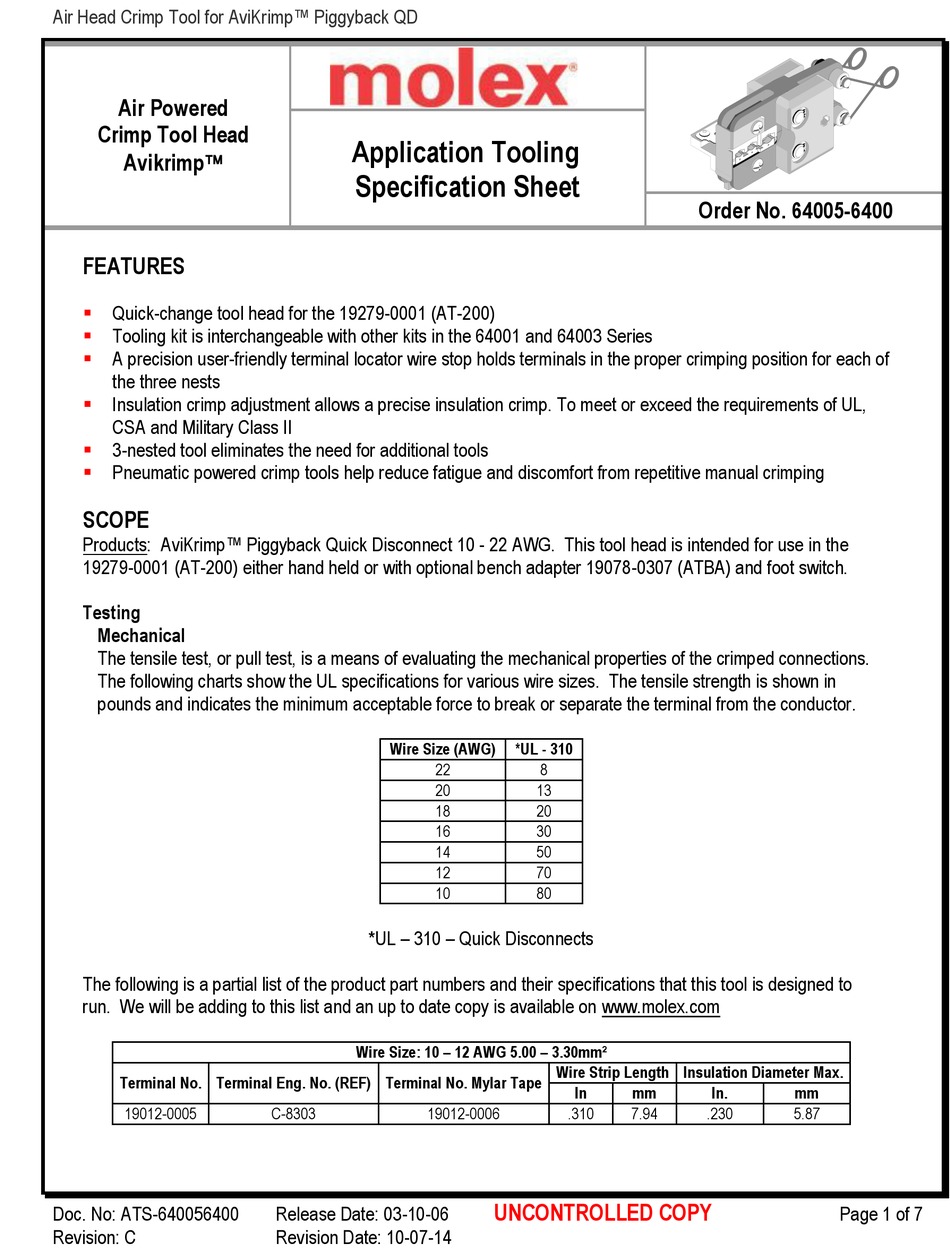

Air Head Crimp Tool for AviKrimp™ Piggyback QD
Air Powered
Crimp Tool Head
Avikrimp

FEATURES

Quick-change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position for each of
the three nests
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL,
CSA and Military Class II
3-nested tool eliminates the need for additional tools
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping

SCOPE

Products: AviKrimp™ Piggyback Quick Disconnect 10 - 22 AWG. This tool head is intended for use in the
19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.

Testing

Mechanical

The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in
pounds and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to
run. We will be adding to this list and an up to date copy is available on www.molex.com
Terminal No. Terminal Eng. No. (REF) Terminal No. Mylar Tape
19012-0005
Doc. No: ATS-640056400
Revision: C
Application Tooling
Specification Sheet
Wire Size (AWG)
22
20
18
16
14
12
10
*UL – 310 – Quick Disconnects
Wire Size: 10 – 12 AWG 5.00 – 3.30mm²
C-8303
19012-0006
Release Date: 03-10-06
Revision Date: 10-07-14
*UL - 310
8
13
20
30
50
70
80
Wire Strip Length Insulation Diameter Max.
In
mm
.310
7.94
UNCONTROLLED COPY
Order No. 64005-6400
In.
mm
.230
5.87
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 64005-6400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for molex 64005-6400

  • Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com Wire Size: 10 – 12 AWG 5.00 – 3.30mm²...
  • Page 2 Air Head Crimp Tool for AviKrimp™ Piggyback QD Wire Size: 14 – 16 AWG 2.00 – 1.30mm² Wire Strip Length Insulation Diameter Max. Mylar Tape Terminal No. Terminal Eng. No. (REF) Terminal No. 19012-0003 BB-8302 19012-0004 .310 7.94 .140 3.56 19012-0031 19012-0031 19012-0032...
  • Page 3 See Figure 2 and 3. Cycle the tool. 5. Remove the crimp and inspect for proper crimp location, and check for insulation closure. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer.
  • Page 4 30 days. Should such a defect occur, we would repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals, applicators and tooling. UNCONTROLLED COPY Doc.
  • Page 5 Air Head Crimp Tool for AviKrimp™ Piggyback QD PARTS LIST Item Order No Description Quantity 64005-6400 Crimp Tool Head Figure 5 64005-0000 Basic Air Tool Head 64001-6275 Locator Assembly 64001-6470 Tooling Kit Tooling Kit Only 64001-6401 Conductor Punch 64001-6402 Conductor Anvil...
  • Page 6 Air Head Crimp Tool for AviKrimp™ Piggyback QD Parts List (Continued) Item Order No. Description Quantity 64005-0000 Basic Air Tool Head Figure 6 64005-0103 Nose Guard 64000-0077 Repair Kit (Springs, Rods Pivots ,Rings, and Washers) M4 by 12 Long Freedrive Pan Head Screw M4 by 30 Long Freedrive Pan Head Screw 3/16”...
  • Page 7 Technician _______________________- Date of Calibration __________________- Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc. No: ATS-640056400 Release Date: 03-10-06 Page 7 of 7...
