110-347V AC Standard Wiring with Multi-Tap Transformer
(Power Brick)
Only for use in instances where a solar powered tower is being converted
to line powered unit.

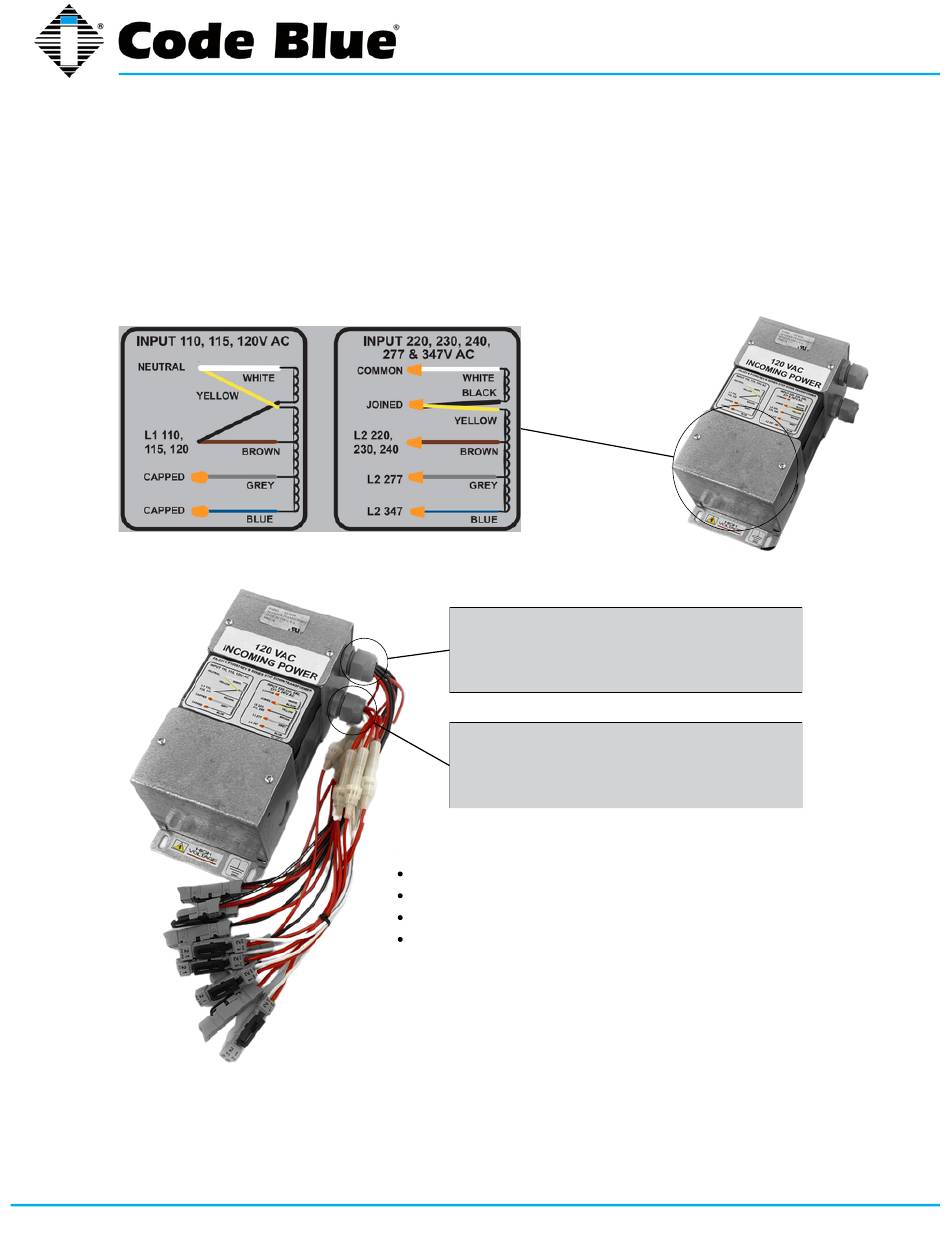

Incoming power connection configurations:
Output Options:
Code Blue • 259 Hedcor Street
Fused outputs come pre-labeled to assist in connecting the
following equipment:
Remaining outputs can be used for accessory equipment
selected at time of ordering.
• Holland, MI 49423 USA • 800.205.7186
Red/Black Wires - 24V AC @ 5 Amps
5 x Fused Outputs
Red/White Wires - 12V DC @ 5 Amps
5 x Fused Outputs
Faceplate speakerphone (12V DC ONLY)
Faceplate Light
Beacon Strobe
Area Light
• www.codeblue.com
CB 1-w Solar Tower
Admin Guide
Incoming
Power
Connections
Located
Inside
GU-168-E
