Solar Audio Paging Amp Connetcion - Code Blue CB 1-w Admin Manual

Solar Audio Paging Installation (continued)
Solar Audio Paging Amp Connection
4 Connections From Amp
Black & Red 2 Conductor Wire w/ Female Wago Connector – Connect to
Amp on 5 Way Manifold
Black Wire w/ 7 Pin Connector – Connect to 7 Pin Input on Phone Board (See
Figure 2 for phone inputs)
Gray 4 Pin RJ 11 Cable- Connect to PAS Audio Input on Phone Board. (See
Figure 2 for phone inputs)
Black & Red 4 Conductor Wire w/ Male Wago Connector - Connect to
Amp/Speaker wire that is pre-installed inside the unit. (See Figure 3 for pre-
installed wire)

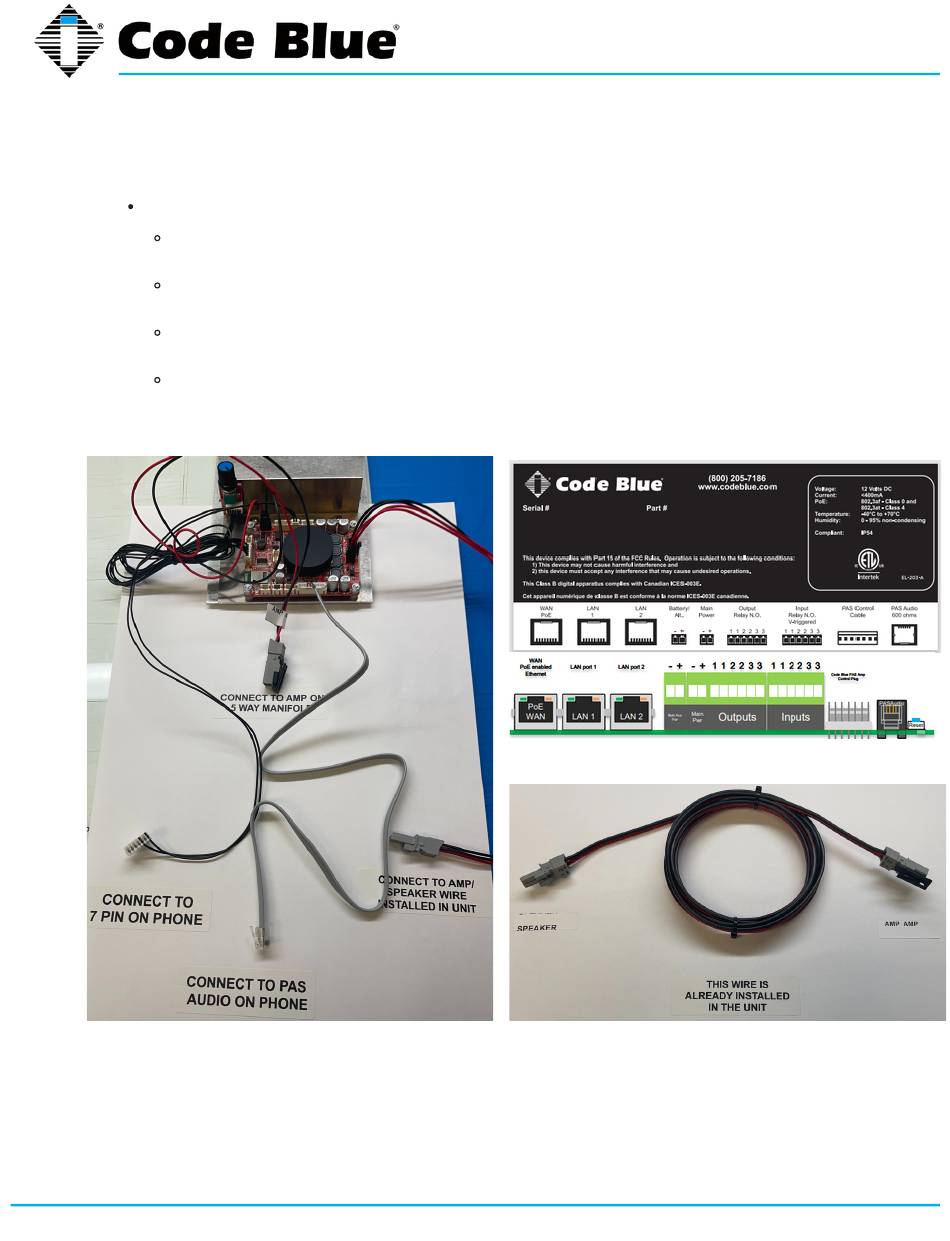

Figure 1 - Amp Connections
