Anchor Bolt Kit Instructions

1. FOUNDATION
2. PULL WIRING
IMPORTANT:
• Wire gauge must be selected to meet code for voltage/current required for the product to
operate correctly: Minimum 14 AWG.
• Conduit used must comply to National Electrical Standards as observed locally.
Code Blue • 259 Hedcor Street

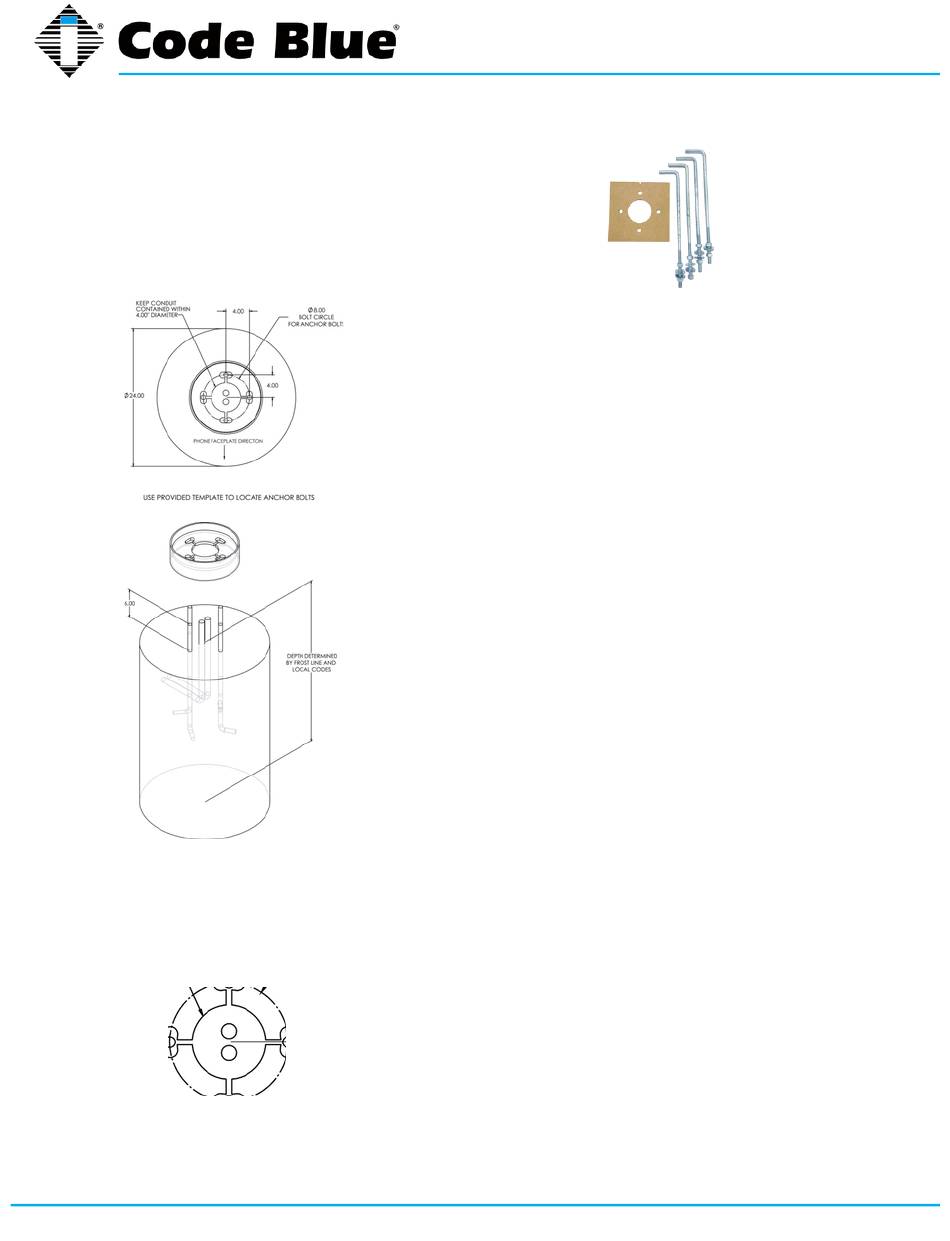

1.1 Run Conduit
Electrical and telephone line conduit, with a maximum
combined diameter of four inches, should be run up
through the center of the foundation hole. A minimum
of four inches and a maximum of six inches of conduit
above the finished grade level is required. To ensure
proper grounding, a ½-inch x 8-foot copper rod should
be inserted in the center of the foundation and tied to
the steel pedestal.
NOTE: Follow all national and local codes governing this installation.
1.2 Pour the Foundation
The foundation should be at least 24 inches in
diameter and to the correct depth for the frost line in
your area, with a mini- mum depth of at least three
feet (follow local building codes for foundations).
1.3 Set the Anchor Bolts in the Wet Foundation
Four 24-inch L-shaped anchor bolts and an aligning
template are supplied for anchoring the Code Blue
unit. The bolts should be set into the foundation so
that six inches are left showing above the finished
grade level. The anchor bolts should be aligned, using
the supplied template in such a way that the phone
faceplate on the unit face in the desired direction.
2.1 Pull Power and Phone Line up through Conduits
A minimum of two feet of wire must be available from
the con- duit for electrical and communications wiring.
NOTE: Communications wire must be shielded phone line. The
phone line must be pulled into the unit using a separate conduit
from the power. Along with a service loop of wire, as noted by the
NEC standards.
