CB 1-w Solar Tower
Admin Guide
Cellular Communication Wiring & Antenna Installation (continued)

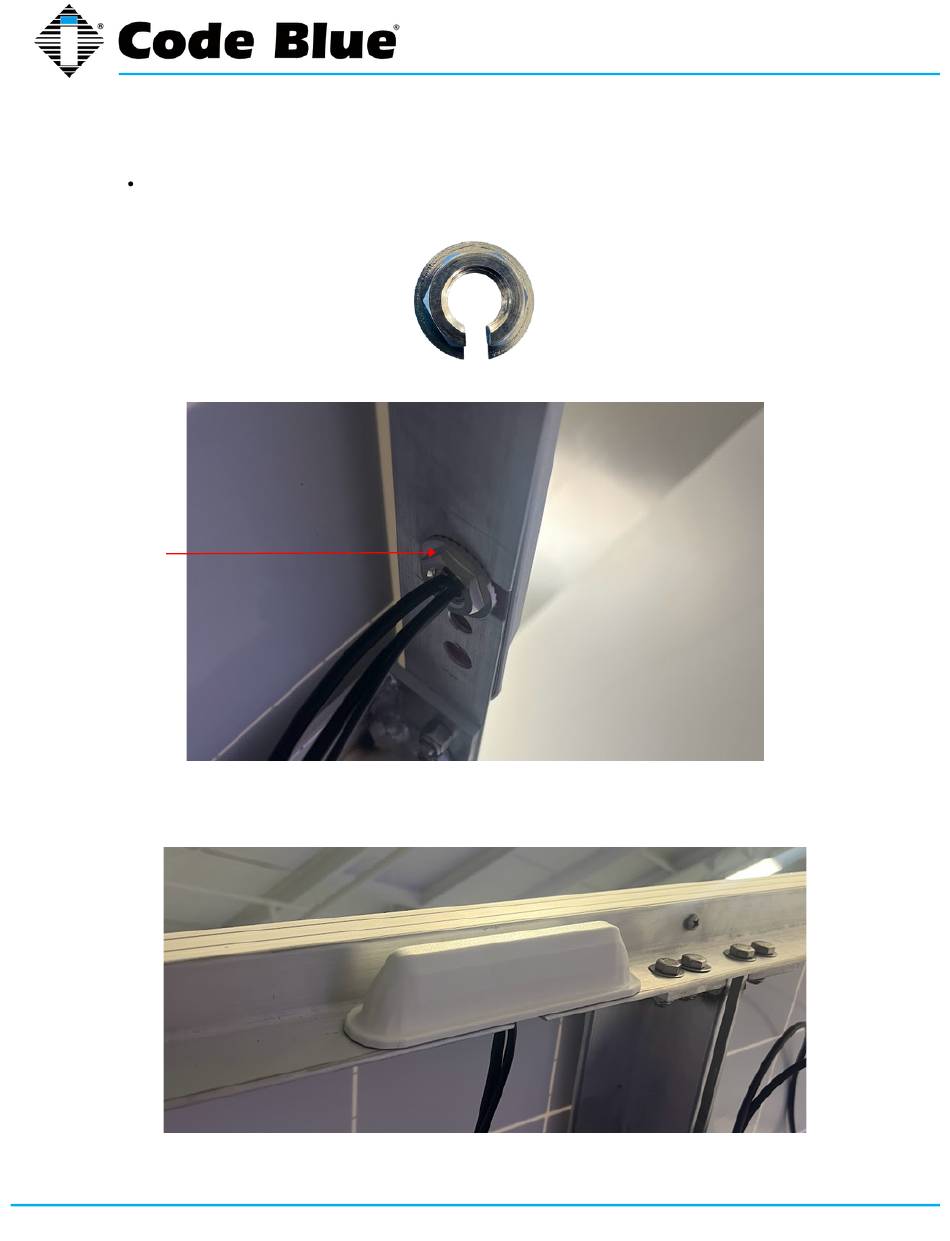

Slip-On Lock Nut - Slide the supplied slip-on locking nut(Figure 7) around the cables, &
secure it tightly to the threaded stud on the antenna.
Figure 7
Slip-On Lock Nut
The antenna assembly should appear as pictured below when complete.
Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
page 26 of 53
GU-168-E
