Solar Panel Bracket Installation

NOTE: If installing the optional Solar Audio Paging Array, the following steps take place
on top of speaker array housing after attaching it to the tower by using the previous
instructions, instead of on the top of the CB 1-w tower itself.
Attach the aluminum solar panel base mount to the tower – Align the solar panel
base gasket over the 3 coordinating holes on the tower. Place the solar panel base
mount on top of the gasket. Install a combination washer (rubber, then metal) on
each of the three 5/8 bolts with Loctite treated threads. Secure the bolts tightly to
ensure proper attachment. See Fig. 1.
NOTE: Completely coat Loctite around the threads. Loctite MUST dry for 24 hours
before being exposed to moisture.
NOTE: Each time the bolts are removed, they must be retreated with the Loctite PST.
Metal Washer
Rubber Washer
Apply Loctite to
threads of nut
Code Blue • 259 Hedcor Street
Hex Bolt
Figure 1
Figure 2
• Holland, MI 49423 USA •

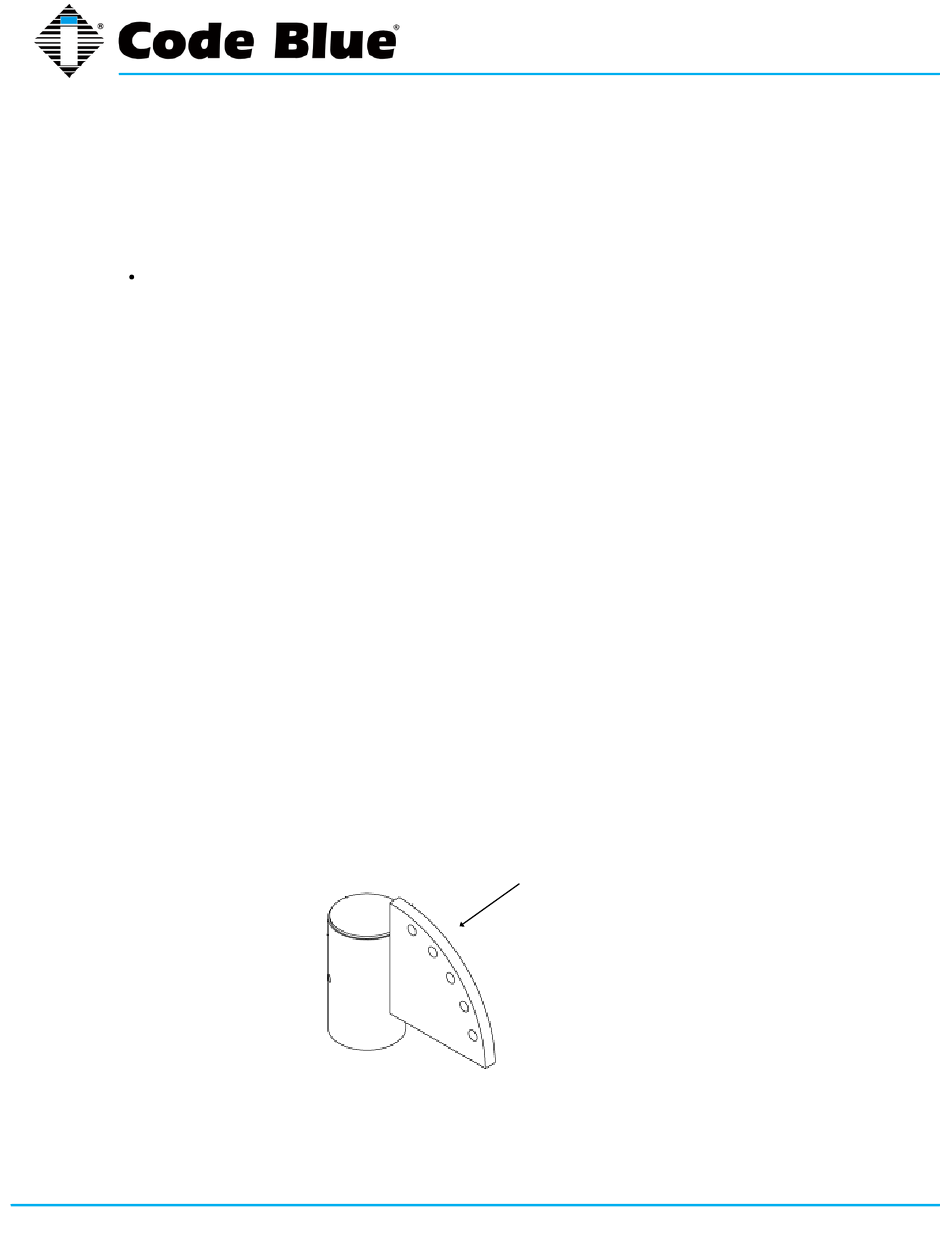

Solar Panel Mounting Bracket
