Solar Power Installation (continued)

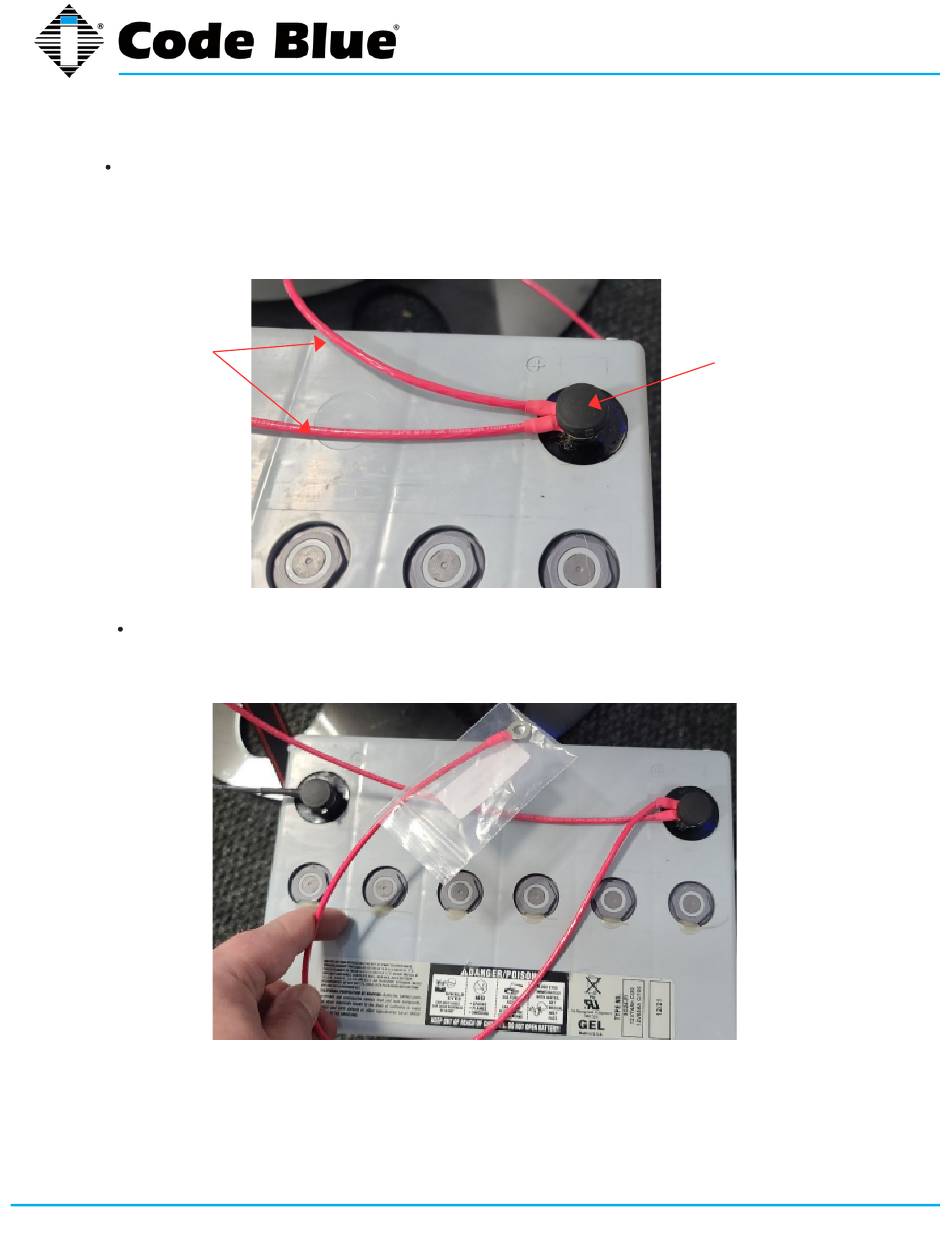

Connect battery leads and terminal covers – Attach the battery leads, starting with
the battery terminal that will be the lowest inside the unit. Once the leads are
secured, attach the battery terminal covers to prevent shorting against the inside of
the tower.
NOTE: Two positive cables need to be connected to the terminal. One will connect to
the second battery & the other to the solar charge controller.
Battery Leads
Protect the bare connector of the connected battery cable - It is recommended that
the exposed connectors of the installed battery cables are covered to prevent
shorting on the inside of the tower.
(Continued on next page)
